Nema 11 External Linear Stepper Motor Actuator Bipolar 1.8 Deg 0.75A 5V Lead Revolution 1.27mm/0.05" Lead Screw 250mm
- All Treats No Tricks
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till November 4th, 2024
- Note:No coupon code needed, please place order directly!

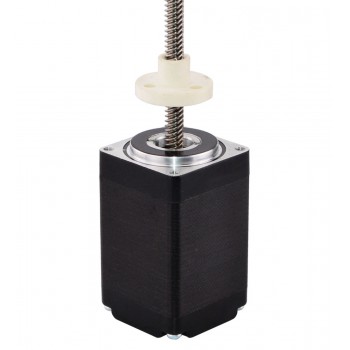

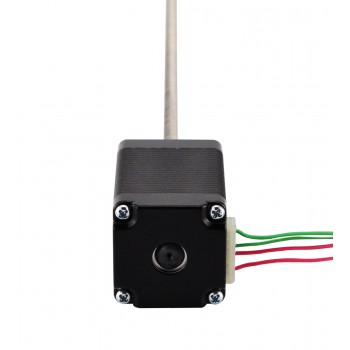

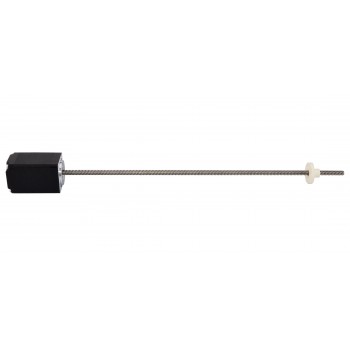

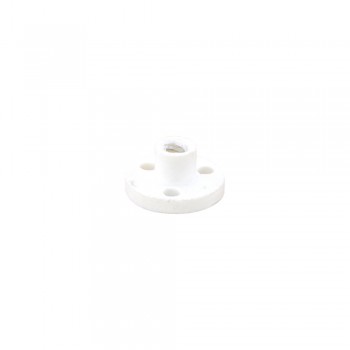

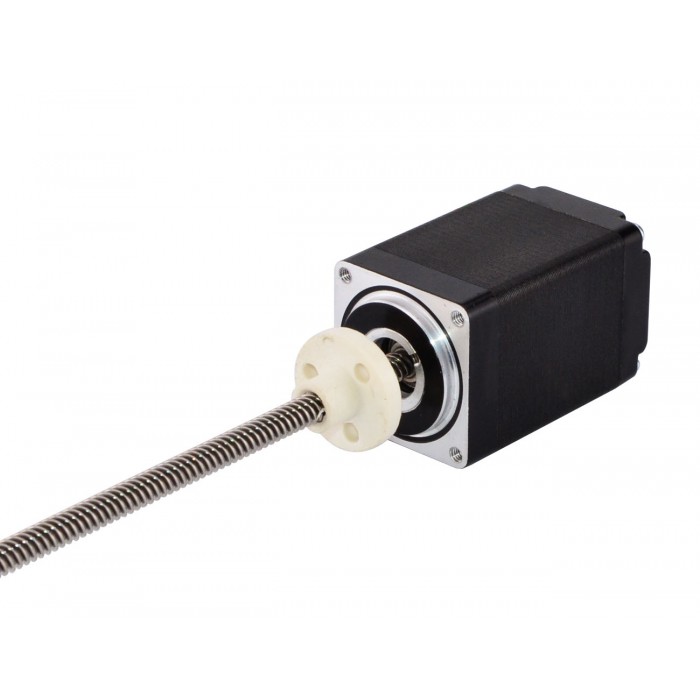

This model is almost exactly same as Haydon Kerk 28000 series size 11 double stack external stepper motor linear actuator. The motor part is 46mm body 1.8 degree 0.75A Nema 11 stepper motor, and it has integrated with a 4.76mm (0.1874") diameter 250mm (9.8425") length lead screw and a POM screw nut, the linear travel is 1.27mm (0.05") per revolution.
Electrical Specification
Manufacturer Part Number: 11LS18-07549-250E
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 59N (300pps)
Rated Current/phase: 0.75A
Phase Resistance: 6.7ohms
Voltage: 5V
Inductance: 5.8mH±20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 46mm
Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.00635mm(0.00025" )
Lead Travel/Revolution: 1.27mm(0.05")
Number of Leads: 4
Lead Length: 300mm
Weight : 180g
Connection
A+
|
A-
|
B+
|
B-
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
Full Datasheet: 11LS18-07549-250E.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Inductance(mH) | 5.8 |
Minimal Thrust(N) | 59 |
Motor Type | External |
Phase Resistance(ohm) | 6.7 |
Rated Current (A) | 0.75 |
Step Angle(°) | 1.8 |
Physical Specification | |
Body Length(mm) | 46 |
Lead Screw Diameter(mm) | 4.76 |
Lead Screw Length(mm) | 250 |
Lead Revolution(mm) | 1.27 |
Linear Travel / Step(mm) | 0.00635 |
No. of Lead | 4 |
Lead Length(mm) | 300 |
Frame Size(mm) | Nema 11 (28 x 28) |
