Nema 14 Non-captive Linear Stepper Motor Actuator Bipolar 1.8 Deg 0.57A 5V Revolution Lead 0.794mm/0.031" Lead Screw 150mm

Nema 14 Non-captive Linear Stepper Motor Actuator Bipolar 1.8 Deg 0.57A 5V Revolution Lead 0.794mm/0.031" Lead Screw 150mm
NO.:14LS13-0574P-150N
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$76.75
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $72.91 5%
10 $71.38 7%
50 $69.08 10%
100 $66.77 13%
Add To Cart

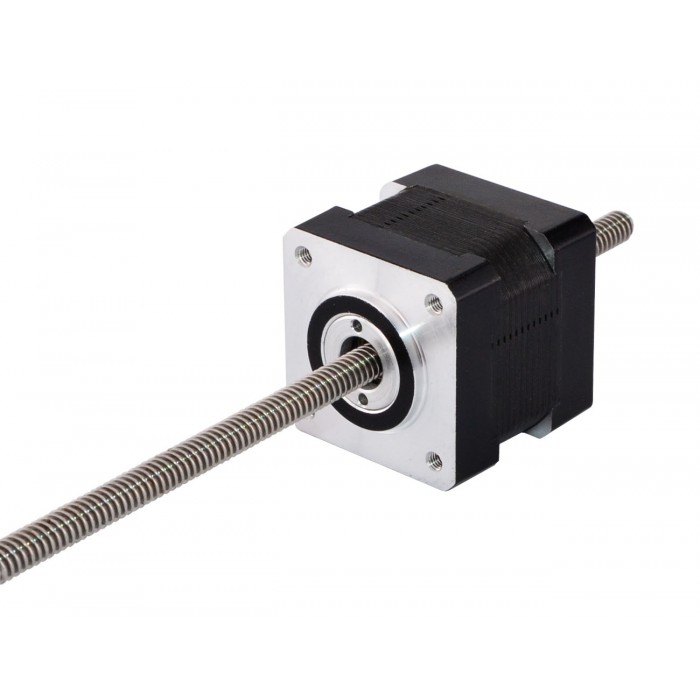

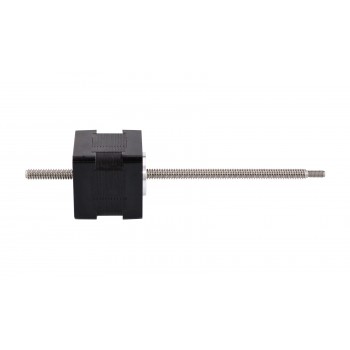

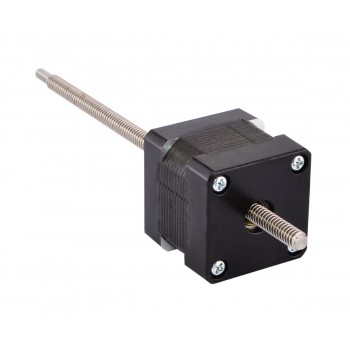

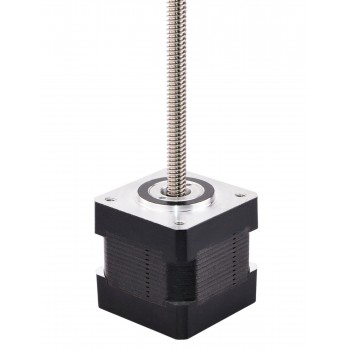

This model is almost exactly same as Haydon Kerk 35000 series size 14 non-captive stepper motor linear actuator. The motor part is 35mm body 1.8 degree 0.57A Nema 14 stepper motor, and it works with a 5.54mm (0.2181") diameter 150mm (5.9055") length lead screw, the linear travel is 0.794mm(0.03125") per revolution.

Electrical Specification

Manufacturer Part Number: 14LS13-0574P-150N

Motor Type: Non-captive Linear Stepper

Step Angle: 1.8°

Minimal Thrust: 192N (300pps)

Rated Current/phase: 0.57A

Phase Resistance: 8.8ohms

Voltage: 5V

Inductance: 13mH±20%(1KHz)



Physical Specification

Frame Size: 35 x 35mm

Body Length: 35mm

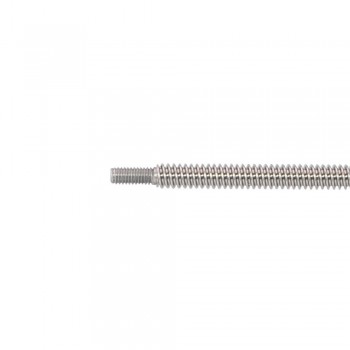

Lead Screw Length: 150mm(5.9055")

Lead Screw Diameter: Φ5.54mm(0.2181")

Lead/Step: 0.00396875mm(0.00015625" )

Lead Travel/Revolution: 0.794mm(0.03125")

Number of Leads: 4

Lead Length: 300mm

Weight : 162g



Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Full Datasheet: 14LS13-0574P-150N.pdf
