Nema 14 External Linear Stepper Motor Bipolar 1.8 Deg 0.57A 5V Lead Revolution 0.794mm/0.031" Lead Screw 150mm
- Manuals and Documentation: Full Datasheet:
Our Price:$71.16

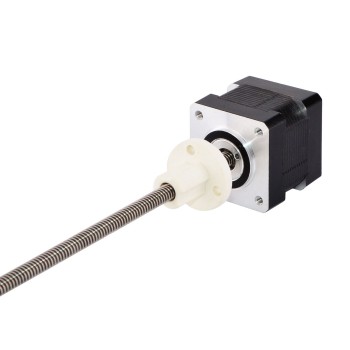

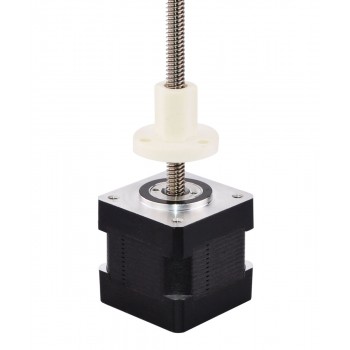

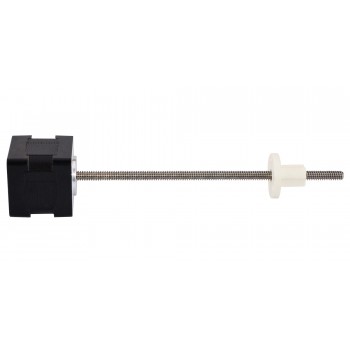

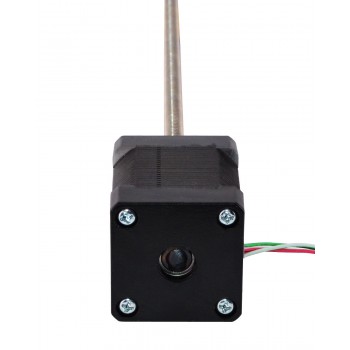

Nema 14 stepper motor (35 mm, 1.8°, 0.57 A) with integrated 5.54 mm (0.2181") × 150 mm (5.9055") lead screw and POM nut, 0.794 mm (0.03125") per revolution.
Electrical Specification
Manufacturer Part Number: 14LS13-0574P-150E
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 192N (300pps)
Rated Current/phase: 0.57A
Phase Resistance: 8.8ohms
Voltage: 5V
Inductance: 13mH±20%(1KHz)
Physical Specification
Frame Size: 35 x 35mm
Body Length: 35mm

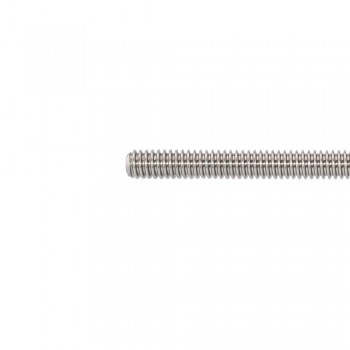

Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ5.54mm(0.2181")
Lead/Step: 0.00396875mm(0.00015625")
Lead Travel/Revolution: 0.794mm(0.03125")
Number of Leads: 4
Lead Length: 300mm
Weight: 162g
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green/White | Green |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 13 |
| Minimal Thrust(N) | 192 |
| Motor Type | External |
| Phase Resistance(ohm) | 8.8 |
| Rated Current (A) | 0.57 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 34.5 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 0.79375 |
| Linear Travel / Step(mm) | 0.00396875 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 14 (35 x 35) |
