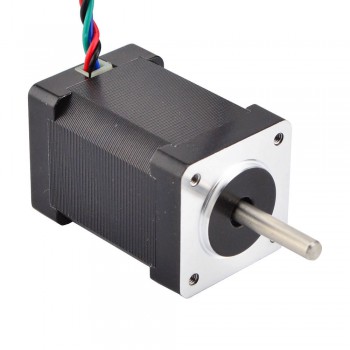

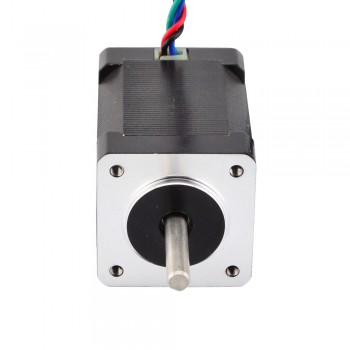

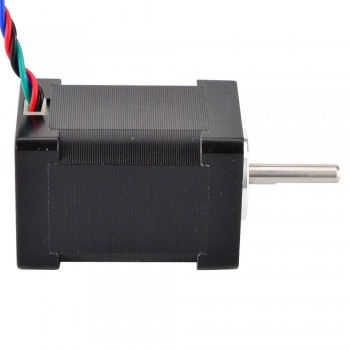

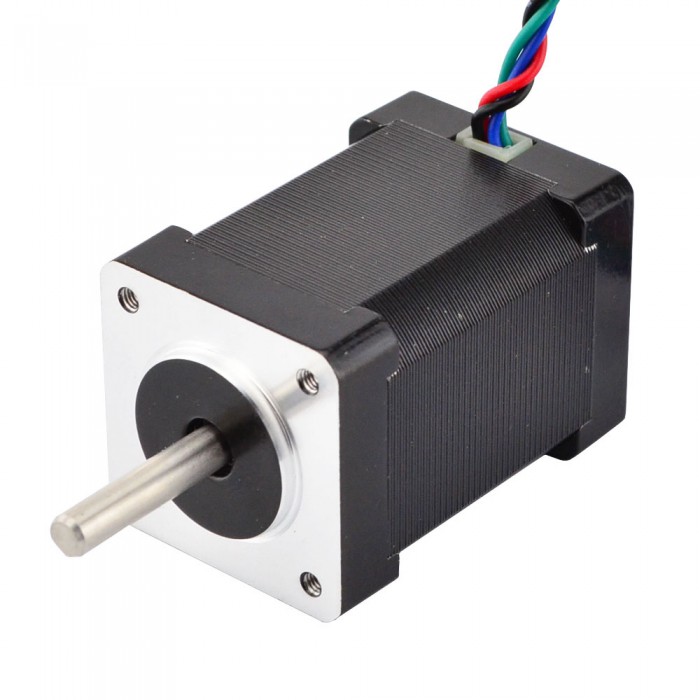

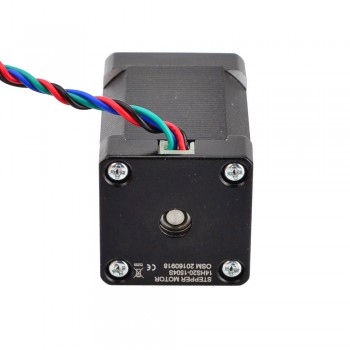

Nema 14 Stepper Motor High Torque Bipolar 1.8 Deg 40Ncm (56.7oz.in) 1.5A 4.2V 35x35x52mm 4 Wires
Special Offer in April 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till April 30th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$17.23
Nema 14 Stepper Motor High Torque Bipolar 1.8 deg 40Ncm (56.7oz.in) 1.5A 4.2V 35x35x52mm 4 Wires
This Nema 14 stepper motor is the strong model in Nema 14 size motors, it with step angle 1.8deg and size 35x35x52mm. It has 4 wires, each phase draws 1.5A at 4.2V, with holding torque 40Ncm (56.7oz.in).
Electrical Specification
- Manufacturer Part Number: 14HS20-1504S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 40Ncm(56.7oz.in)
- Rated Current/phase: 1.5A
- Voltage:4.2V
- Phase Resistance: 2.8ohms
- Inductance : 3.8mH ± 20%(1KHz)
Physical Specification
- Frame Size: 35 x 35mm
- Body Length: 52mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 400mm
- Weight: 290g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 14HS20-1504S.pdf
- Torque Curver: 14HS20-1504S Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 40 |
| Holding Torque (oz.in) | 56.7 |
| Inductance(mH) | 3.8 |
| Phase Resistance(ohm) | 2.8 |
| Rated Current (A) | 1.5 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 52 |
| Frame Size(mm) | 35x35 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 4 |
| Lead Length(mm) | 400 |
| Weight(g) | 350 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
