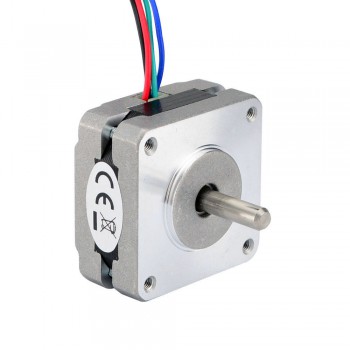

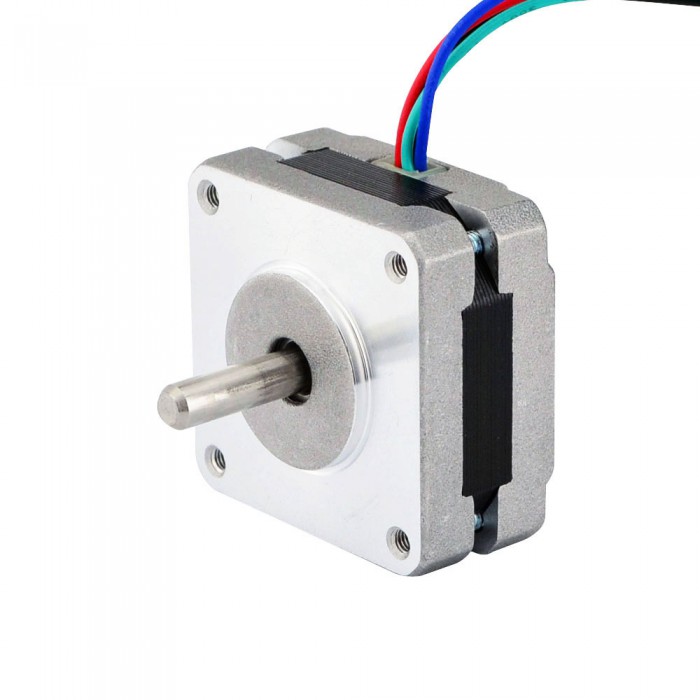

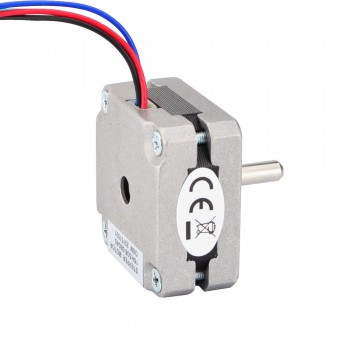

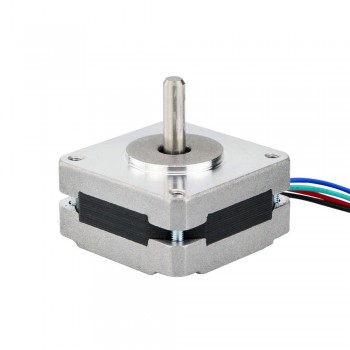

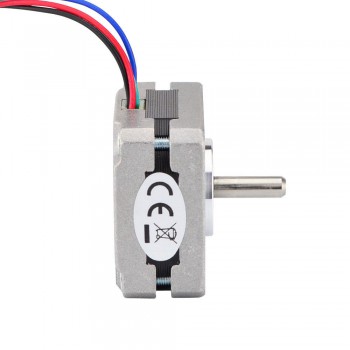

Nema 16 Stepper Motor Bipolar 1.8 Deg 8.7Ncm (12.3oz.in) 0.6A 3.96V 39x39x20mm 4 Wires
- Manuals and Documentation: Full Datasheet:
Our Price:$12.99
Nema 16 Stepper Motor Bipolar 1.8 deg 8.7Ncm (12.3oz.in) 0.6A 3.96V 39x39x20mm 4 Wires
This bipolar Nema 16 stepper motor with step angle 1.8deg and size 39x39x20mm. It has 4 wires, each phase draws 0.6A at 3.96V, with holding torque 8.7Ncm (12.3oz.in).
Electrical Specification
Manufacturer Part Number: 16HS08-0604S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 8.7Ncm(12.3oz.in)
Rated Current/phase: 0.6A
Voltage: 3.96V
Phase Resistance: 6.6ohms
Inductance: 8.5mH ± 20%(1KHz)
Physical Specification
Frame Size: 39 x 39mm
Body Length: 20mm
Shaft Diameter: Φ5mm
Shaft Length: 18mm
Number of Leads: 4
Lead Length: 300mm
Weight: 120g
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 8.7 |
| Holding Torque (oz.in) | 12.3 |
| Inductance(mH) | 8.5 |
| Phase Resistance(ohm) | 6.6 |
| Rated Current (A) | 0.6 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 20 |
| Frame Size(mm) | 39x39 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | O |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 18 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 120 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
