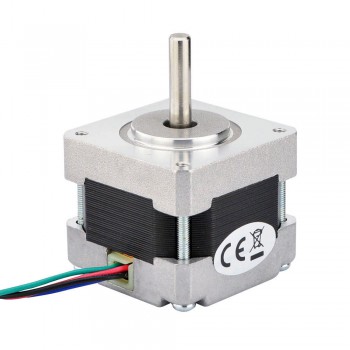

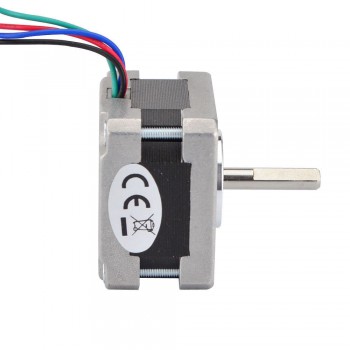

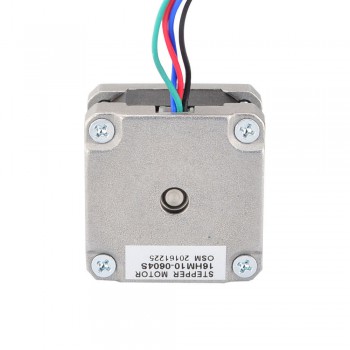

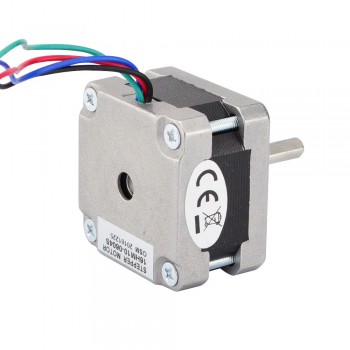

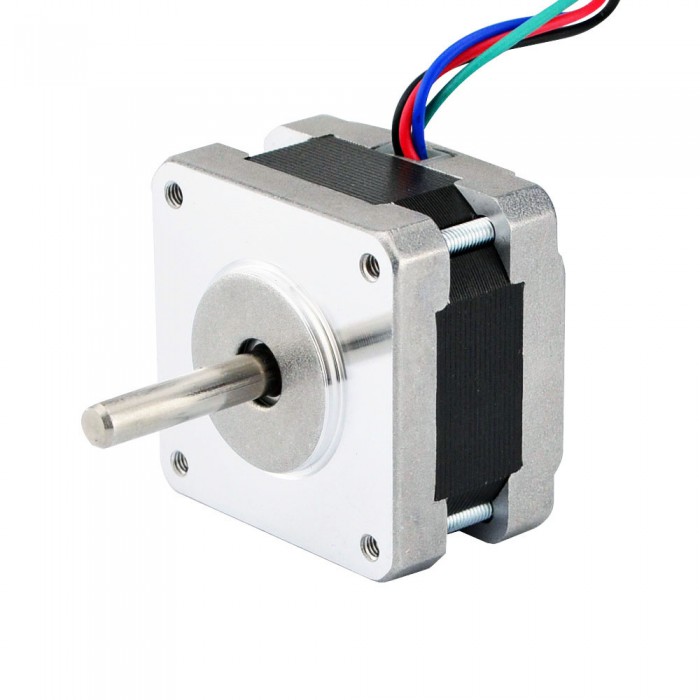

Nema 16 Stepper Motor Bipolar 1.8 Deg 18Ncm (25.5oz.in) 0.65A 4.55V 39x39x34mm 4 Wires
- Manuals and Documentation: Full Datasheet:
Our Price:$13.22
Nema 16 Stepper Motor Bipolar 1.8 deg 18Ncm (25.5oz.in) 0.65A 4.55V 39x39x34mm 4 Wires
This bipolar Nema 16 stepper motor with step angle 1.8deg and size 39x39x34mm. It has 4 wires, each phase draws 0.65A at 4.55V, with holding torque 18Ncm (25.5oz.in).
Electrical Specification
Manufacturer Part Number: 16HS13-0654S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 18Ncm(25.5oz.in)
Rated Current/phase: 0.65A
Voltage: 4.55V
Phase Resistance: 7ohms
Inductance: 9.3mH ± 20%(1KHz)
Physical Specification
Frame Size: 39 x 39mm
Body Length: 34mm
Shaft Diameter: Φ5mm
Shaft Length: 22mm
Number of Leads: 4
Lead Length: 300mm
Weight: 190g
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 18 |
| Holding Torque (oz.in) | 25.5 |
| Inductance(mH) | 9.3 |
| Phase Resistance(ohm) | 7 |
| Rated Current (A) | 0.65 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Frame Size(mm) | 39x39 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | O |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 22 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 180 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
