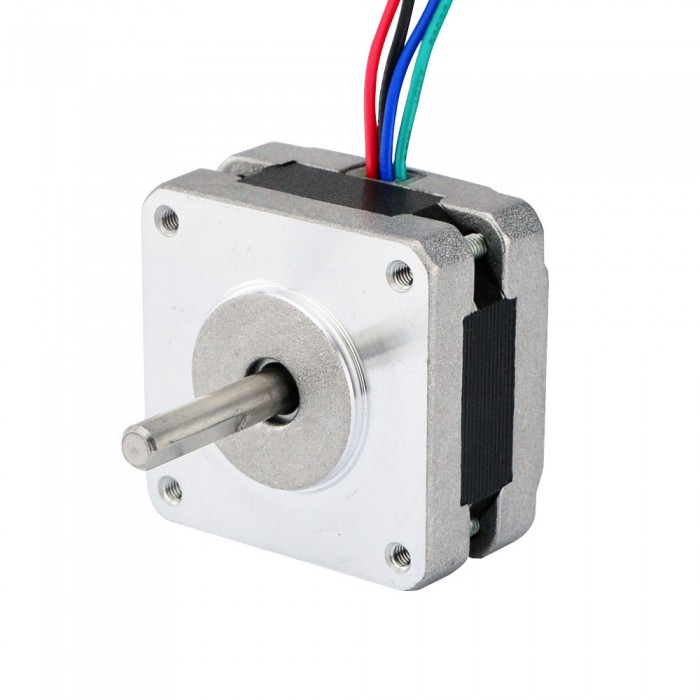

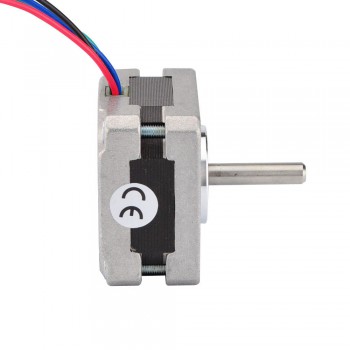

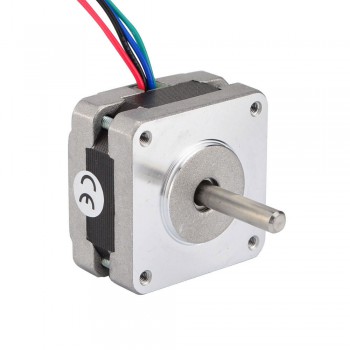

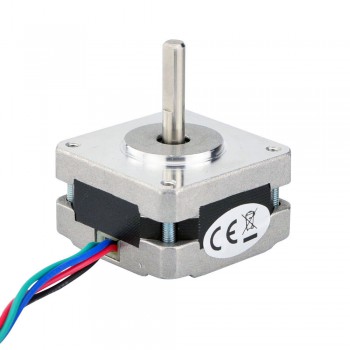

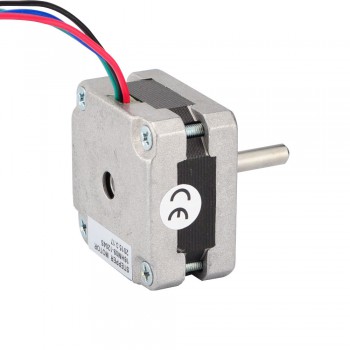

Nema Size 16 Stepper Motor Bipolar 0.9 Deg 11Ncm (15.6oz.in) 1.2A 3.6V 39x39x22mm 4 Wires
Special Offer in April 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till April 30th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$15.41
Nema Size 16 Stepper Motor Bipolar 0.9 deg 11Ncm (15.6oz.in) 1.2A 3.6V 39x39x22mm 4 Wires
This bipolar Nema 16 stepper motor with step angle 0.9deg and size 39x39x25mm. It has 4 wires, each phase draws 0.6A at 6V, with holding torque 16Ncm (22.7oz.in).
Electrical Specification
- Manufacturer Part Number: 16HM10-0604S
- Motor Type: Bipolar Stepper
- Step Angle: 0.9 deg
- Holding Torque: 16Ncm(22.7oz.in)
- Rated Current/phase: 0.6A
- Voltage: 6V
- Phase Resistance: 10ohms
- Inductance: 15.5mH ± 20%(1KHz)
Physical Specification
- Frame Size: 39 x 39mm
- Body Length: 25mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 150g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Red
|
Green
|
Blue
|
Resources
- Full Datasheet: 16HM10-0604S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 11 |
| Holding Torque (oz.in) | 15.6 |
| Inductance(mH) | 2.7 |
| Phase Resistance(ohm) | 3 |
| Rated Current (A) | 1.2 |
| Step Angle(°) | 0.9 |
| Physical Specification | |
| Body Length(mm) | 22 |
| Frame Size(mm) | 39x39 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 100 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
