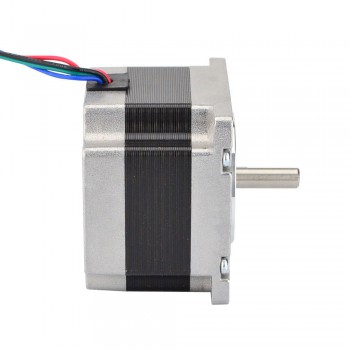

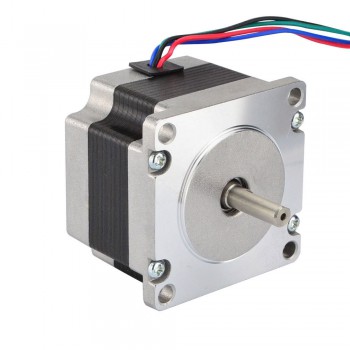

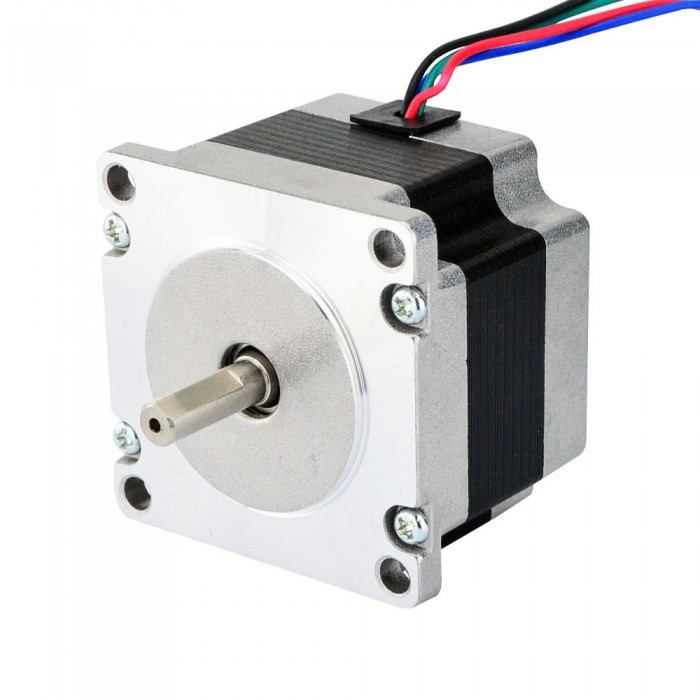

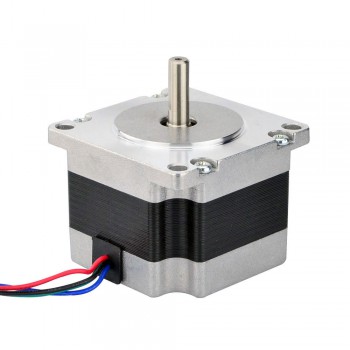

Nema 23 Stepper Motor Bipolar 1.8 Deg 0.6Nm (85oz.in) 0.88A 6.6V 57x57x41mm 4 Wires

-4% Nema 23 Stepper Motor Bipolar 1.8 Deg 0.6Nm (85oz.in) 0.88A 6.6V 57x57x41mm 4 Wires
NO.:23HS16-0884S
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$13.91
Promotion price:$13.45
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $13.21 5%
30 $12.94 7%
50 $12.52 10%
100 $12.10 13%
Add To Cart

This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x41mm. It has 4 wires, each phase draws 0.88A, with holding torque 0.6Nm (85oz.in).

Electrical Specification

  • Manufacturer Part Number: 23HS16-0884S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 0.6Nm(85oz.in)
  • Rated Current/phase: 0.88A
  • Voltage: 6.6V
  • Phase Resistance: 7.5ohms
  • Inductance: 21.7mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 42mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 20.6mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 500g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Bipolar 0.9 Deg 46Ncm 2A 2.8V 42x42x48mm 4 Wires(17HM19-2004S)
Next: Dual Shaft Nema 23 Stepper Motor Bipolar 0.9 Deg 0.9Nm (127.5oz.in) 0.38A 57x57x51mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 60
Holding Torque (oz.in) 85
Inductance(mH) 21.7
Phase Resistance(ohm) 7.5
Rated Current (A) 0.88
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 42
Frame Size(mm) 57x57
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 6.35
Shaft Length(mm) 20.6
No. of Lead 4
Lead Length(mm) 500
Weight(g) 500
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
