Nema 16 Stepper Motor Unipolar 1.8 Deg 8Ncm (11.3oz.in) 0.5A 6.5V 39x39x20mm 6 Wires
Nema 16 Stepper Motor Unipolar 1.8 deg 8Ncm (11.3oz.in) 0.5A 6.5V 39x39x20mm 6 Wires

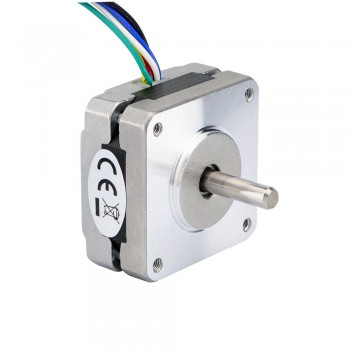

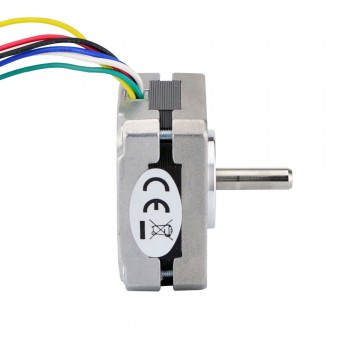

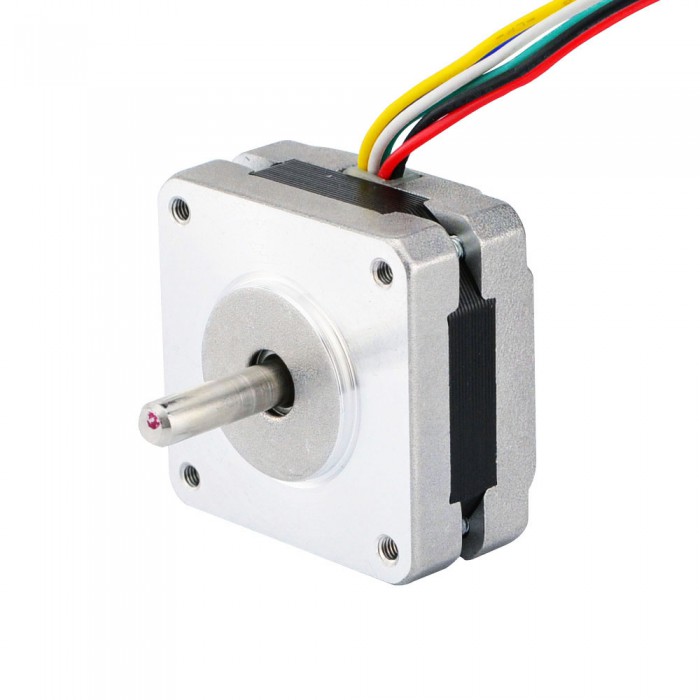

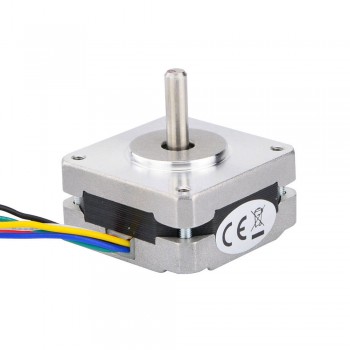

This unipolar Nema 16 stepper motor with step angle 1.8deg and size 39x39x20mm. It has 6 wires, each phase draws 0.5A at 6.5V, with holding torque 8Ncm (11.3oz.in).
Electrical Specification

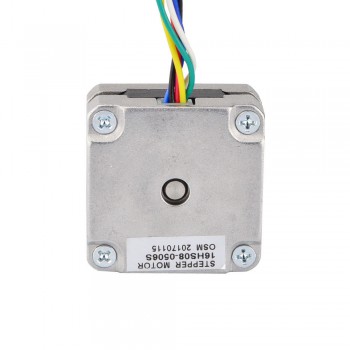

Manufacturer Part Number: 16HS08-0506S
Motor Type: Unipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 8Ncm(11.3oz.in)
Rated Current/phase: 0.5A
Voltage: 6.5V
Phase Resistance: 13ohms
Inductance: 7.5mH ± 20%(1KHz)
Physical Specification
Frame Size: 39 x 39mm
Body Length: 20mm
Shaft Diameter: Φ5mm
Shaft Length: 19mm
Number of Leads: 6
Lead Length: 300mm
Weight: 120g
Connection
|
A+
|
O+
|
A-
|
B+
|
O-
|
B-
|
|
BLK
|
YEL
|
GRN
|
RED
|
WHT
|
BLU
|
Resources
Full Datasheet: 16HS08-0506S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Unipolar |
| Holding Torque (Ncm) | 8 |
| Holding Torque (oz.in) | 11.3 |
| Inductance(mH) | 6.4 |
| Phase Resistance(ohm) | 14 |
| Rated Current (A) | 0.5 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 20 |
| Frame Size(mm) | 39x39 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | O |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 19 |
| No. of Lead | 6 |
| Lead Length(mm) | 300 |
| Weight(g) | 120 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
