Nema 23 External Linear Stepper Motor Actuator Bipolar 1.8 Deg 2.5A 5V Lead Revolution 2.54mm/0.1" Lead Screw 150mm

Nema 23 External Linear Stepper Motor Actuator Bipolar 1.8 Deg 2.5A  5V Lead Revolution 2.54mm/0.1" Lead Screw 150mm
NO.:23LS26-25043-150E
Post a review
Our Price:$128.37
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $121.95 5%
5 $119.38 7%
10 $115.53 10%
50 $111.68 13%
Add To Cart

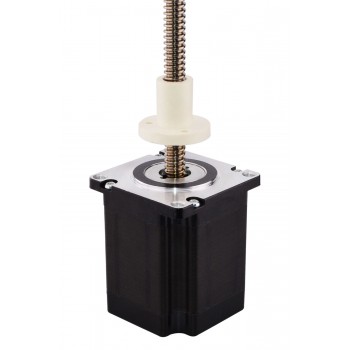

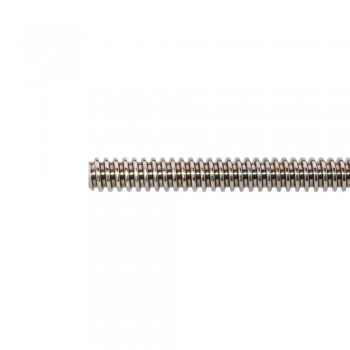

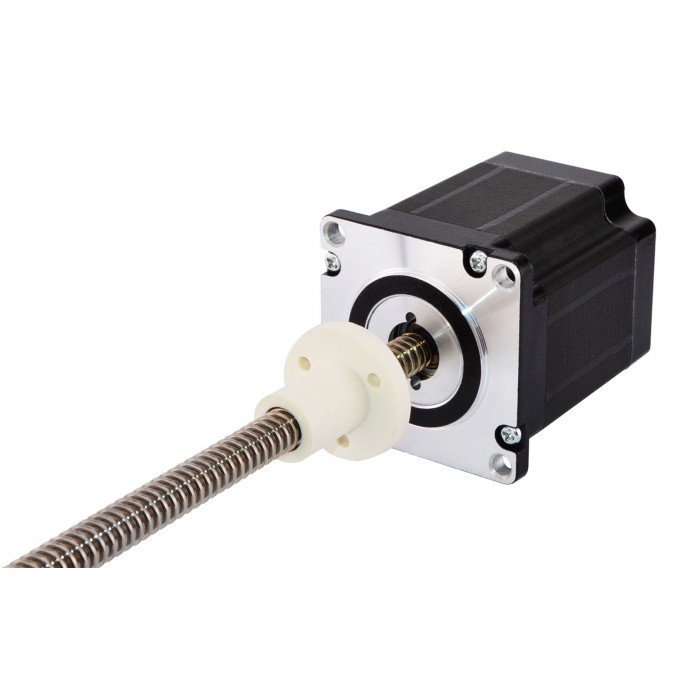

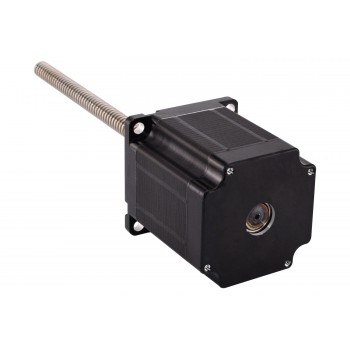

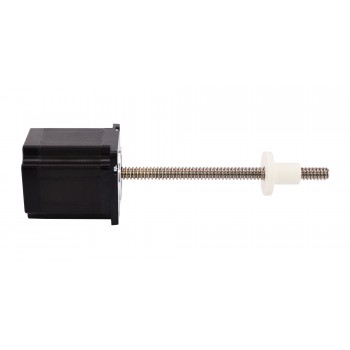

This model is almost exactly same as Haydon Kerk 57000 series size 23 double stack external stepper motor linear actuator. The motor part is 66mm body 1.8 degree 2.5A Nema 23 stepper motor, and it has integrated with a 9.53mm (0.3752") diameter 150mm (5.9055") length lead screw and a POM screw nut, the linear travel is 2.54mm (0.1") per revolution.

Electrical Specification

  • Manufacturer Part Number: 23LS26-25043-150E
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 540N (300pps)
  • Rated Current/phase: 2.5A
  • Phase Resistance: 2ohms
  • Voltage: 5V
  • Inductance: 7.6mH±20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 66mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ9.53mm(0.3752")
  • Lead/Step: 0.0127mm(0.0005" )
  • Lead Travel/Revolution: 2.54mm(0.1")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 958g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 External Linear Stepper Motor Actuator Bipolar 1.8 Deg 2.5A 5V Lead Revolution 1.5875mm/0.0625" Lead Screw 150mm
Next: Nema 23 External Linear Stepper Motor Bipolar 1.8 Deg 2.5A 5V Lead Revolution 5.08mm/0.2" Lead Screw 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 8.2
Minimal Thrust(N) 540
Motor Type External
Phase Resistance(ohm) 2.1
Rated Current (A) 2.5
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 66
Lead Screw Diameter(mm) 9.53
Lead Screw Length(mm) 150
Lead Revolution(mm) 2.54
Linear Travel / Step(mm) 0.0127
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 23 (57 x 57)
