Nema 23 External Linear Stepper Motor Bipolar 1.8 Deg 2.5A 5V Lead Revolution 5.08mm/0.2" Lead Screw 150mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!

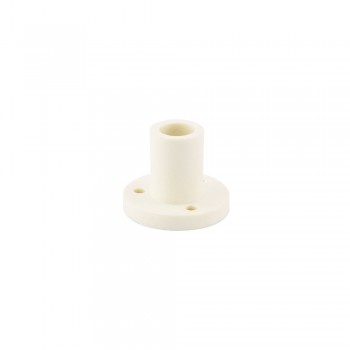

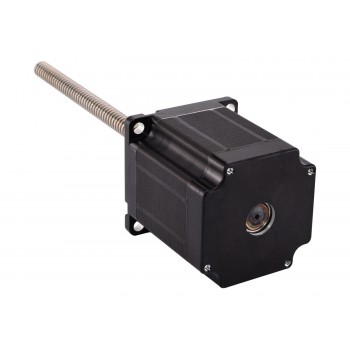

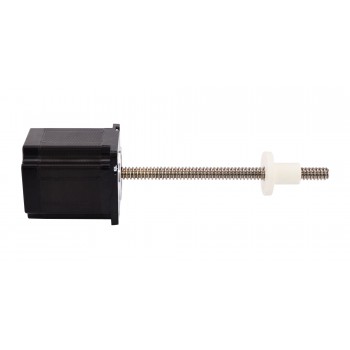

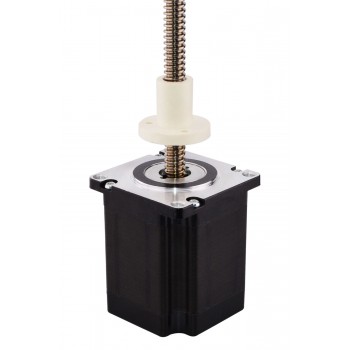

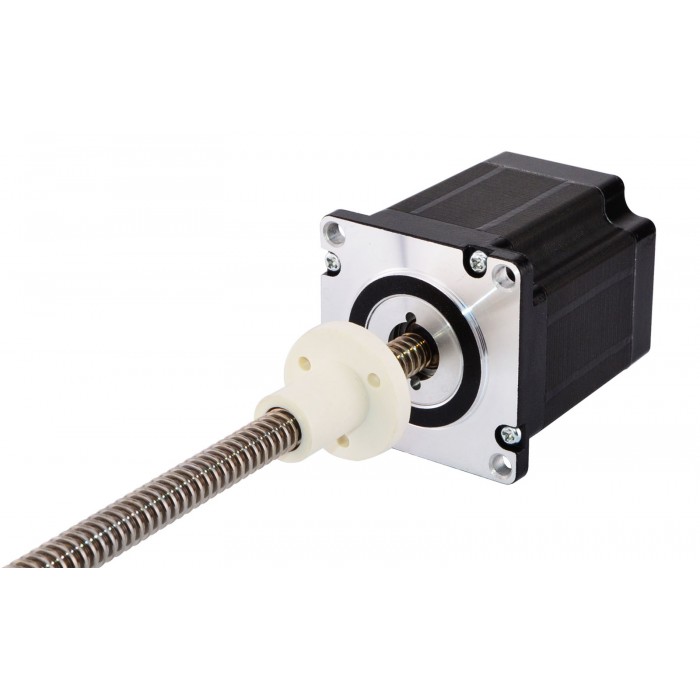

This model is almost exactly same as Haydon Kerk 57000 series size 23 double stack external stepper motor linear actuator. The motor part is 66mm body 1.8 degree 2.5A Nema 23 stepper motor, and it has integrated with a 9.53mm (0.3752") diameter 150mm (5.9055") length lead screw and a POM screw nut, the linear travel is 5.08mm (0.2") per revolution.
Electrical Specification
Manufacturer Part Number: 23LS26-25041-150E
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 300N (300pps)
Rated Current/phase: 2.5A
Phase Resistance: 2ohms
Voltage: 5V
Inductance: 7.6mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 66mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ9.53mm(0.3752")
Lead/Step: 0.0254mm(0.001" )
Lead Travel/Revolution: 5.08mm(0.2")
Number of Leads: 4
Lead Length: 300mm
Weight : 958g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
Full Datasheet: 23LS26-25041-150E.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 8.2 |
| Minimal Thrust(N) | 300 |
| Motor Type | External |
| Phase Resistance(ohm) | 2.1 |
| Rated Current (A) | 2.5 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 66 |
| Lead Screw Diameter(mm) | 9.53 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 5.08 |
| Linear Travel / Step(mm) | 0.0254 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 23 (57 x 57) |
