Nema 23 Precision Linear Actuator External 66mm Stack 2.5A Lead 10.16mm/0.4" Length 250mm

Nema 23 Precision Linear Actuator External 66mm Stack 2.5A Lead 10.16mm/0.4" Length 250mm
NO.:23LS26-25042-250E
Review: Post a review
Special Offer in May 2023:
  • $10 Off Over $150
  • $20 Off Over $300
  • $30 Off Over $500
  • $50 Off Over $800
  • $60 Off Over $1000
  • $80 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$152.38
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $144.76 5%
5 $141.71 7%
10 $137.14 10%
50 $129.52 15%
Add To Cart

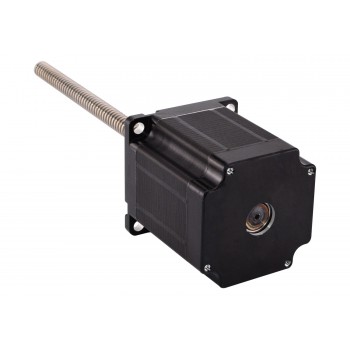

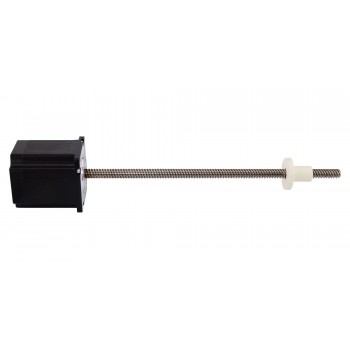

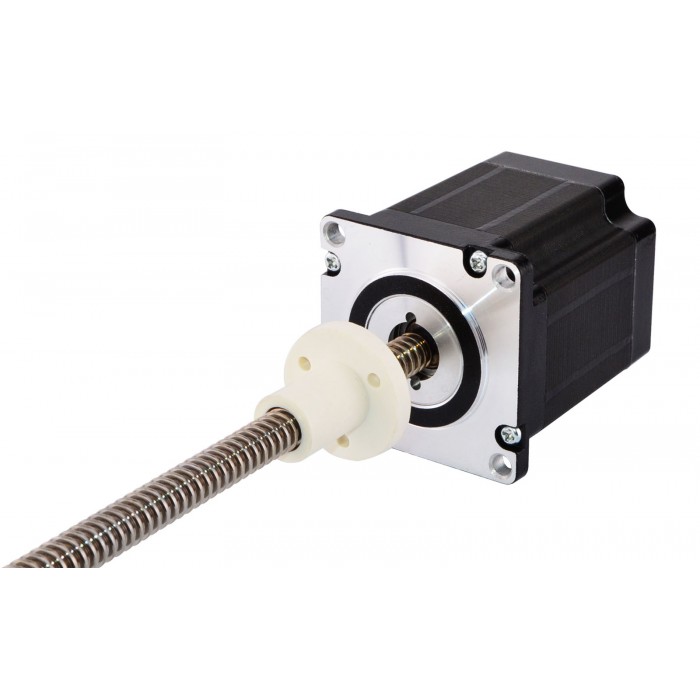

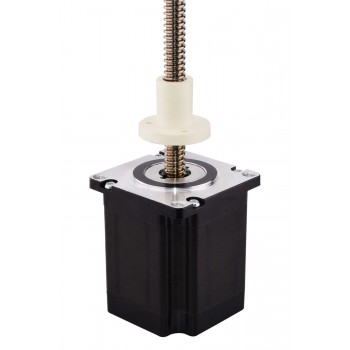

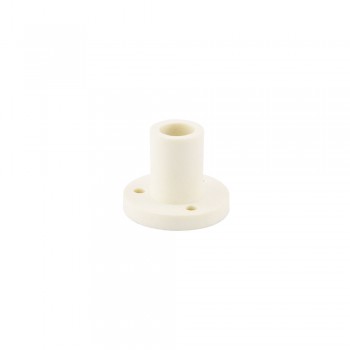

This model is almost exactly same as Haydon Kerk 57000 series size 23 double stack external stepper motor linear actuator. The motor part is 66mm body 1.8 degree 2.5A Nema 23 stepper motor, and it has integrated with a 9.53mm (0.3752") diameter 250mm (9.8425") length lead screw and a POM screw nut, the linear travel is 10.16mm (0.4") per revolution.

Electrical Specification

  • Manufacturer Part Number: 23LS26-25042-250E
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 220N (300pps)
  • Rated Current/phase: 2.5A
  • Phase Resistance: 2ohms
  • Voltage: 5V
  • Inductance: 7.6mH±20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 66mm
  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ9.53mm(0.3752")
  • Lead/Step: 0.0508mm(0.002" )
  • Lead Travel/Revolution: 10.16mm(0.4")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 958g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 External 66mm Stack 2.5A Lead 5.08mm/0.2" Length 250mm
Next: Nema 34 Stepper Motor Non-captive 79mm Stack 3.12A Lead 2.54mm/0.1" Length 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 8.2
Minimal Thrust(N) 220
Motor Type External
Phase Resistance(ohm) 2.1
Rated Current (A) 2.5
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 66
Frame Size(mm) 57x57
Lead Screw Diameter(mm) 9.53
Lead Screw Length(mm) 250
Lead Revolution(mm) 10.16
Linear Travel / Step(mm) 0.0508
No. of Lead 4
Lead Length(mm) 300
