Nema 34 Stepper Motor Non-captive Linear Actuator Bipolar 1.8 Deg 79mm Stack 3.12A 5V Lead Revolution 0.0127mm Lead Screw 250mm

Nema 34 Stepper Motor Non-captive Linear Actuator Bipolar 1.8 Deg 79mm Stack 3.12A 5V Lead Revolution 0.0127mm Lead Screw 250mm
NO.:34LS31-31243-250N
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$265.12
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $251.86 5%
5 $246.56 7%
10 $238.61 10%
50 $230.65 13%
Add To Cart

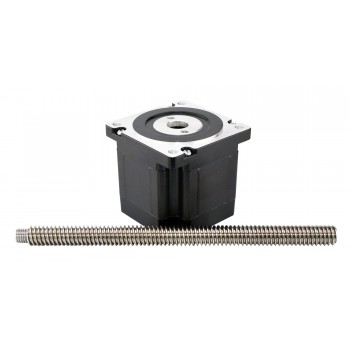

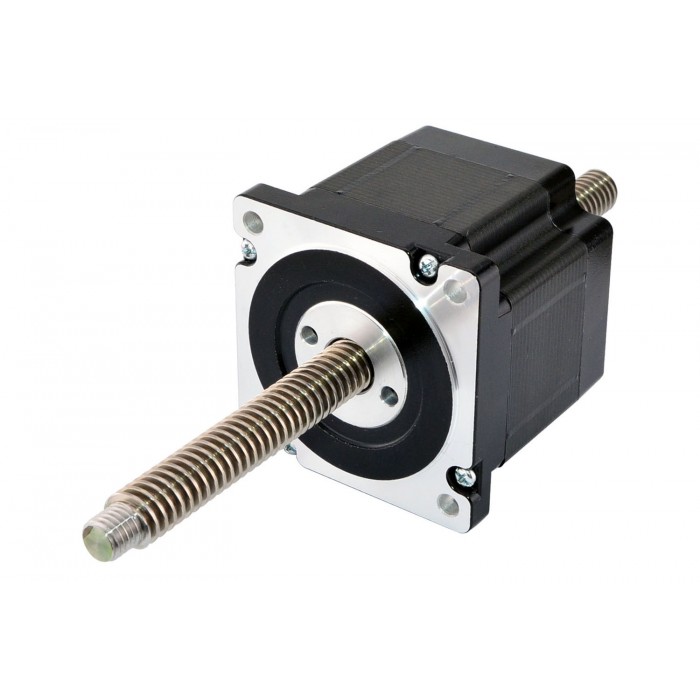

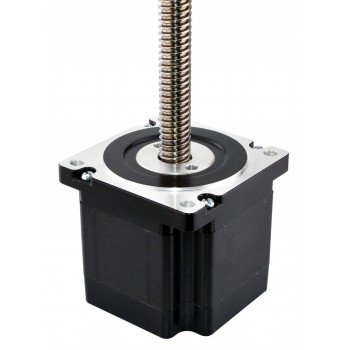

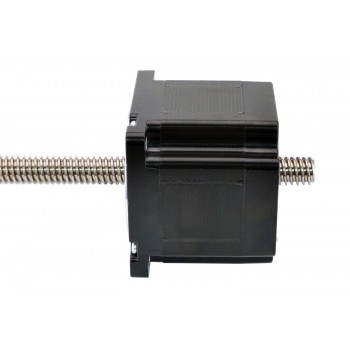

This model is almost exactly the same as Haydon Kerk 86000 series non-captive stepper motor linear actuator. The motor part is 79mm body 1.8 degree 3.12A Nema 34 stepper motor , and it works with a 15.88mm (0.625") length screw with a diameter of 250mm (9.8425"), the linear stroke is 2.54mm (0.1") revolution.



Electrical Specification:

Manufacturer Part Number: 34LS31-31243-250N
Motor type: Non-captive linear actuator
Pitch angle: 1.8°
Minimum thrust: 1000N (300pps)
Current/Phase: 3.12A
Resistance/Phase: 1.6ohms
Voltage: 5V
Inductance: 8.8mH±20%(1KHz);



Physical Specification:
Dimensions: 86x 86mm
Motor length: 79mm

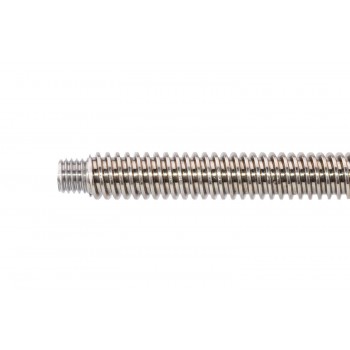

Lead screw length: 250mm(9.8425")
Lead screw diameter: Φ15.88mm(0.625")
Lead/Step: 0.0127mm(0.0005" )
Lead: 2.54mm(0.1")
Number of cables: 4
Cable length: 300mm
Weight: 2300g



Connexion

A+
A-
B+
B-
Rouge
Rouge/Blanc
Vert/Blanc
Vert



Ressources



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 34 Stepper Motor Non-captive Linear Actuator Bipolar 1.8 Deg 79mm Stack 3.12A 5V Lead Revolution 6.35mm(0.25") Lead Screw 150mm
Next: Nema 34 Stepper Motor Non-captive Linear Actuator Bipolar 1.8 Deg 79mm Stack 3.12A 5V Lead Revolution 6.35mm(0.25") Lead Screw 250mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 8.8
Minimal Thrust(N) 1000
Motor Type Non-Captive
Phase Resistance(ohm) 1.6
Rated Current (A) 3.12
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 78.56
Lead Screw Diameter(mm) 15.88
Lead Screw Length(mm) 250
Lead Revolution(mm) 2.54
Linear Travel / Step(mm) 0.0127
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 34 (86 x 86)
