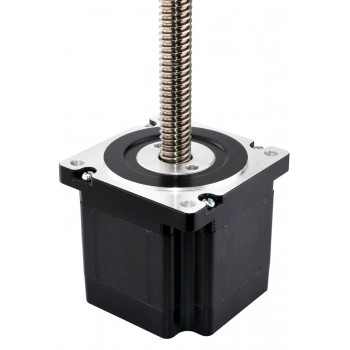

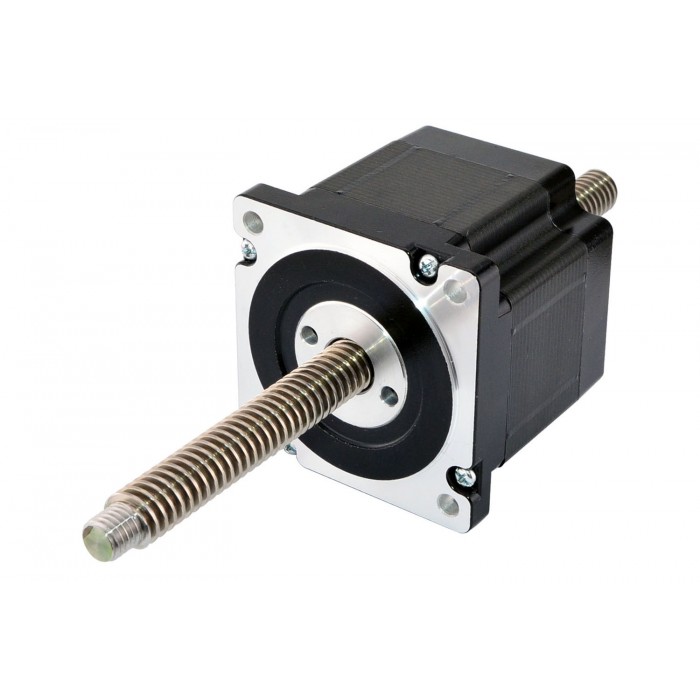

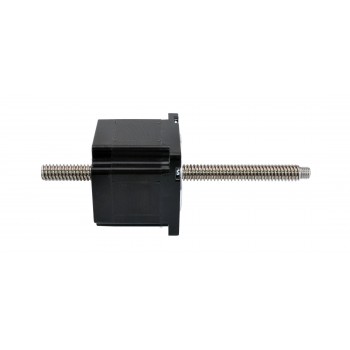

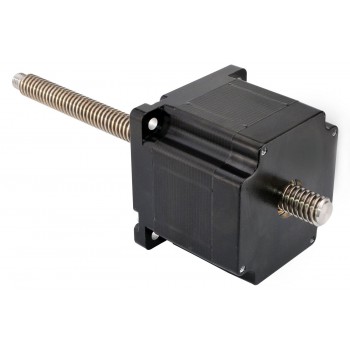

Nema 34 Stepper Motor Non-captive Linear Actuator Bipolar 1.8 Deg 79mm Stack 3.12A 5V Lead Revolution 6.35mm(0.25") Lead Screw 250mm

Nema 34 Stepper Motor Non-captive Linear Actuator Bipolar 1.8 Deg 79mm Stack 3.12A 5V Lead Revolution 6.35mm(0.25") Lead Screw 250mm
NO.:34LS31-3124C-250N
Post a review
Our Price:$265.12
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $251.86 5%
5 $246.56 7%
10 $238.61 10%
50 $230.65 13%
Add To Cart

This model is almost exactly same as Haydon Kerk 86000 series size 34 non-captive stepper motor linear actuator. The motor part is 79mm body 1.8 degree 3.12A Nema 34 stepper motor, and it works with a 15.88mm (0.625") diameter 250mm (9.8425") length lead screw, the linear travel is 6.35mm (0.25") per revolution.

Electrical Specification

  • Manufacturer Part Number: 34LS31-3124C-250N
  • Motor Type: Non-captive Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 800N (300pps)
  • Rated Current/phase: 3.12A
  • Phase Resistance: 1.6ohms
  • Voltage: 5V
  • Inductance: 8.8mH±20%(1KHz)

Physical Specification

  • Frame Size: 86x 86mm
  • Body Length: 79mm

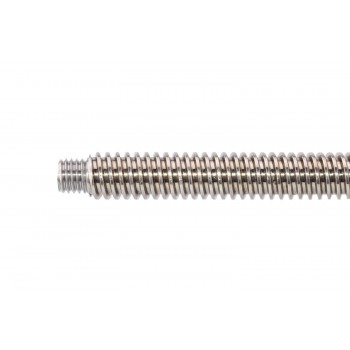

  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ15.88mm(0.625")
  • Lead/Step: 0.03175mm(0.00125" )
  • Lead Travel/Revolution: 6.35mm(0.25")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 2300g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 34 Stepper Motor Non-captive Linear Actuator Bipolar 1.8 Deg 79mm Stack 3.12A 5V Lead Revolution 0.0127mm Lead Screw 250mm
Next: Nema 34 Stepper Motor External Linear Actuator Bipolar 1.8 Deg 3.12A 5V Lead Screw 150mm 79mm Stack Lead Revolution 2.54mm(0.1")
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 8.8
Minimal Thrust(N) 800
Motor Type Non-Captive
Phase Resistance(ohm) 1.6
Rated Current (A) 3.12
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 78.56
Lead Screw Diameter(mm) 15.88
Lead Screw Length(mm) 250
Lead Revolution(mm) 6.35
Linear Travel / Step(mm) 0.03175
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 34 (86 x 86)
