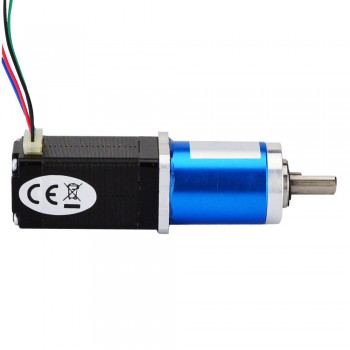

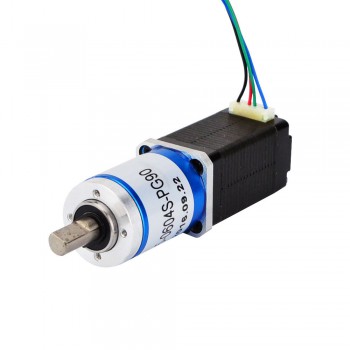

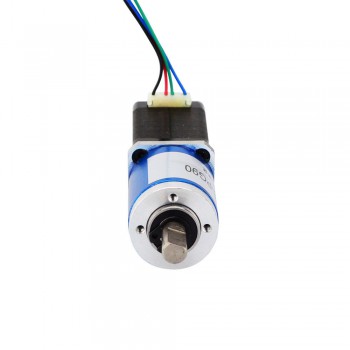

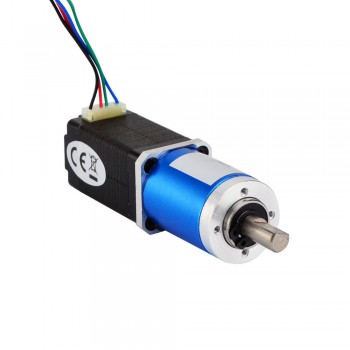

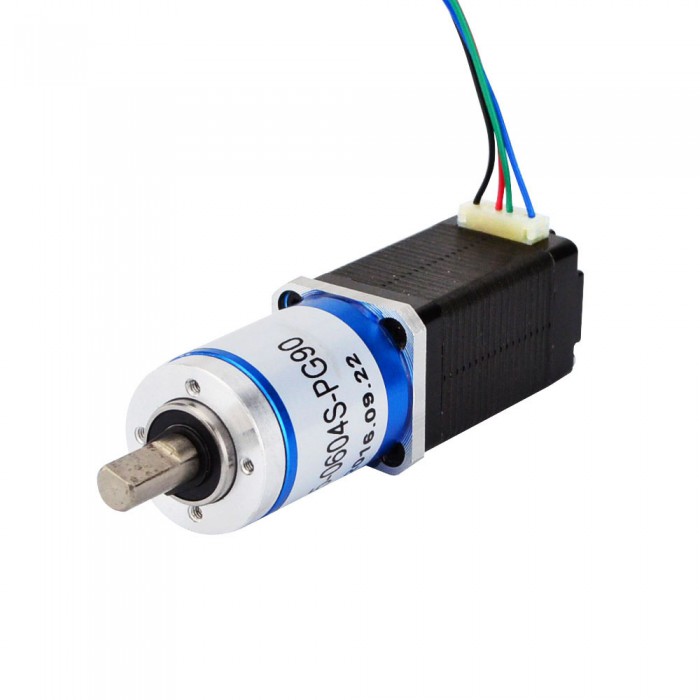

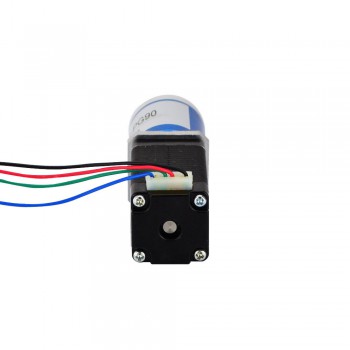

Nema 8 Stepper Motor Bipolar L=38mm 4Ncm 0.02 deg 0.6A 6V with 90:1 Planetary Gearbox
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till October 15th, 2024
- Note:No coupon code needed, please place order directly!
This Nema 8 stepper motor with 38mm body and 0.6A rated current, integrated a planetary gearbox of 90.25:1 gear ratio.
Electrical Specification
Manufacturer Part Number: 8HS15-0604S-PG90
Motor Type: Bipolar Stepper
Step Angle: 0.02 deg
Holding Torque without Gearbox: 4Ncm(5.66oz.in)
Rated Current/phase: 0.6A
Voltage: 6V
Phase Resistance: 10ohms
Inductance: 5.5mH ± 20%(1KHz)
Gearbox Specifications
Gearbox Type: Planetary
Gear Ratio: 90.25: 1
Efficiency: 73%
Backlash at No-load: <=1 deg
Max.Permissible Torque: 0.9Nm(127.5oz.in)
Moment Permissible Torque: 2Nm(283oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N
Physical Specifications
Frame Size: 22 x 22mm
Motor Length: 38mm
Gearbox Length: 30.95mm
Shaft Diameter: Φ6mm
Shaft Length: 15mm
D-cut Length: 9mm
Number of Leads: 4
Lead Length: 300mm
Weight: 130g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 8HS15-0604S-PG90.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Gearbox Specification | |
|---|---|
| Backlash at No-load(Max.°) | 1 |
| Efficiency | 73% |
| Gear Ratio | 90.25:1 |
| Gearbox Length(mm) | 30.95 |
| Gearbox Type | Planetary |
| Max. Permissible Torque(Ncm) | 90 |
| Max. Permissible Torque(oz.in) | 127.5 |
| Moment Permissible Torque(Ncm) | 283.2 |
| Shaft Maximum Axial Load(N) | 5 |
| Shaft Maximum Radial Load(N) | 25 |
| Motor Specification | |
| Inductance(mH) | 5.5 |
| Lead Length(mm) | 300 |
| Motor Nema Size | Nema 8 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 10 |
| Rated Current (A) | 0.6 |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 15 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 4 |
| Holding Torque w/o Gearbox(oz.in) | 5.7 |
| Motor Length(mm) | 38 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Physical Specification | |
| Weight(g) | 400 |
