24V 24V BLDC Motor 4000RPM 0.0625Nm 26W 1.8A 42x42x40mm 42BLR Brushless DC Motor
24V 24V BLDC Motor 4000RPM 0.0625Nm 26W 1.8A 42x42x40mm 42BLR Brushless DC Motor

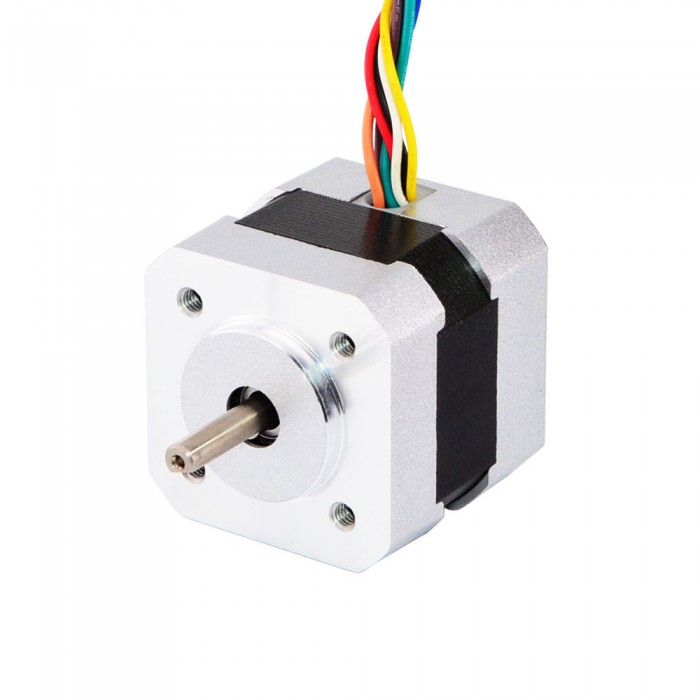

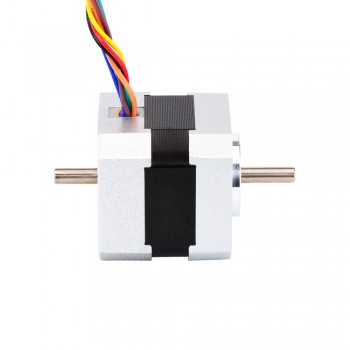

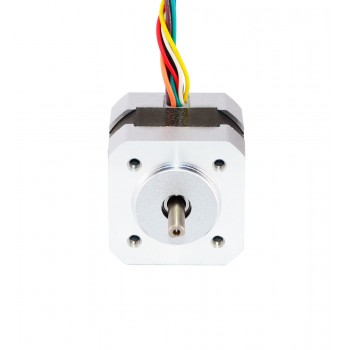

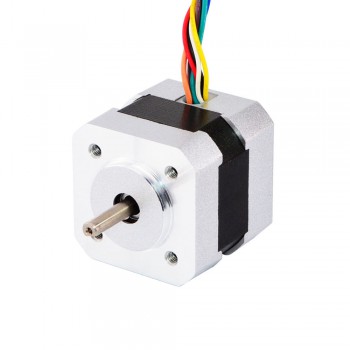

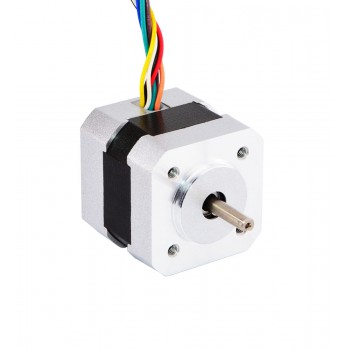

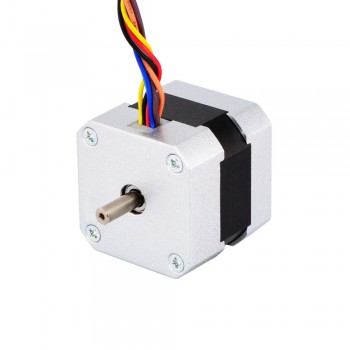

The 42BLS40-24-01 BLDC motor delivers 0.063 Nm at 4000 rpm on 24 V, with a 42 mm square frame, D-cut shaft, and Hall sensors.
Electrical Specification
Manufacturer Part Number: 42BLS40-24-01
Phase: 3
Poles: 8
Rated Voltage: 24V
Rated Speed: 4000±10%RPM
Noload Speed: 6700RPM
Rated Torque: 0.063Nm(8.92oz.in)
Rated Current: 1.8±10%A
Noload Current: 0.2A
Rated Power: 26W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute
Physical Specification
Frame Size: 42x42mm
Body Length: 39.2mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Shaft Type: D-cut
D-cut Length: 15mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Sensor: Hall Sensor
Weight: 0.3kg
Connection
|
U
|
V
|
W
|
+5V
|
GND
|
A
|
B
|
C
|
|
ORG
|
GRN
|
BRW
|
RED
|
BLK
|
YEL
|
WHT
|
BLU
|
| BLDC Motor Specification | |
|---|---|
| Bearing Type | NMB Ball Bearing, C3 |
| Insulation Class | Class B |
| No. of Lead | 8 |
| No. of Phases | 3 |
| No. of Poles | 8 |
| Rated Current(A) | 1.8 |
| Rated Power(W) | 26 |
| Rated Speed(rpm) | 4000±10% |
| Rated Torque(Nm) | 0.063 |
| Rated Torque(oz.in) | 8.92 |
| Rated Voltage(V) | 24 |
| Sensor Type | Hall Sensor |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| Flange Size(mm) | 42x42 |
| Body Length(mm) | 39.2 |
| Physical Specification | |
| Weight(g) | 300 |
