24V 24V BLDC Motor 4000RPM 0.125Nm 52W 3.4A 42x42x63mm 42BLR Brushless DC Motor

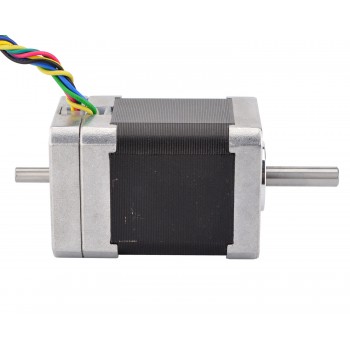

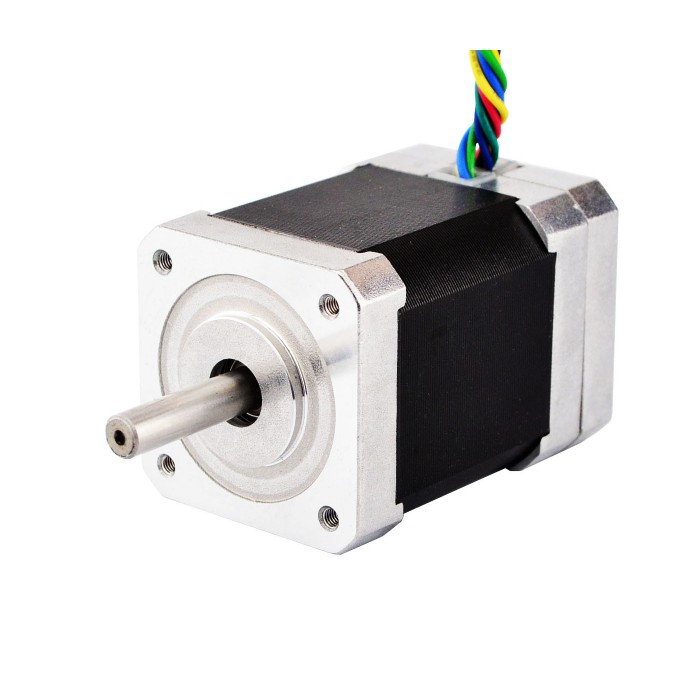

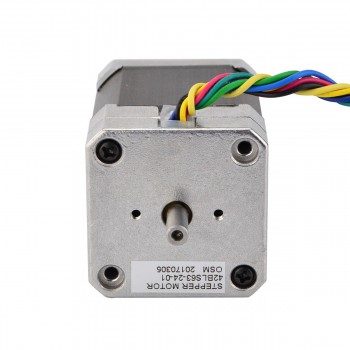

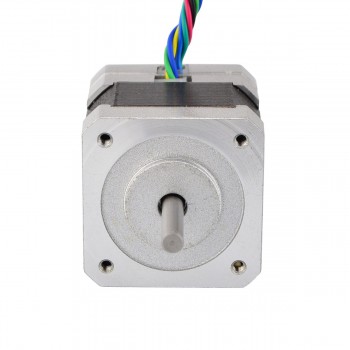

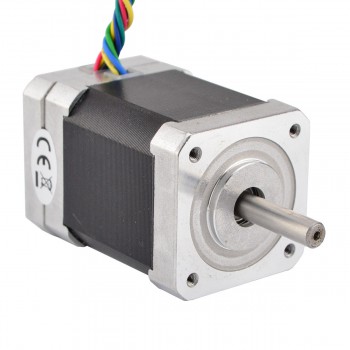

This 42BLS63-24-01 is a 24V, 3-phase, 8-pole BLDC motor with Hall sensors that delivers 52W at 4000 RPM and 0.125 N·m torque in a 42×42×63 mm frame with a Φ5×24 mm shaft and 8 leads.
Electrical Specification
Manufacturer Part Number: 42BLS63-24-01
Phase: 3
Poles: 8
Rated Voltage: 24V
Rated Speed: 4000±10%RPM
Rated Torque: 0.125Nm(17.10oz.in)
Rated Current: 3.4±10%A
Rated Power: 52W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute
Physical Specification
Frame Size: 42x42mm
Body Length: 63mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
Number of Leads: 8
Lead Length: 330mm
Sensor: Hall Sensor
Weight: 0.48kg
Connection
|
U |
V |
W |
+5V |
GND |
A |
B |
C |
|
YEL |
GRN |
BLU |
RED |
BLK |
YEL |
GRN |
BLU |
| BLDC Motor Specification | |
|---|---|
| Bearing Type | NMB Ball Bearing, C3 |
| Insulation Class | Class B |
| No. of Lead | 8 |
| No. of Phases | 3 |
| No. of Poles | 8 |
| Rated Current(A) | 3.4 |
| Rated Power(W) | 52 |
| Rated Speed(rpm) | 4000±10% |
| Rated Torque(Nm) | 0.125 |
| Rated Torque(oz.in) | 17.7 |
| Rated Voltage(V) | 24 |
| Sensor Type | Hall Sensor |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Flange Size(mm) | 42x42 |
| Body Length(mm) | 63 |
| Physical Specification | |
| Weight(g) | 480 |
