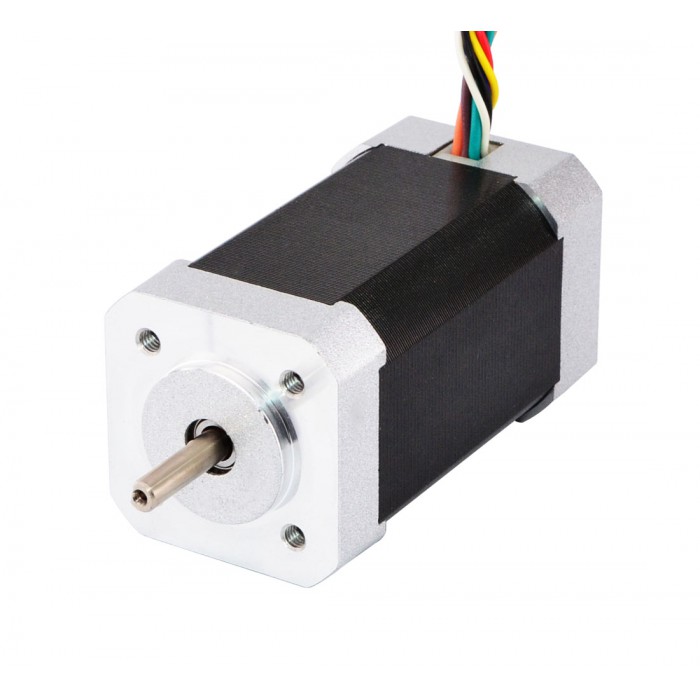

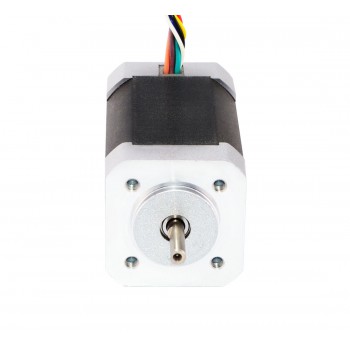

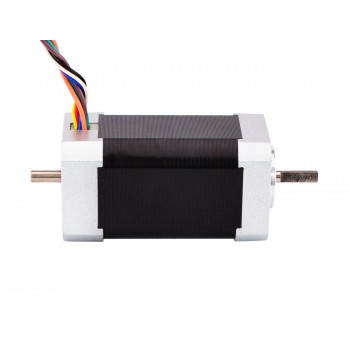

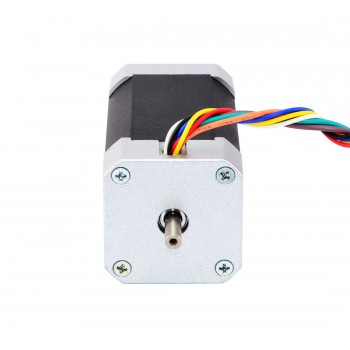

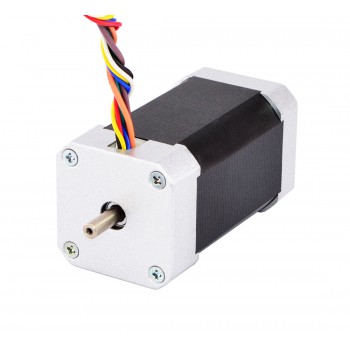

24V 4000RPM BLDC Motor 0.185Nm 77.5W 4.8A 42x42x80mm 42BLR Brushless DC Motor

NO.:SKU:42BLS80-24-01
Review: Post a review
Latest price:$47.85
Buy It Now:$36.81
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$35.28 $33.74 $32.21 $30.67
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 42BLS80-24-01
  • Phase: 3
  • Poles: 4
  • Rated Voltage: 24V
  • Rated Speed: 4000±10%RPM
  • Noload Speed: 5900RPM
  • Rated Torque: 0.185Nm(26.2oz.in)
  • Rated Current: 4.8±10%A
  • Noload Current: 0.5A
  • Rated Power: 77.5W
  • Insulation Class: Class B
  • Insulation Resistance: 100MΩ Min @500VDC
  • Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

  • Frame Size: 42x42mm
  • Body Length: 79.2mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • Shaft Type: D-cut
  • D-cut Length: 15mm
  • Rear Shaft Length: 13.5mm
  • Rear Shaft Diameter: Φ5mm
  • Number of Leads: 8
  • Lead Length: 300mm
  • Bearing Type: NMB Ball Bearing, C3
  • Sensor: Hall Sensor
  • Weight: 0.65kg

Connection

U
V
W
+5V
GND
A
B
C
ORG
GRN
BRW
RED
BLK
YEL
WHT
BLU

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: 24V 4000RPM 0.188Nm 78W 5.7A 42x42x79mm 42BLR Brushless DC Motor
Next: 24V 4000RPM 0.25Nm 105W 6.4A 42x42x100mm 42BLR Brushless DC Motor
BLDC Motor Specification
Bearing Type NMB Ball Bearing, C3
Insulation Class Class B
No. of Lead 8
No. of Phases 3
No. of Poles 4
Rated Current(A) 4.8
Rated Power(W) 77.5
Rated Speed(rpm) 4000±10%
Rated Torque(Nm) 0.185
Rated Torque(oz.in) 26.2
Rated Voltage(V) 24
Sensor Type Hall Sensor
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Flange Size(mm) 42x42
Body Length(mm) 79.2
Physical Specification
Weight(g) 650
