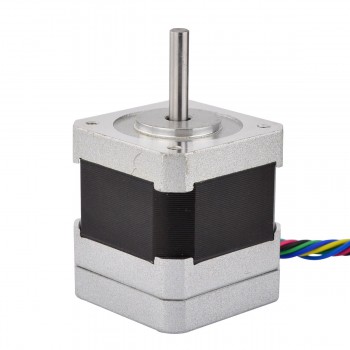

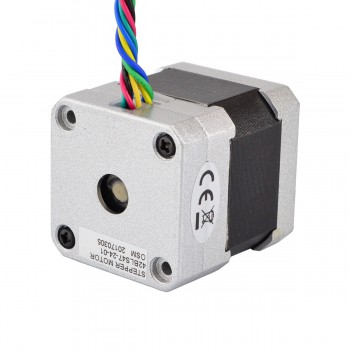

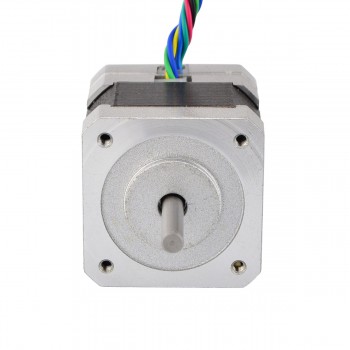

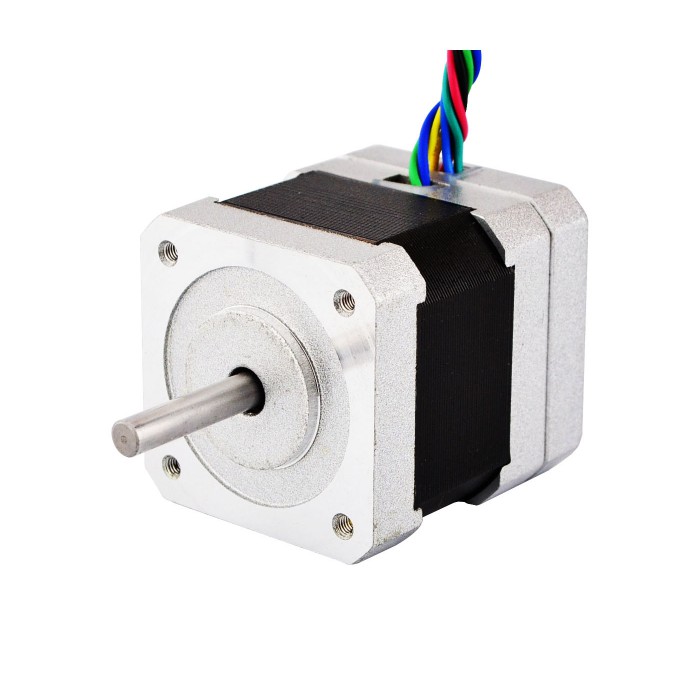

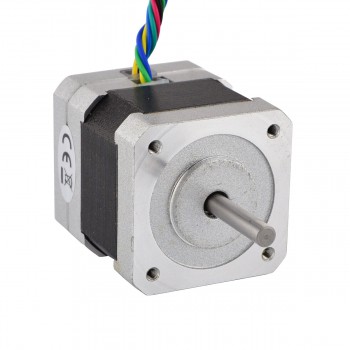

24V 24V BLDC Motor 4000RPM 0.063Nm 26W 1.9A 42x42x47mm 42BLR Brushless DC Motor

NO.:42BLS47-24-01
Post a review

Special Offer in December 2023:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till December 7th, 2023
Note:No coupon code needed, please place order directly!

Our Price:$31.81

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$30.22	5%
10	$29.58	7%
50	$28.63	10%
100	$27.67	13%

Affiliate Link

Description Specification Custom Options Review

Electrical Specification

Manufacturer Part Number: 42BLS47-24-01
Phase: 3
Poles: 8
Rated Voltage: 24V
Rated Speed: 4000±10%RPM
Rated Torque: 0.063Nm(8.92oz.in)
Rated Current: 1.9±10%A
Rated Power: 26W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

Frame Size: 42x42mm
Body Length: 47mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
Number of Leads: 8
Lead Length: 330mm
Sensor: Hall Sensor
Weight: 0.33kg

Connection

U	V	W	+5V	GND	A	B	C
YEL	GRN	BLU	RED	BLK	YEL	GRN	BLU

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 24V 24V BLDC Motor 4000RPM 0.0625Nm 26W 1.8A 42x42x40mm 42BLR Brushless DC Motor
Next: 24V High Speed BLDC Motor 4000RPM 0.125Nm 52.5W 3.4A 42x42x60mm 42BLR Brushless DC Motor

BLDC Motor Specification
Bearing Type	NMB Ball Bearing, C3
Insulation Class	Class B
No. of Lead	8
No. of Phases	3
No. of Poles	8
Rated Current(A)	1.9
Rated Power(W)	26
Rated Speed(rpm)	4000±10%
Rated Torque(Nm)	0.063
Rated Torque(oz.in)	8.92
Rated Voltage(V)	24
Sensor Type	Hall Sensor
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Flange Size(mm)	42x42
Body Length(mm)	47
Physical Specification
Weight(g)	330
