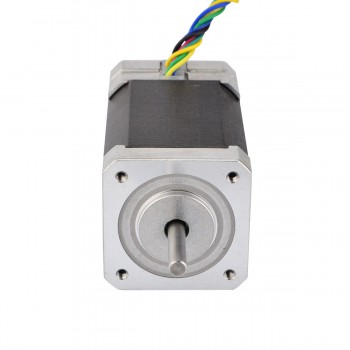

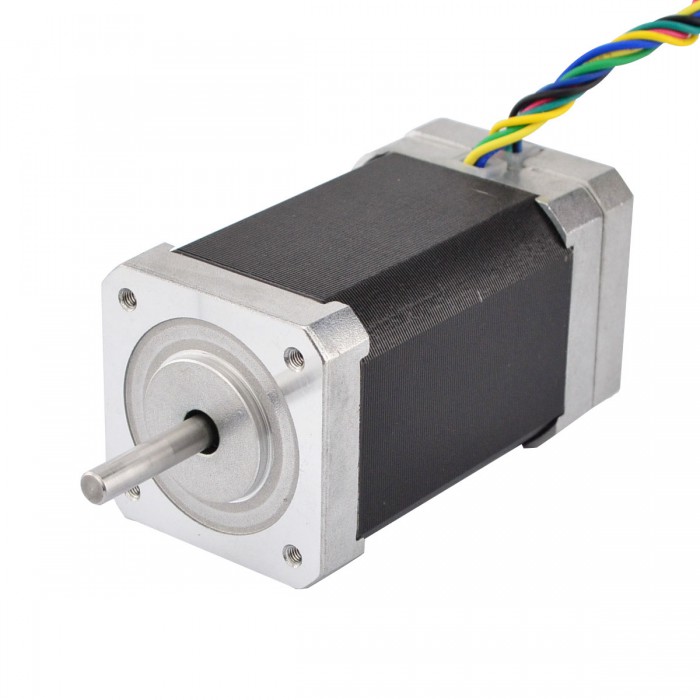

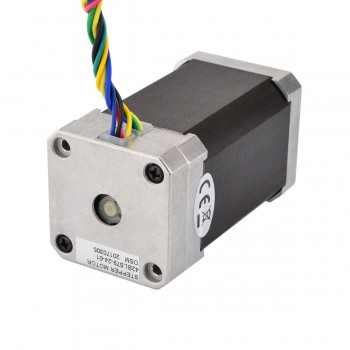

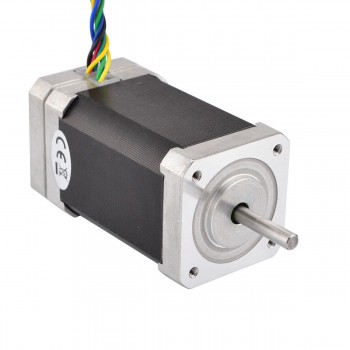

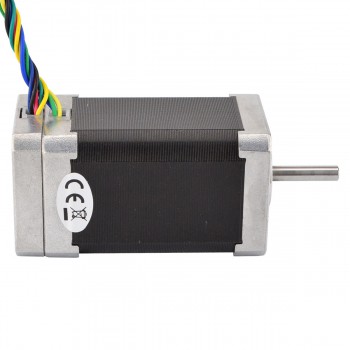

24V24V BLDC Motor 4000RPM 0.188Nm 78W 5.7A 42x42x79mm 42BLR Brushless DC Motor
Electrical Specification
Manufacturer Part Number: 42BLS79-24-01
Phase: 3
Poles: 8
Rated Voltage: 24V
Rated Speed: 4000±10%RPM
Rated Torque: 0.188Nm(26.62oz.in)
Rated Current: 5.7±10%A
Rated Power: 78W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute
Physical Specification
Frame Size: 42x42mm
Body Length: 79mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
Number of Leads: 8
Lead Length: 330mm
Sensor: Hall Sensor
Weight: 0.63kg
Connection
|
U
|
V
|
W
|
+5V
|
GND
|
A
|
B
|
C
|
|
YEL
|
GRN
|
BLU
|
RED
|
BLK
|
YEL
|
GRN
|
BLU
|
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| BLDC Motor Specification | |
|---|---|
| Bearing Type | NMB Ball Bearing, C3 |
| Insulation Class | Class B |
| No. of Lead | 8 |
| No. of Phases | 3 |
| No. of Poles | 8 |
| Rated Current(A) | 5.7 |
| Rated Power(W) | 78 |
| Rated Speed(rpm) | 4000±10% |
| Rated Torque(Nm) | 0.188 |
| Rated Torque(oz.in) | 26.62 |
| Rated Voltage(V) | 24 |
| Sensor Type | Hall Sensor |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Flange Size(mm) | 42x42 |
| Body Length(mm) | 79 |
| Physical Specification | |
| Weight(g) | 630 |
