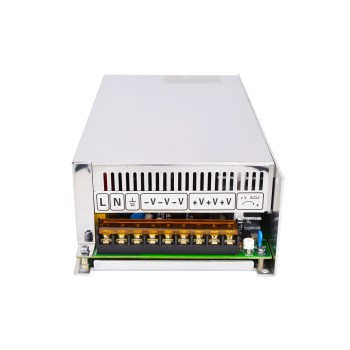

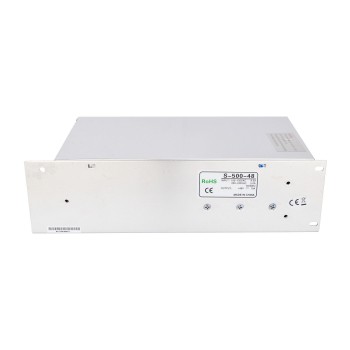

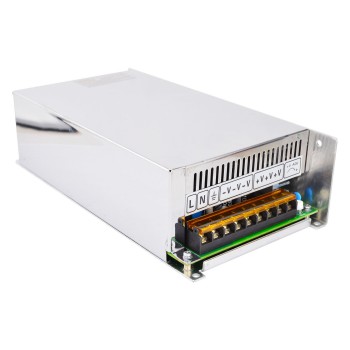

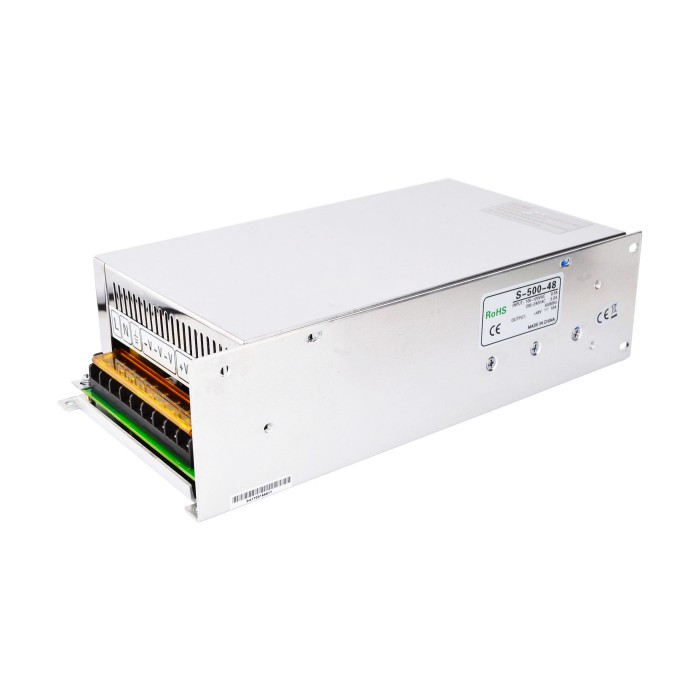

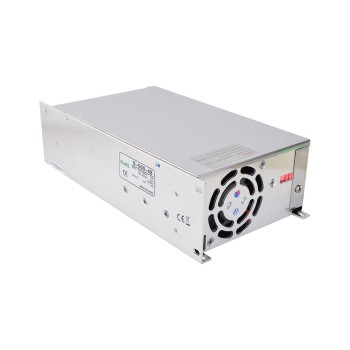

500W 48V 10.4A 115/230V Switching Power Supply for CNC Stepper Motor / Servo Motor System
This professional 500W 48V 10.5A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System.
Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling).
Key Features
48V DC 10.5A output
AC input voltage range: 90~135VAC/180~264VAC
Forced air cooling by built-in DC fan
Low output ripple and yawp
Over current, over voltage, short circuit and overheat protections
215*115*50mm (L*W*H)
Resources
Full Datasheet: S-500-48.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Power Supply Specification | |
|---|---|
| Output Voltage(V) | 48 |
| Power(W) | 500 |
| Max. Output Current(A) | 10.5 |
| Input Voltage(V) | 115/230 |
| Physical Specification | |
| Weight(g) | 1500 |
