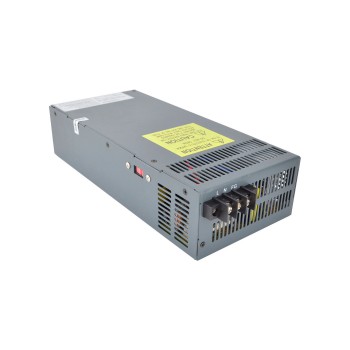

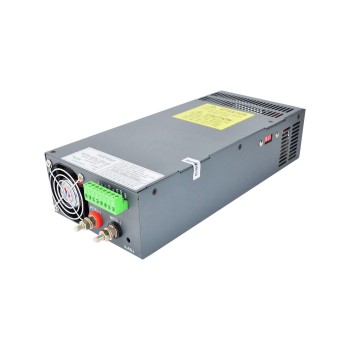

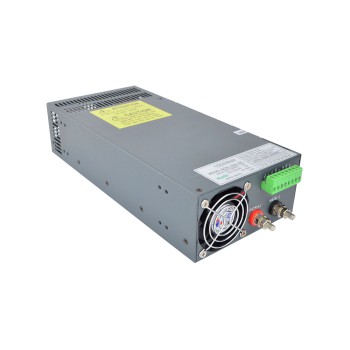

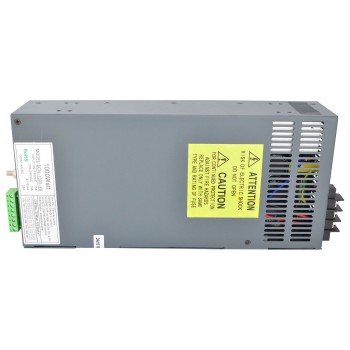

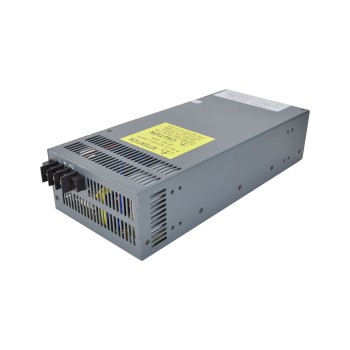

1000W 48V 21A 115/230VAC Switching Power Supply for CNC Stepper Motor / Servo Motor System
This professional 1000W 48V 21A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System.
115V and 230V can be chosed by switch. Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling).
Key Features
48V DC 21A output
AC input voltage range: 90~132V/180~264VAC
115V/230V AC selected by switch
Forced air cooling by built-in DC fan
Low output ripple and yawp
Over current, over voltage, short circuit and overheat protections
291*132*68mm (L*W*H)
Resources
Full Datasheet: S-1000-48.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Power Supply Specification | |
|---|---|
| Output Voltage(V) | 48 |
| Power(W) | 1000 |
| Max. Output Current(A) | 21 |
| Input Voltage(V) | 115/230 |
| Physical Specification | |
| Weight(g) | 2500 |
