3 Axis CNC Kit 13.0Nm(1841oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver & Power Supply

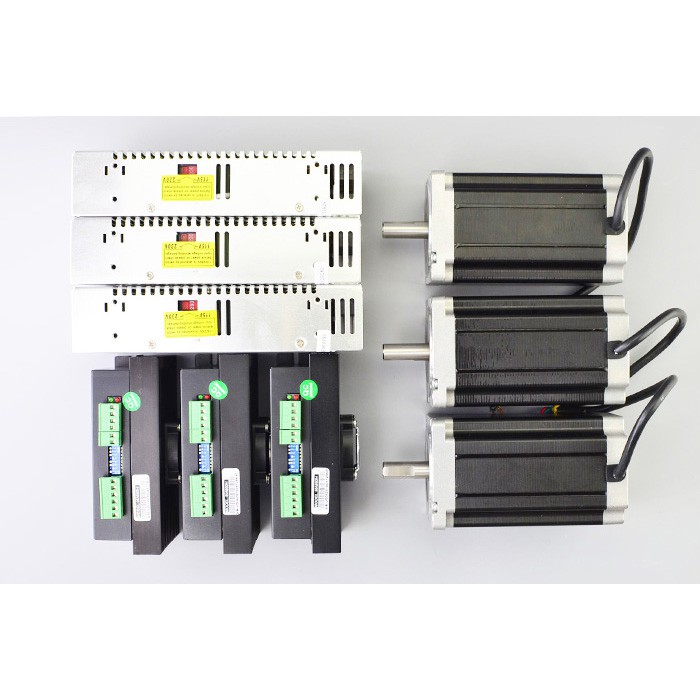

This CNC kit included:

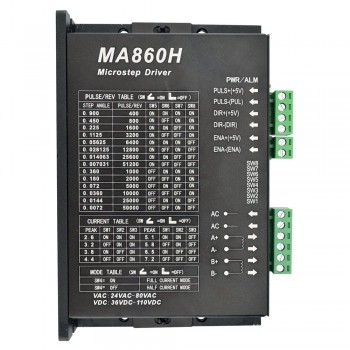

• 3 x Stepper Motor Driver 2.4-7.2A Max 80VAC or 110VDC MA860H

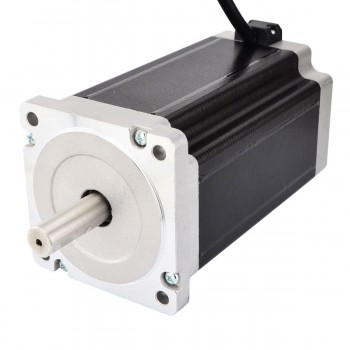

• 3 x 13Nm (1841oz.in) of Nema 34 Stepper Motor

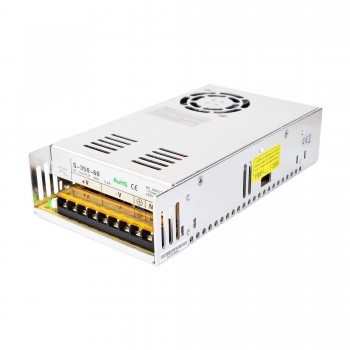

• 3 x 350W 60V 5.9A 115/230V Switching Power Supply

Driver Specification

• Supply voltage up to 80VAC or +110VDC
• Output current up to 7.2A
• Self-adjustment technology
• Pure-sinusoidal current control technology
• Pulse input frequency up to 300 KHz
• TTL compatible and optically isolated input
• Automatic idle-current reduction
• 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
• Suitable for 2-phase and 4-phase motors
• Short-voltage, over-voltage, over-current and short-cicuit protection

Motor Specification

• Manufacturer Part Number: 34HS59-5004S
• Motor Type: Bipolar Stepper
• Step Angle: 1.8 deg
• Holding Torque: 13Nm(1841oz.in)
• Rated Current/phase: 5A
• Voltage: 5V
• Phase Resistance: 1ohms
• Inductance: 11mH ± 20%(1KHz)
• Frame Size: 86 x 86mm
• Body Length: 150mm
• Shaft Diameter: Φ14mm
• Shaft Length: 37mm
• D-cut Length: 25mm
• Number of Leads: 4
• Lead Length: 500mm
• Weight: 5kg

Connection

Power Specification

• 60V DC 5.9A output
• AC input voltage range: 93~132V/176~264VAC
• 115V/230V AC selected by switch
• Forced air cooling by built-in DC fan
• Low output ripple and yawp
• Over current, over voltage, short circuit and overheat protections
• 215*115*50mm (L*W*H)

Resources

• Motor Datasheet: 34HS59-5004S.pdf
• Driver Manual: MA860H.pdf
• Power Supply Manual: S-350-60.pdf
