3 Axis 3.0Nm(425oz.in) Nema 23 Stepper Motor & Driver & Power Supply-Update

NO.:SKU:3-DM542T-23HS45-R
Review: Post a review
Latest price:$238.25
Buy It Now:$183.27
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - Max
$171.50 $162.91 $162.91
Add To Cart

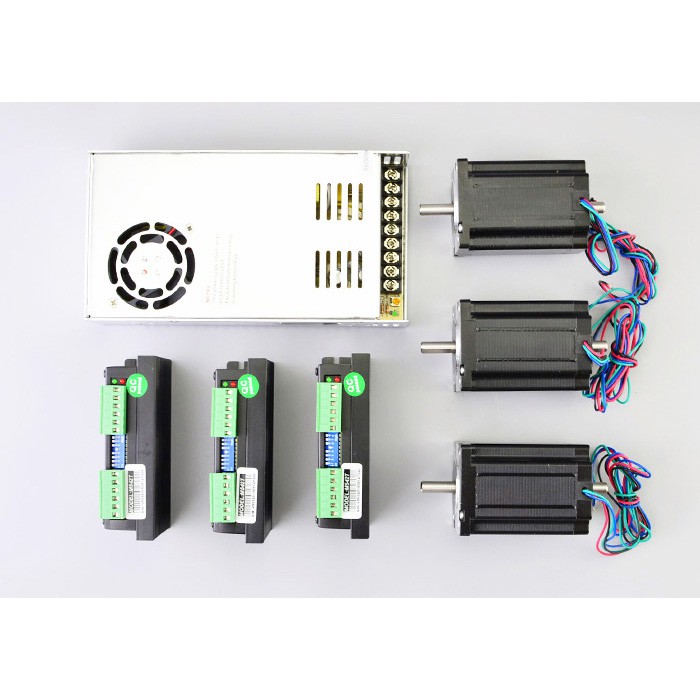

This CNC kit included:

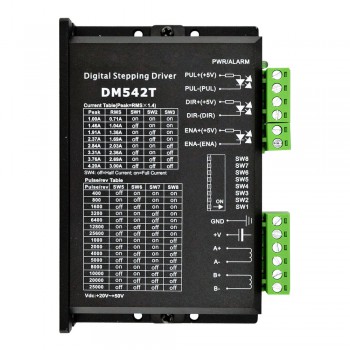

  • 3 x Digital Stepper Drive 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor

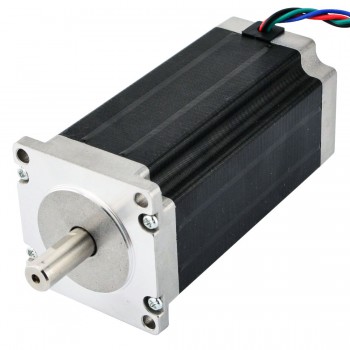

  • 3 x 3Nm (425oz.in) of Nema 23 Stepper Motor

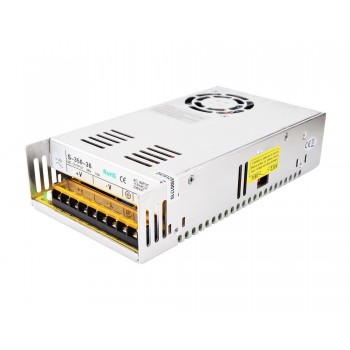

  • 1 x 350W 36V 9.7A 115/230V Switching Power Supply

Driver Specification

  • Input voltage 20-50VDC
  • Anti-Resonance provides optimal torque and nulls mid-range instability
  • Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
  • Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
  • 15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
  • Soft-start with no “jump” when powered on
  • 8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A
  • Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
  • Automatic idle-current reduction
  • Suitable for 2-phase and 4-phase motors
  • Support PUL/DIR mode
  • Over-voltage and over-current protections

Motor Specification

  • Manufacturer Part Number: 23HS45-3504S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 3Nm(425oz.in)
  • Rated Current/phase: 3.5A
  • Voltage: 4.2V
  • Phase Resistance: 1.2ohms
  • Inductance: 5mH ± 20%(1KHz)
  • Frame Size: 57 x 57mm
  • Body Length: 113mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 1.6kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Power Specification

  • 36V DC 9.8A output
  • AC input voltage range: 93~132V/176~264VAC
  • 115V/230V AC selected by switch
  • High efficiency low cost
  • Forced air cooling by built-in DC fan
  • Low output ripple and yawp
  • Over current, over voltage, short circuit and overheat protections
  • 215*115*50mm (L*W*H)
