3 Axis CNC Stepper Motor Router Kit 3.0Nm(425oz.in) 1.8 Deg Nema 23 Stepper Motor & Driver
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!

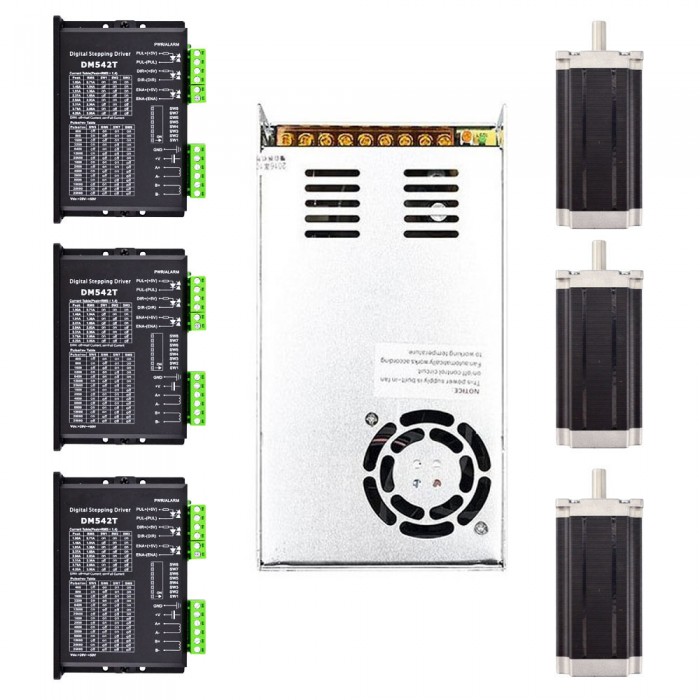

This CNC kit included:
3 x Digital Stepper Drive 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor
3 x 3Nm (425oz.in) of Nema 23 Stepper Motor
1 x 400W 36V 11A 115/230V Switching Power Supply

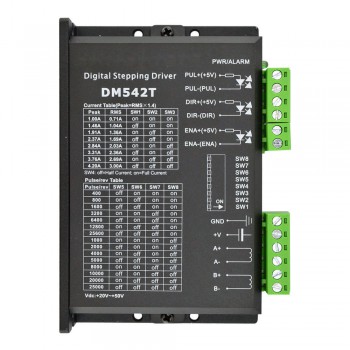

Driver Specification
Input voltage 20-50VDC
Anti-Resonance provides optimal torque and nulls mid-range instability
Motor auto-identification and parameter auto-configuration when power on, offer quick responses with different motors
Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
Soft-start with no “jump” when powered on
8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A
Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Support PUL/DIR mode
Over-voltage and over-current protections

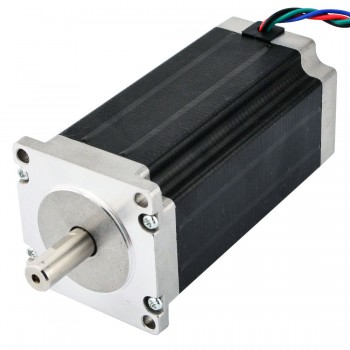

Motor Specification
Manufacturer Part Number: 23HS45-3504S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 3Nm(425oz.in)
Rated Current/phase: 3.5A
Voltage: 4.2V
Phase Resistance: 1.2ohms
Inductance: 5mH ± 20%(1KHz)
Frame Size: 57 x 57mm
Body Length: 113mm
Shaft Diameter: Φ10mm
Shaft Length: 24mm
D-cut Length: 20mm
Number of Leads: 4
Lead Length: 400mm
Weight: 1.6kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|

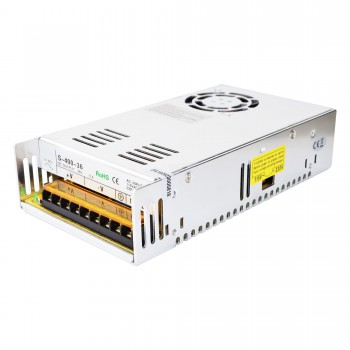

Power Specification
36V DC 11A output
AC input voltage range: 93~132V/176~264VAC
115V/230V AC selected by switch
Forced air cooling by built-in DC fan
Low output ripple and yawp
Over current, over voltage, short circuit and overheat protections
215*115*50mm (L*W*H)
Resources
Motor Datasheet: 23HS45-3504S.pdf
Motor Torque Curve: 23HS45-3504S_Torque_Curve.pdf
Driver Manual: DM542T.pdf
Power Supply Manual: S-400-36.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Step Angle(°) | 1.8 / 1.8 |
| Body Length(mm) | 113 |
| Holding Torque (Ncm) | 300 |
| Holding Torque (oz.in) | 424.8 |
| Inductance(mH) | 5 |
| Lead Length(mm) | 400 |
| Motor Nema Size | Nema 23 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1.2 |
| Rated Current (A) | 3.5 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 24 |
| Stepper Driver Specification | |
| Driving Voltage(V) | 20 - 50 |
| Output Current(A) | 1 - 4.2 |
| Microstep(Steps/rev.) | 400 - 25600 |
| Max. Pulse Input(kHZ) | 200 |
| Pulse Width(μs) | 2.5 |
| Physical Specification | |
| Weight(g) | 7500 |
