3 Axis TB6560 CNC Stepper Motor Kit 0.45Nm(64oz.in) 1.8 Deg Nema 17 Stepper Motor & Driver
-
Manuals and Documentation:
Driver Manual:
Motor Datasheet:
Power Supply Manual:

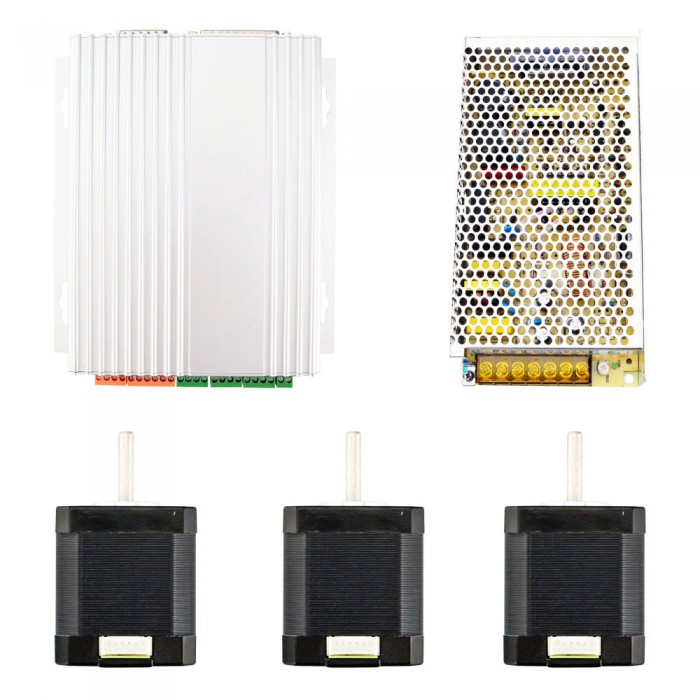

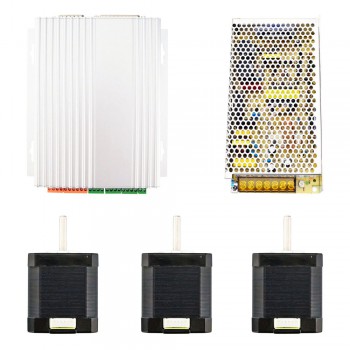

This CNC kit included:
1 x 3 Axis TB6560 CNC Stepper Motor Driver Board
3 x 0.45Nm (64oz.in) of Nema 17 Stepper Motor
1 x 150W 24V 6.5A 115/230V Switching Power Supply
1 x DB25 Parallel Cable & Manual CD

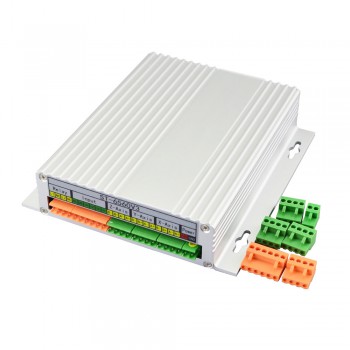

3 Axis TB6560 CNC Driver Board
Features:
Chip: Toshiba TB6560AHQ, 3.5A max per axis
Microstep resolutions: 1, 1/2, 1/8, 1/16
Input voltage: DC12–30V (24V nominal)
Current adjustment: 20%, 50%, 75%, 100% via DIP switch
Half current mode: automatic when no step signal (reduces motor heating)
Onboard relay: 227V 10A
Isolation: 1000V DC-DC converter + optocouplers
Enclosure: aluminum case (passive cooling, no fan)
Software support: MACH3, KCAM4, EMC2 (parallel port)
Protection: overload, overcurrent, overtemperature
Manual control: onboard circuit included

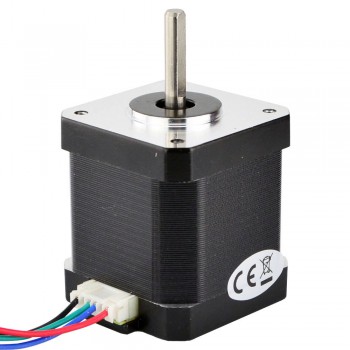

Stepper Motor
Manufacturer Part Number: 17HS19-1684S1
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 0.45Nm (64oz.in)
Rated Current/phase: 1.68A
Voltage: 2.8V
Phase Resistance: 1.65ohms
Inductance: 2.8mH ± 20%(1KHz)
Frame Size: 42 x 42mm
Body Length: 48mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
Number of Leads: 4
Lead Length: 1000mm
Weight: 400g

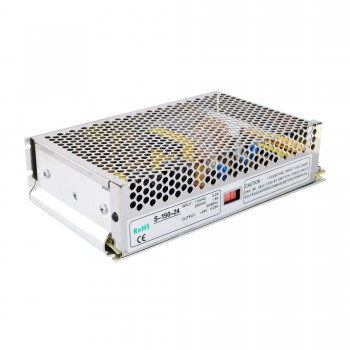

Switching Power Supply
24V DC 6.5A output
AC input voltage range: 92~132V/175~264VAC
115V/230V AC selected by switch
Free air cooling convection
Over current, over voltage, short circuit and overheat protections
199*110*50mm (L*W*H)
| Motor Specification | |
|---|---|
| Step Angle(°) | 1.8 / 1.8 |
| Body Length(mm) | 48 |
| Holding Torque (Ncm) | 45 |
| Holding Torque (oz.in) | 63.7 |
| Inductance(mH) | 2.8 |
| Lead Length(mm) | 1000 |
| Motor Nema Size | Nema 17 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1.65 |
| Rated Current (A) | 1.68 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Stepper Driver Specification | |
| Driving Voltage(V) | 12 - 30 |
| Output Current(A) | 0.7 - 3.5 |
| Microstep(Steps/rev.) | 200 - 3200 |
| Max. Pulse Input(kHZ) | 40 |
| Physical Specification | |
| Weight(g) | 3000 |
