3 Axis CNC Router Kit 3.0Nm(425oz.in) 1.8 Deg Nema 23 Stepper Motor & Driver

3 Axis CNC Router Kit 3.0Nm(425oz.in) 1.8 Deg Nema 23 Stepper Motor & Driver
NO.:3-DM542T-S30
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$201.02
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $190.97 5%
5 $186.95 7%
10 $180.92 10%
50 $174.89 13%
Add To Cart

S Series 3 Axis CNC Router Kit 3.0Nm(425oz.in) Nema 23 Stepper Motor & Driver

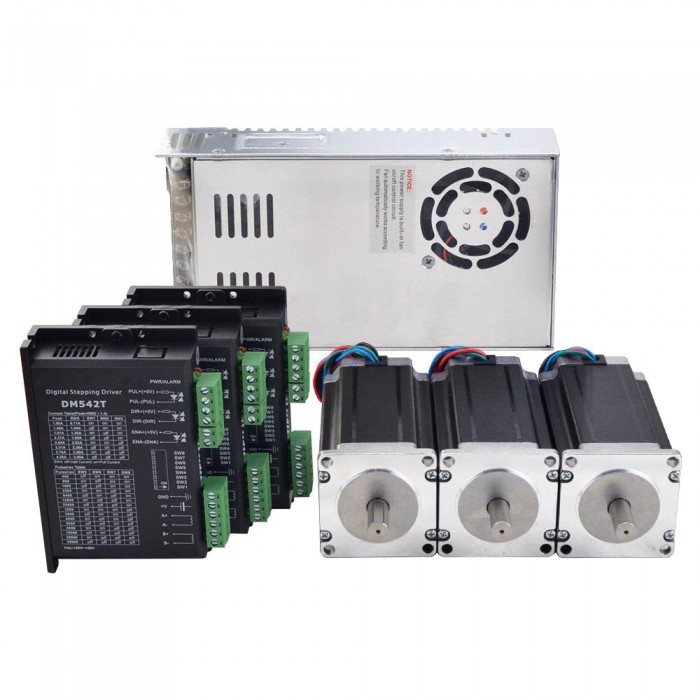

This CNC kit includs:

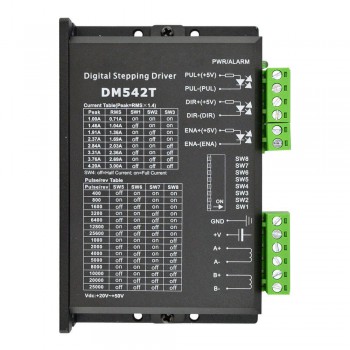

3 x Digital Stepper Driver 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor

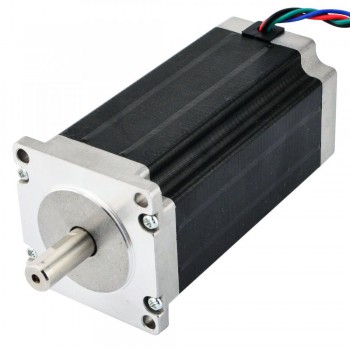

3 x Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC

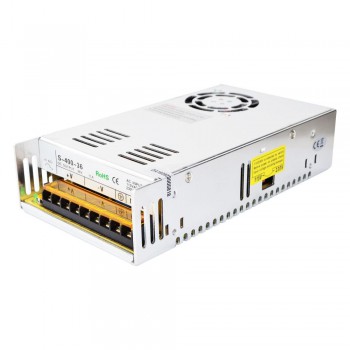

1 x 400W 36V 11A 115/230V Switching Power Supply



Driver Specification

Input voltage 20-50VDC

Anti-Resonance provides optimal torque and nulls mid-range instability

Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors

Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement

15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000

Soft-start with no “jump” when powered on

8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A

Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input

Automatic idle-current reduction

Suitable for 2-phase and 4-phase motors

Support PUL/DIR mode

Over-voltage and over-current protections



Motor Specification

Manufacturer Part Number: 23HS45-4204S

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 3.0Nm(425oz.in)

Rated Current/phase: 4.2A

Phase Resistance: 0.9ohms

Inductance: 3.8mH ± 20%(1KHz)

Frame Size: 57 x 57mm

Body Length: 113mm

Shaft Diameter: Φ10mm

Shaft Length: 24mm

D-cut Length: 20mm

Number of Leads: 4

Lead Length: 400mm



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Power Specification

36V DC 11A output

AC input voltage range: 93~132V/176~264VAC

115V/230V AC selected by switch

Forced air cooling by built-in DC fan

Low output ripple and yawp

Over current, over voltage, short circuit and overheat protections

215*115*50mm (L*W*H)



Resources

Motor Datasheet: 23HS45-4204S.pdf

Motor Torque Curve: 23HS45-4204S_Torque_Curve.pdf

Driver Manual: DM542T.pdf

Power Supply Manual: S-400-36.pdf
