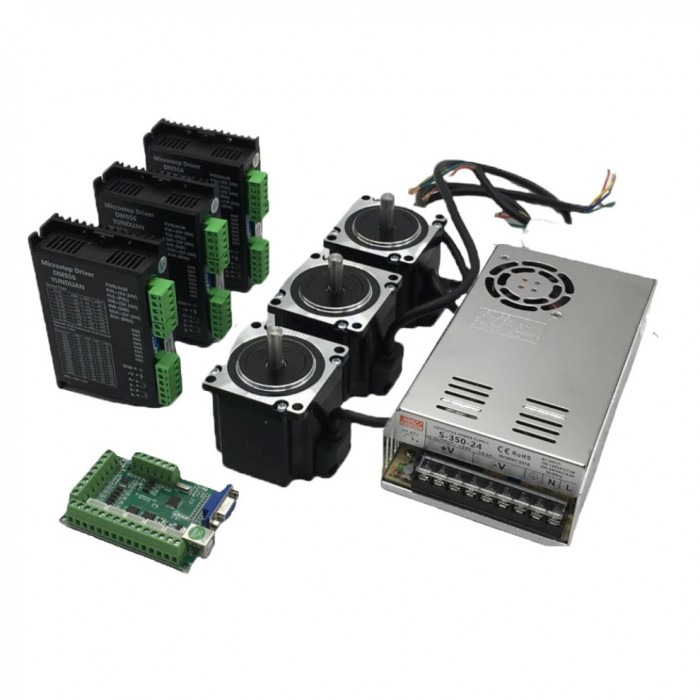

3 Axis Kit Nema 23 1.8° 3Nm 2-Phase Stepper Motor, Driver & Power Supply CNC Kit

3 Axis Kit Nema 23 1.8° 3Nm 2-Phase Stepper Motor, Driver & Power Supply CNC Kit

Features:

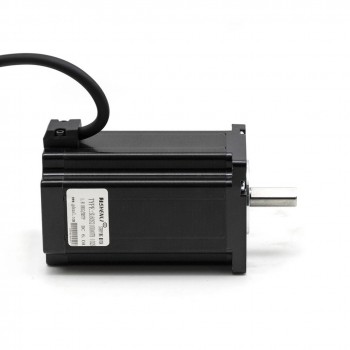

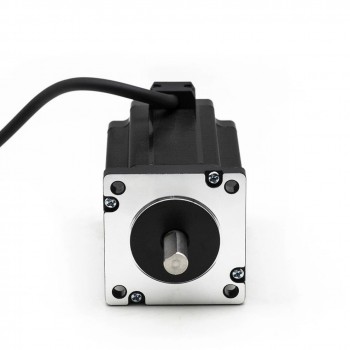

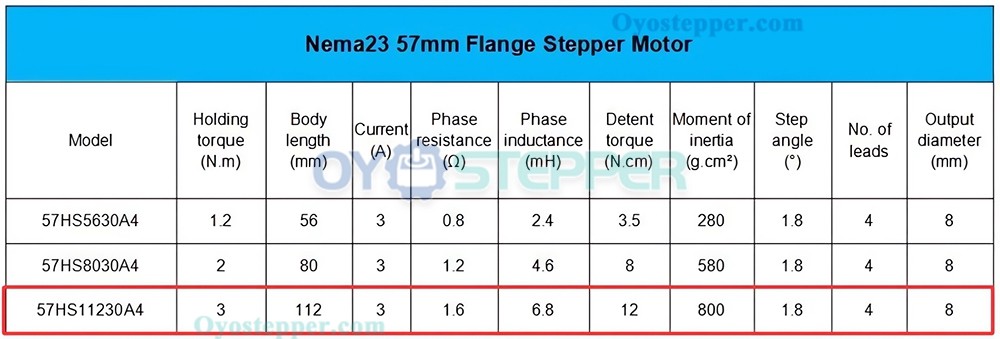

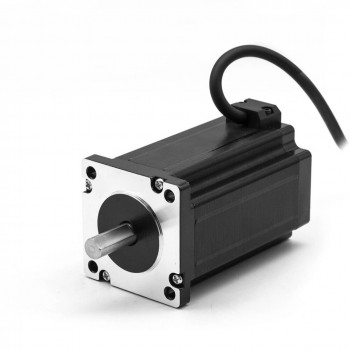

3 x NEMA 23 Stepper Motors:(57HS11230A4)

Holding Torque: 3Nm

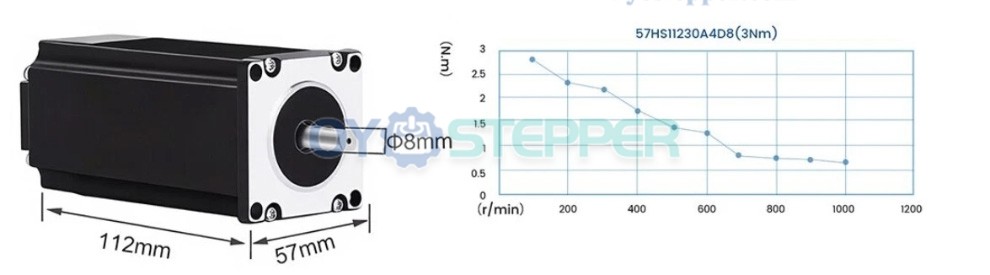

Frame Size: 57 x 57 x 112 mm

Shaft: 8 mm (with Φ7.5mm flat)

Step Angle: 1.8° (200 steps/revolution)

Phase/Leads: 2-Phase, 4-Lead

Current: 3 A/phase

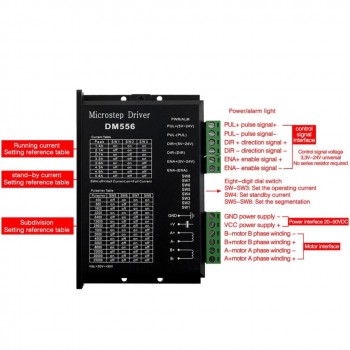

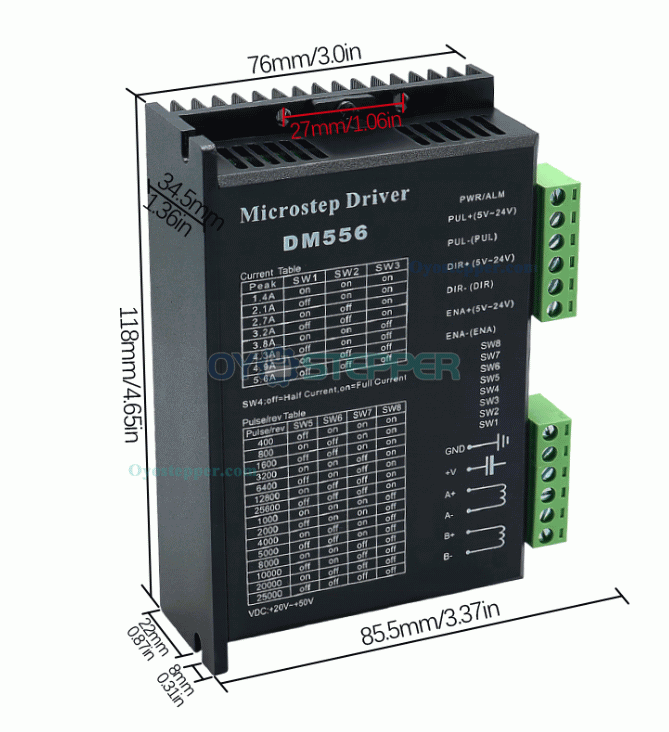

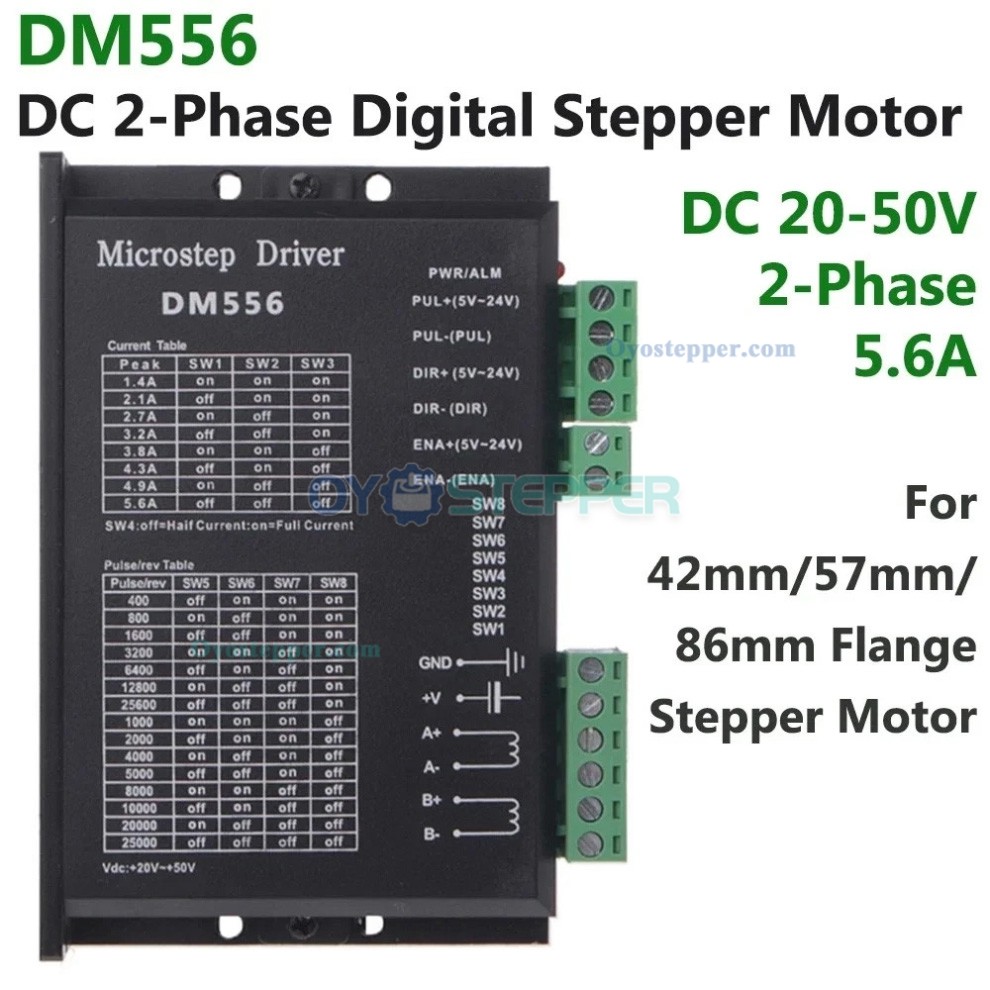

3 x DM556 Stepper Drivers:

16 selectable microstep resolutions (up to 25,600 steps/revolution)

8-level adjustable output current

Operating Voltage: DC 20-50 V

Compatible with motors under 5.6 A

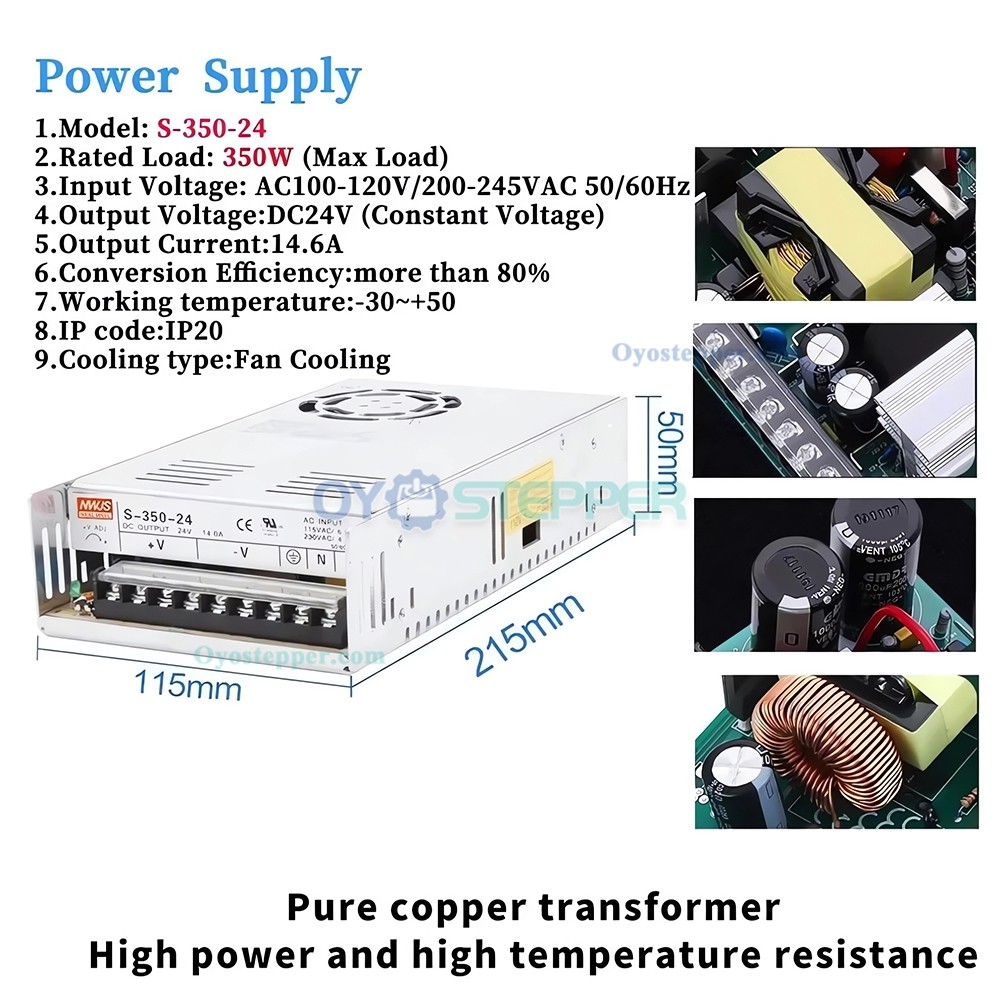

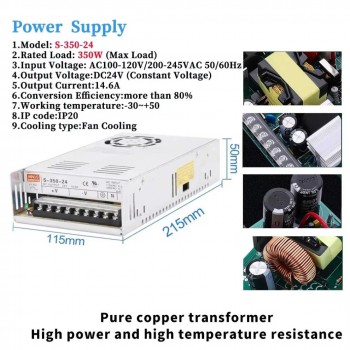

1 x 350W Switching Power Supply:

Output: DC 24 V

Efficiency: >90%

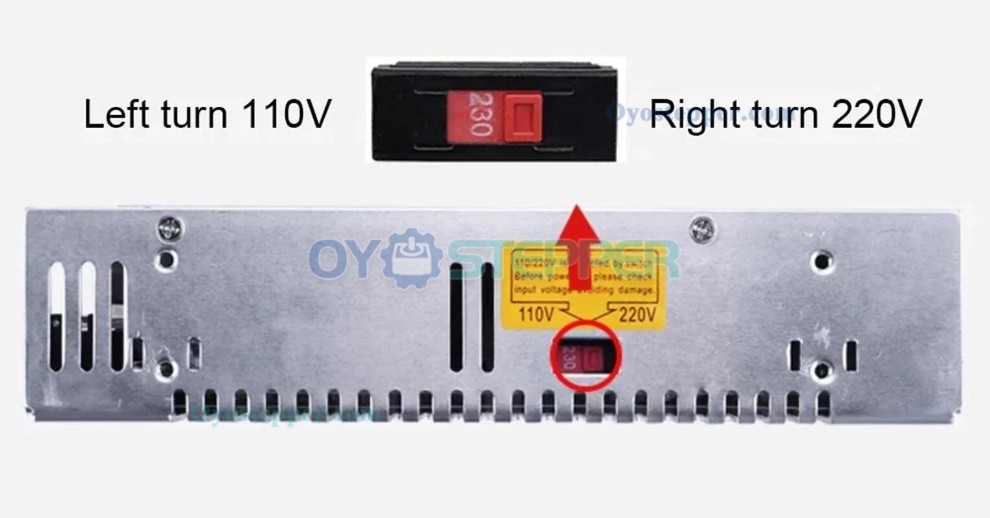

Input Voltage: AC 110V/220V (switch-selectable)

Protections: Over-current, Over-voltage, Over-load

Housing: Vented design for heat dissipation

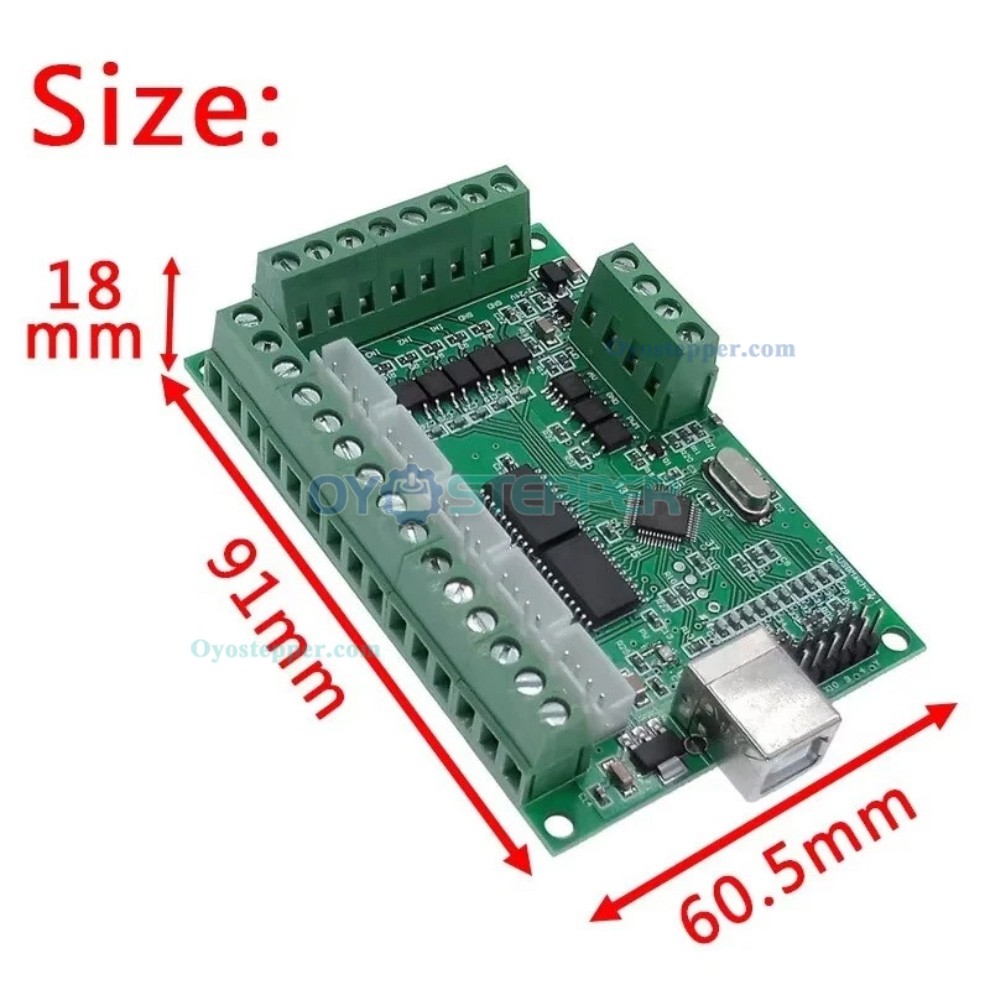

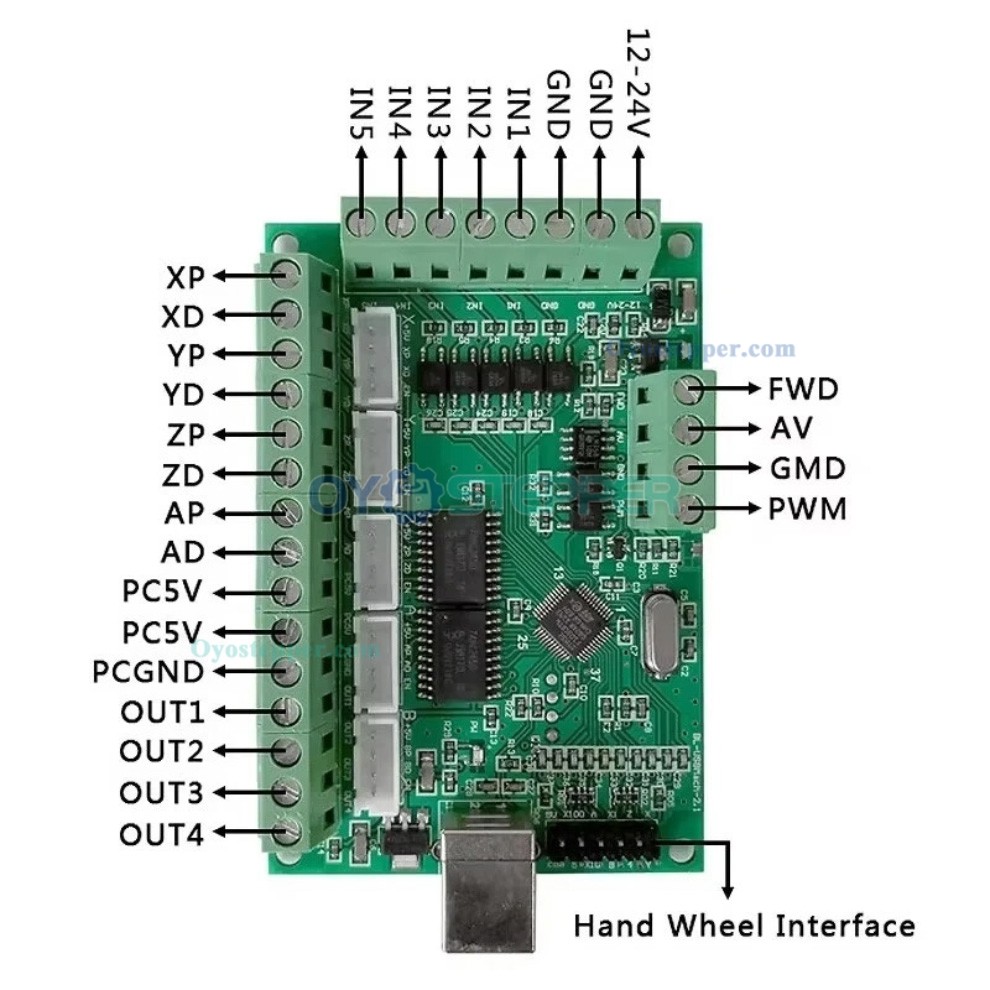

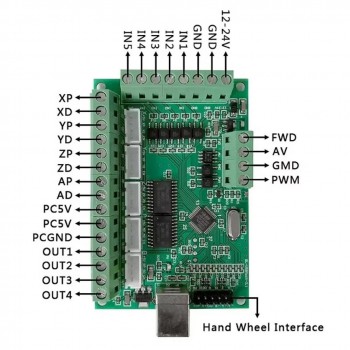

1 x 5-Axis Mach3 Control Board:

Supports up to 5-axis linear interpolation

Protections: Over-current, Over-voltage, Position error;
