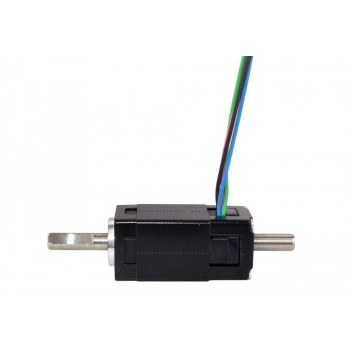

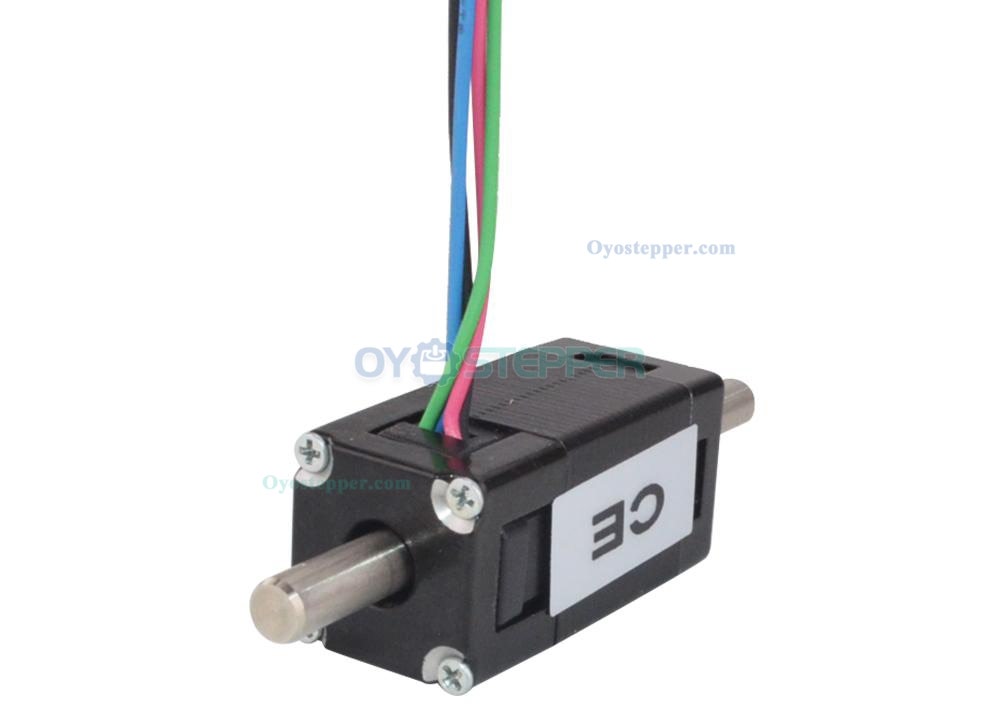

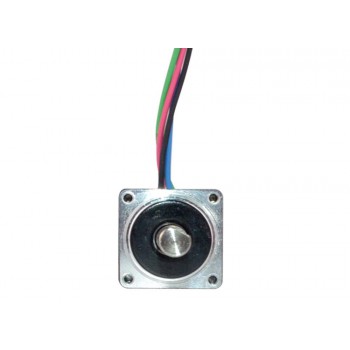

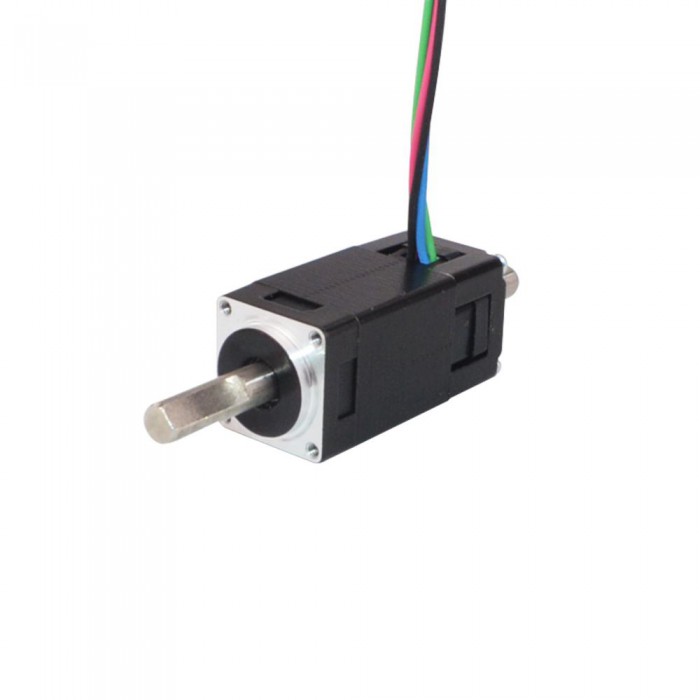

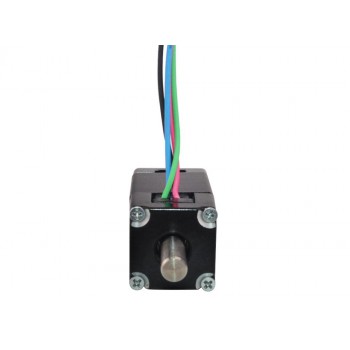

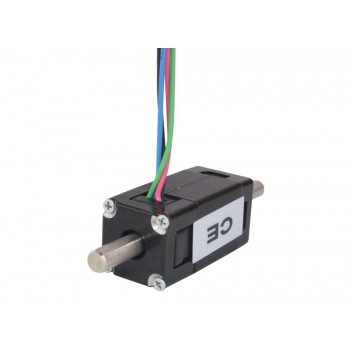

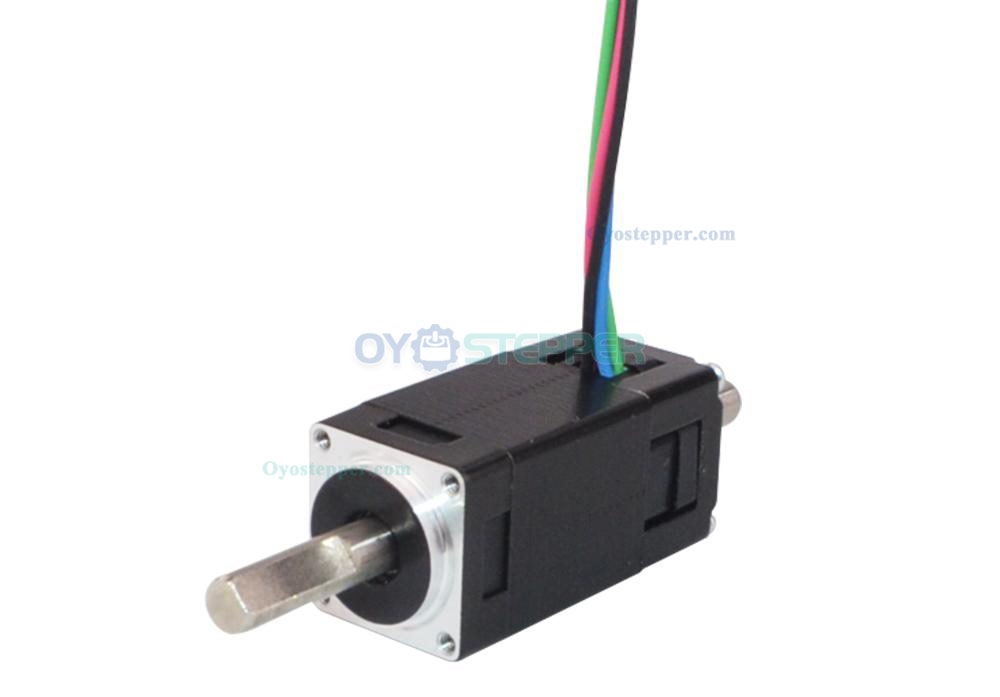

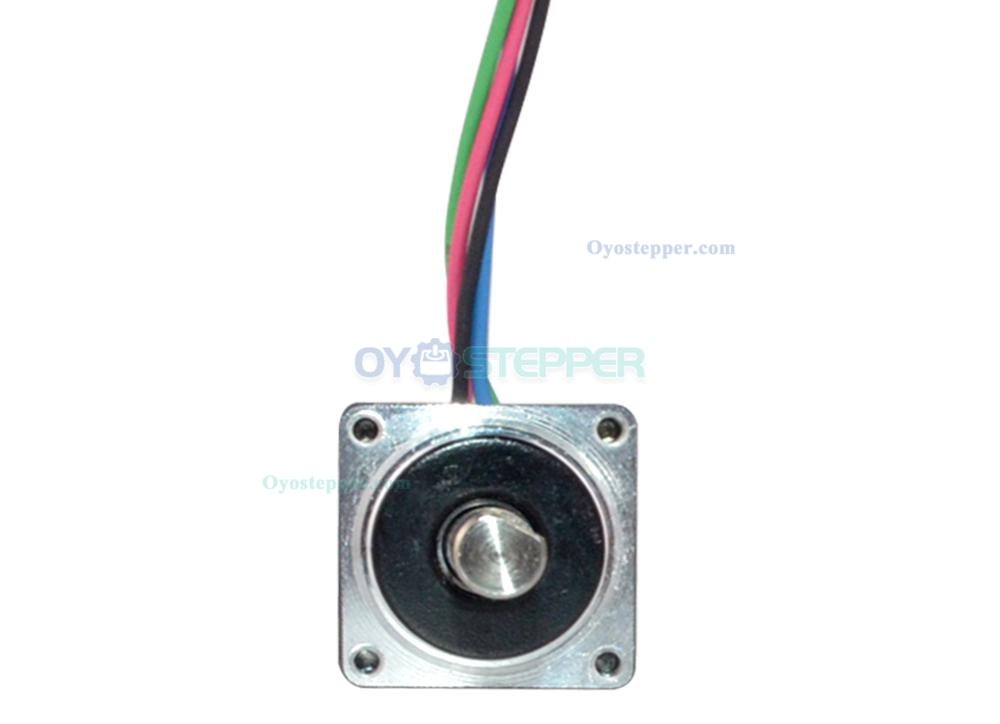

Mini Dual Shaft Nema 6 Stepper Motor Bipolar 1.8 Degree 0.58Ncm (0.82oz.in) 0.3A 14x14x30mm 4 Wires
- Manuals and Documentation: Full Datasheet:
Our Price:$99.97
Mini Daul Shaft Nema 6 Stepper Motor Bipolar 1.8deg 0.58Ncm (0.82oz.in) 0.3A 14x14x30mm 4 Wires
Electrical Specification
Manufacturer Part Number: 6HS12-0304D
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 0.58 Ncm(0.82oz.in)
Rated Current/phase: 0.3 A
Phase Resistance: 22 ohms
Inductance: 3.4 mH ± 20%(1KHz);

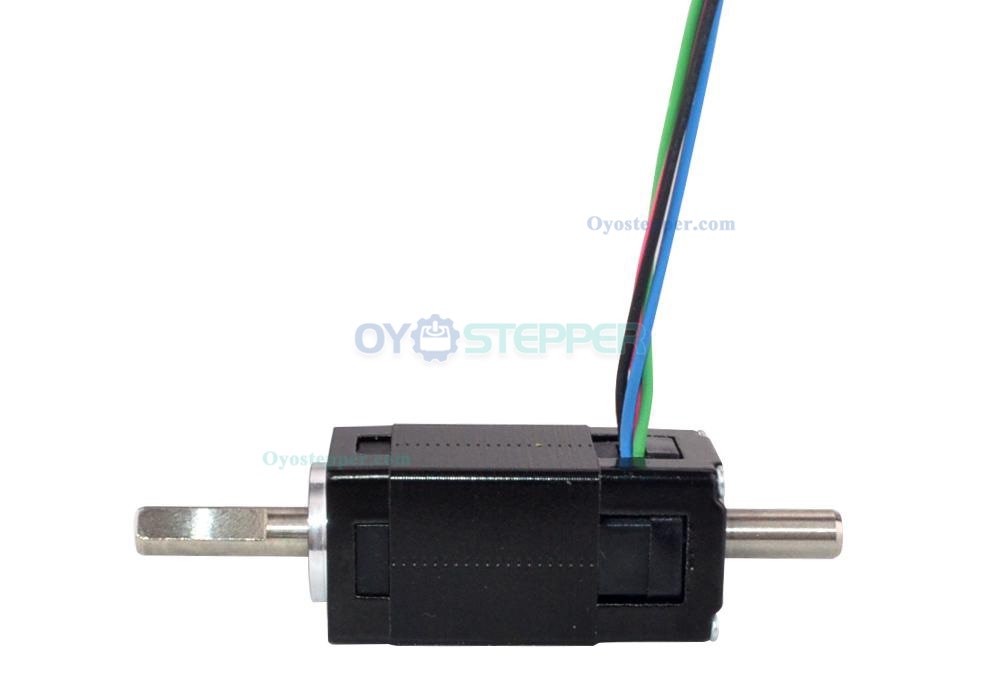

Physical Specification
Frame Size: 14 x 14 mm
Body Length: 30 mm
Shaft Diameter: Φ4 mm
Front Shaft Length: 15 mm
D-cut Shaft Length: 10 mm
Rear Shaft Length: 15 mm
Number of Leads: 4
Lead Length: 300 mm
Weight: 30 g

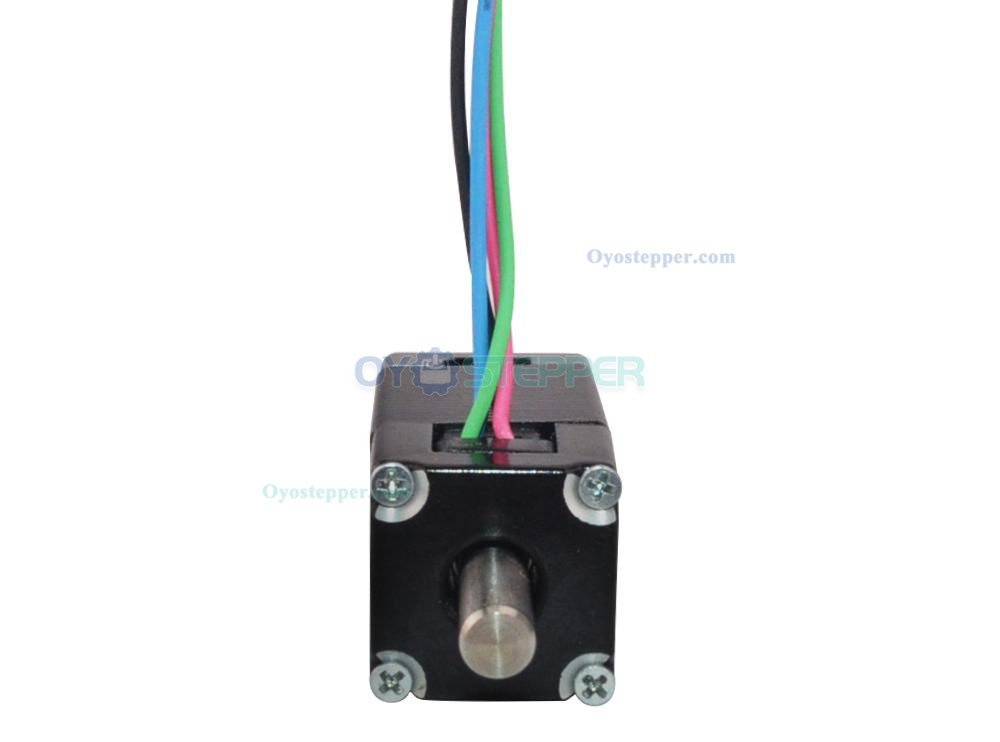

Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
| Physical Specification | |
|---|---|
| Frame Size(mm) | 14x14 |
| Body Length(mm) | 30 |
| Lead Length(mm) | 300 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 15 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Dual Shaft |
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 0.58 |
| Holding Torque (oz.in) | 0.82 |
| Inductance(mH) | 3.4 |
| Phase Resistance(ohm) | 22 |
| Rated Current (A) | 0.3 |
| Step Angle(°) | 1.8 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
