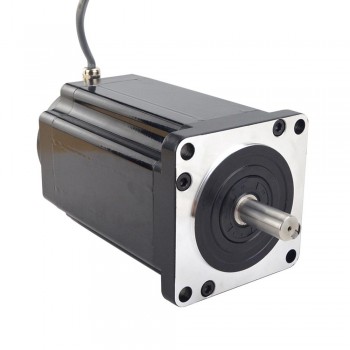

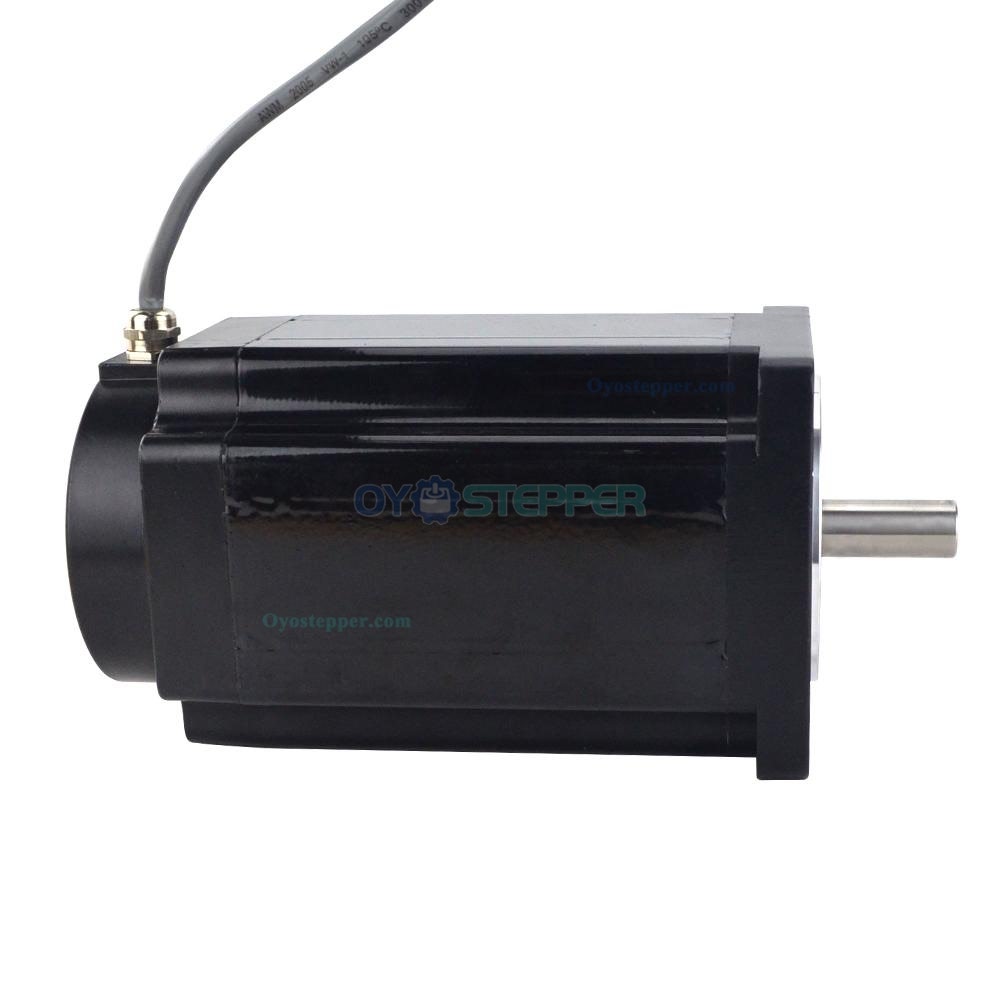

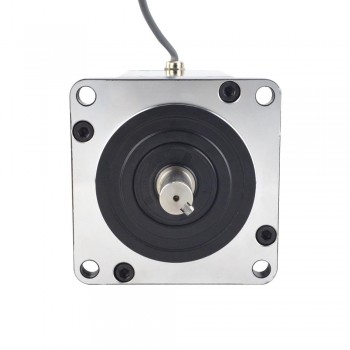

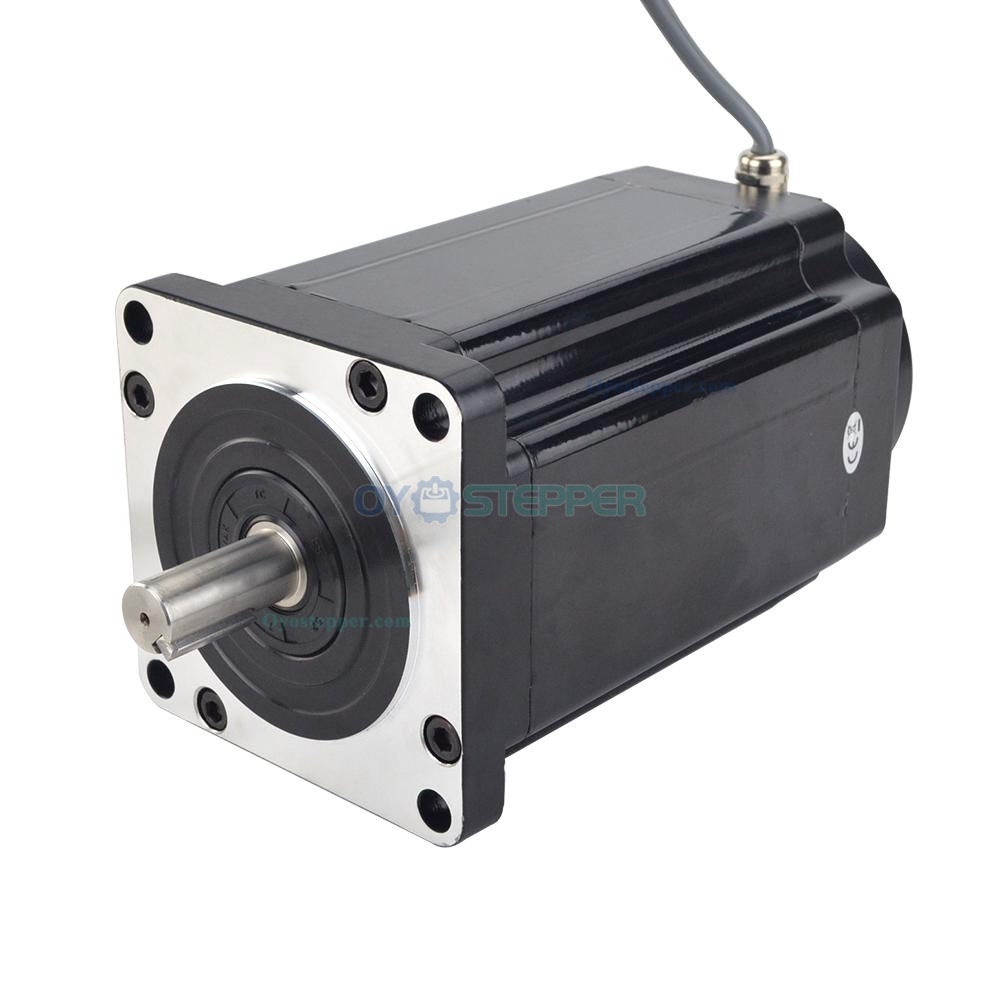

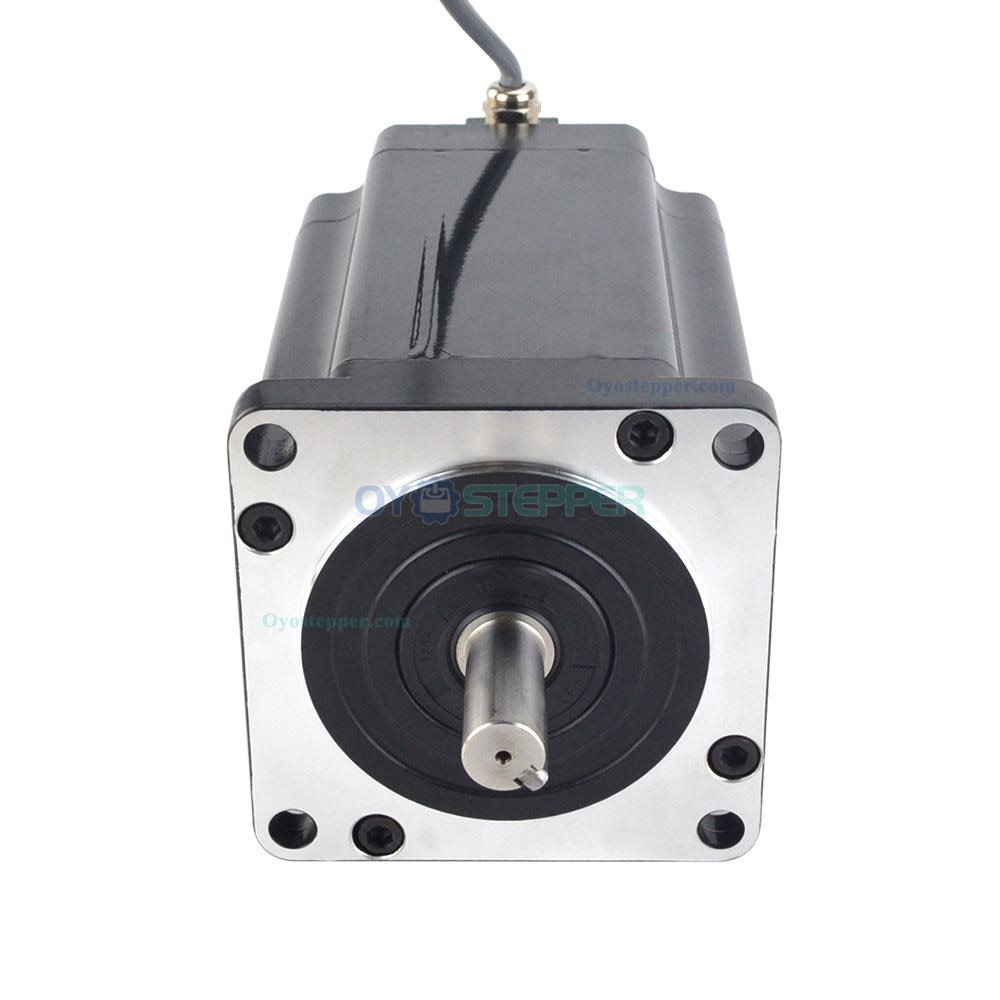

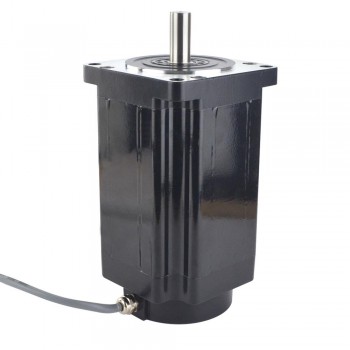

Nema 52 3-Phase Stepper Motor Bipolar 1.2 Deg 30 Nm(4249.2oz.in) 5.0A 130x130x200mm High Torque

Nema 52 3-Phase Stepper Motor Bipolar 1.2 Deg 30 Nm(4249.2oz.in) 5.0A 130x130x200mm High Torque
NO.:52HT79-5003S
Review: Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$235.97
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $224.17 5%
5 $219.45 7%
10 $212.37 10%
50 $205.29 13%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 52HT79-5003S
  • Number of Phase: 3
  • Step Angle: 1.2 deg
  • Holding Torque: 30 Nm(4249.2oz.in)
  • Rated Current/phase: 5 A
  • Phase Resistance: 1.67 ohms± 10%
  • Inductance: 28 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 130 x 130 mm
  • Body Length: 200 mm
  • Shaft Diameter: Φ19 mm
  • Shaft Length: 48 mm
  • keyway Shaft Length: 30 mm
  • Number of Leads: 3
  • Lead Length: 300 mm
  • Weight: 16.8 kg

Connection

U
V
W
RED
YEL
GRN



Resources



Nema 52 3-Phase Stepper Motor Bipolar 1.2 Deg 30 Nm(4249.2oz.in) 5.0A 130x130x200mm High Torque

Nema 52 3-Phase Stepper Motor Bipolar 1.2 Deg 30 Nm(4249.2oz.in) 5.0A 130x130x200mm High Torque

Nema 52 3-Phase Stepper Motor Bipolar 1.2 Deg 30 Nm(4249.2oz.in) 5.0A 130x130x200mm High Torque

Nema 52 3-Phase Stepper Motor Bipolar 1.2 Deg 30 Nm(4249.2oz.in) 5.0A 130x130x200mm High Torque

Nema 52 3-Phase Stepper Motor Bipolar 1.2 Deg 30 Nm(4249.2oz.in) 5.0A 130x130x200mm High Torque

Nema 52 3-Phase Stepper Motor Bipolar 1.2 Deg 30 Nm(4249.2oz.in) 5.0A 130x130x200mm High Torque

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 52 3-Phase Stepper Motor Bipolar 1.2 Deg 50 Nm(7082oz.in) 5.0A 130x130x260mm High Torque 3 Wires
Next: Mini Dual Shaft Nema 6 Stepper Motor Bipolar 1.8 Degree 0.58Ncm (0.82oz.in) 0.3A 14x14x30mm 4 Wires
Electrical Specification
Holding Torque (Ncm) 3000
Holding Torque (oz.in) 4249.2
Inductance(mH) 28
Phase Resistance(ohm) 1.67
Rated Current (A) 5
Step Angle(°) 1.2
No. of Phase 3
Physical Specification
Body Length(mm) 200
Frame Size(mm) 130 x 130
Lead Length(mm) 300
No. of Lead 3
Shaft Diameter(mm) 19
Shaft Length(mm) 48
Weight(g) 16800
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.

Dale.C – 31 Oct 2019

Smooth transaction, item was as described, packaged well and arrived quickly.
