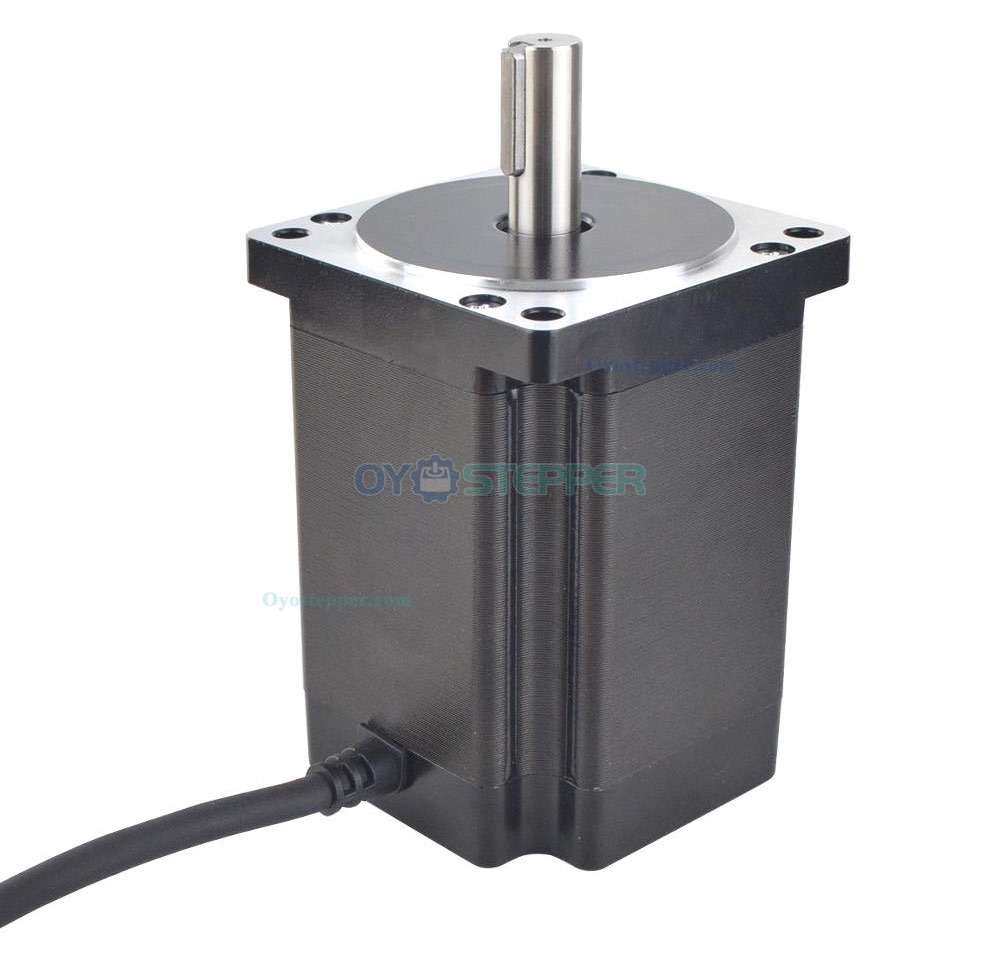

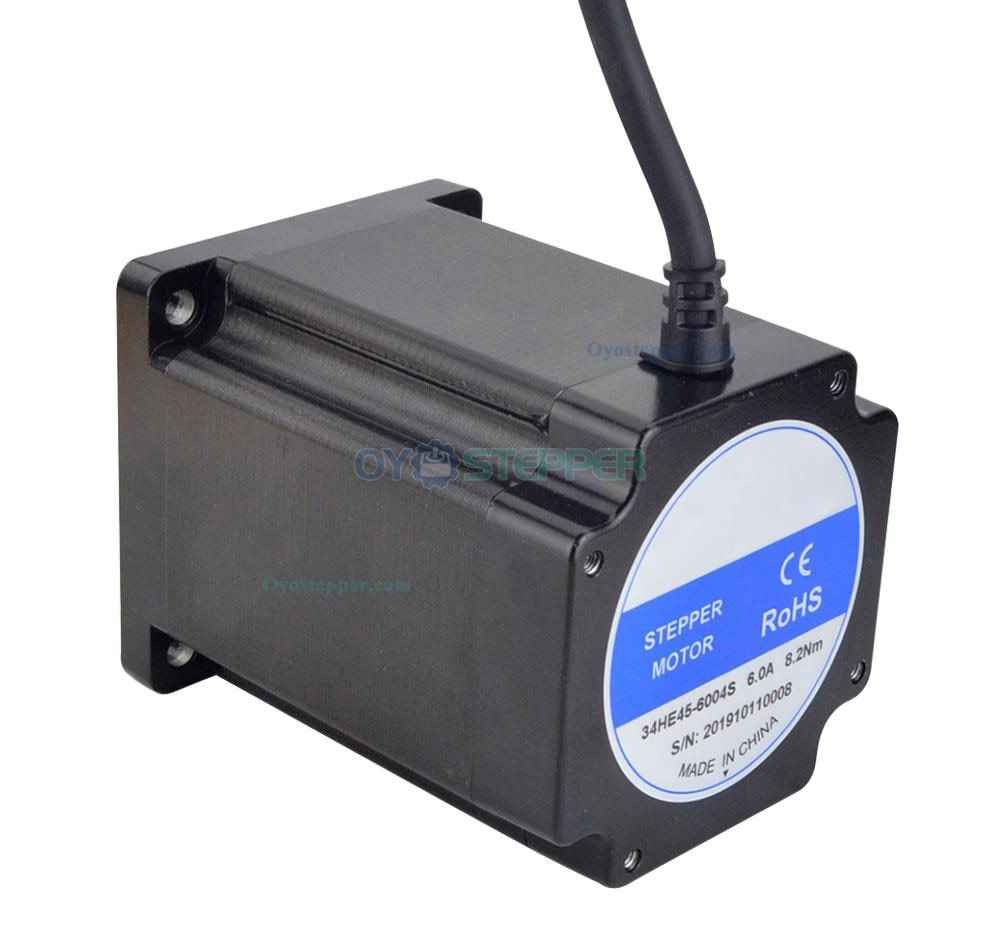

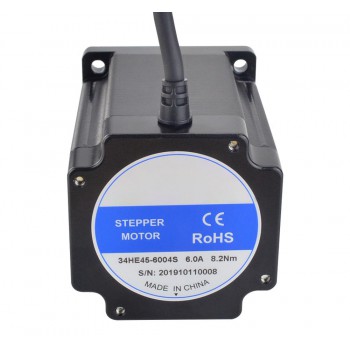

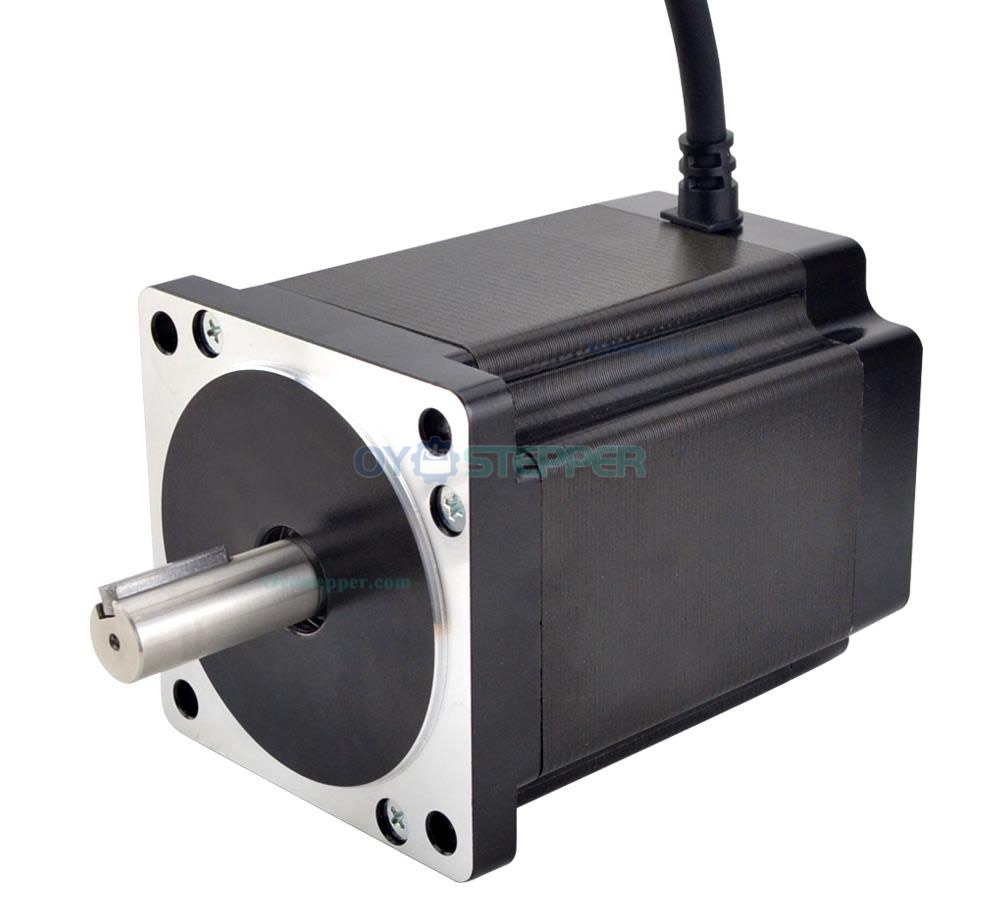

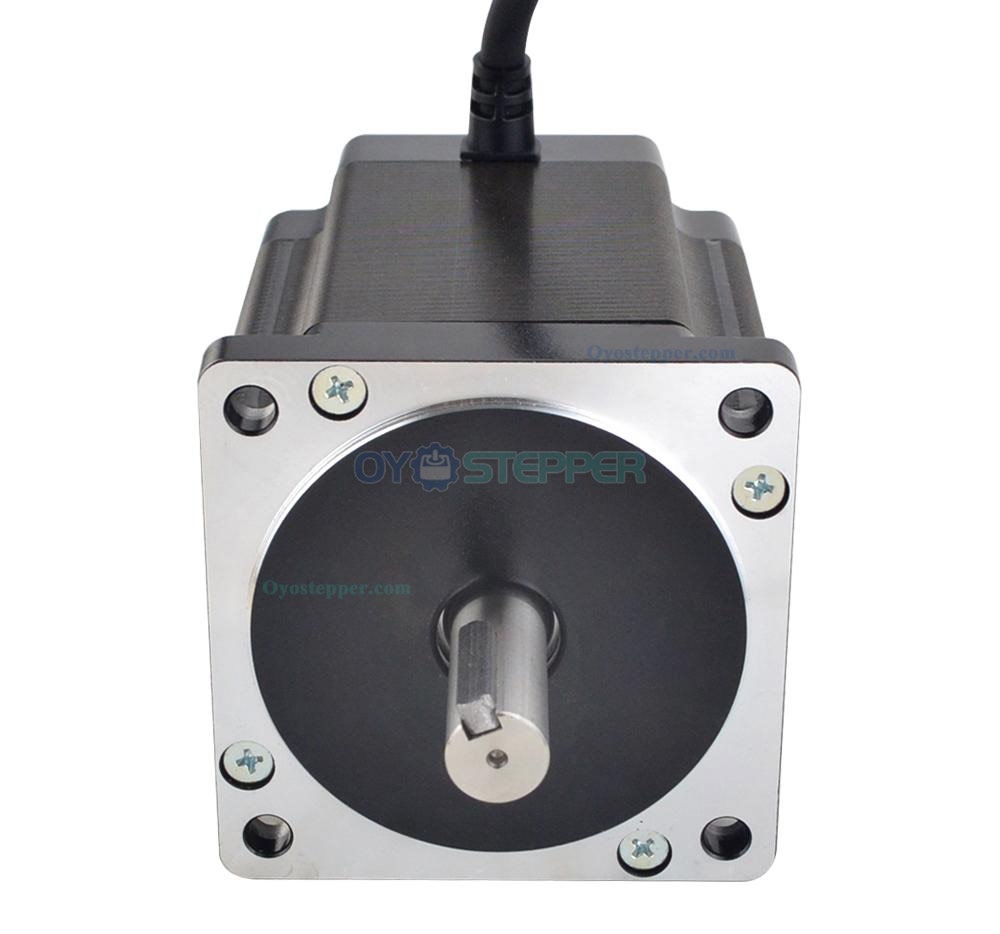

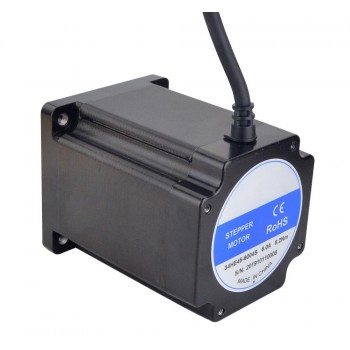

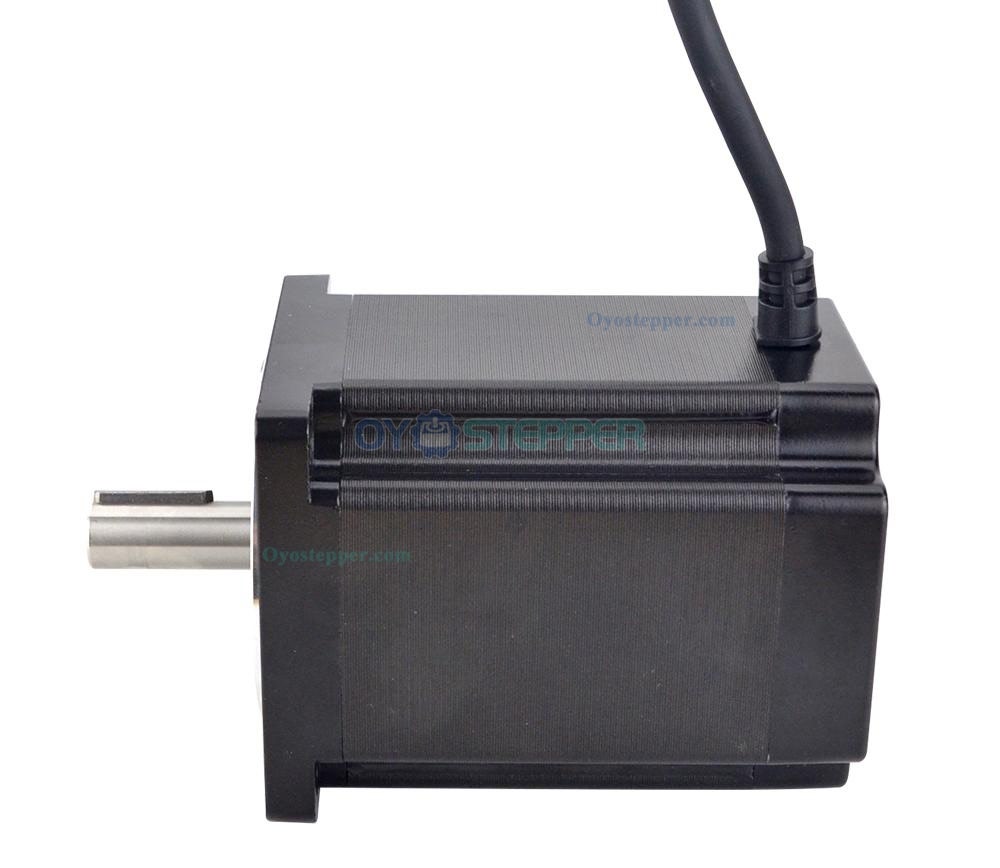

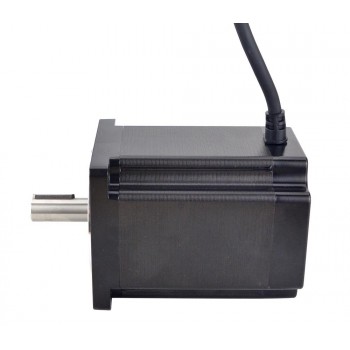

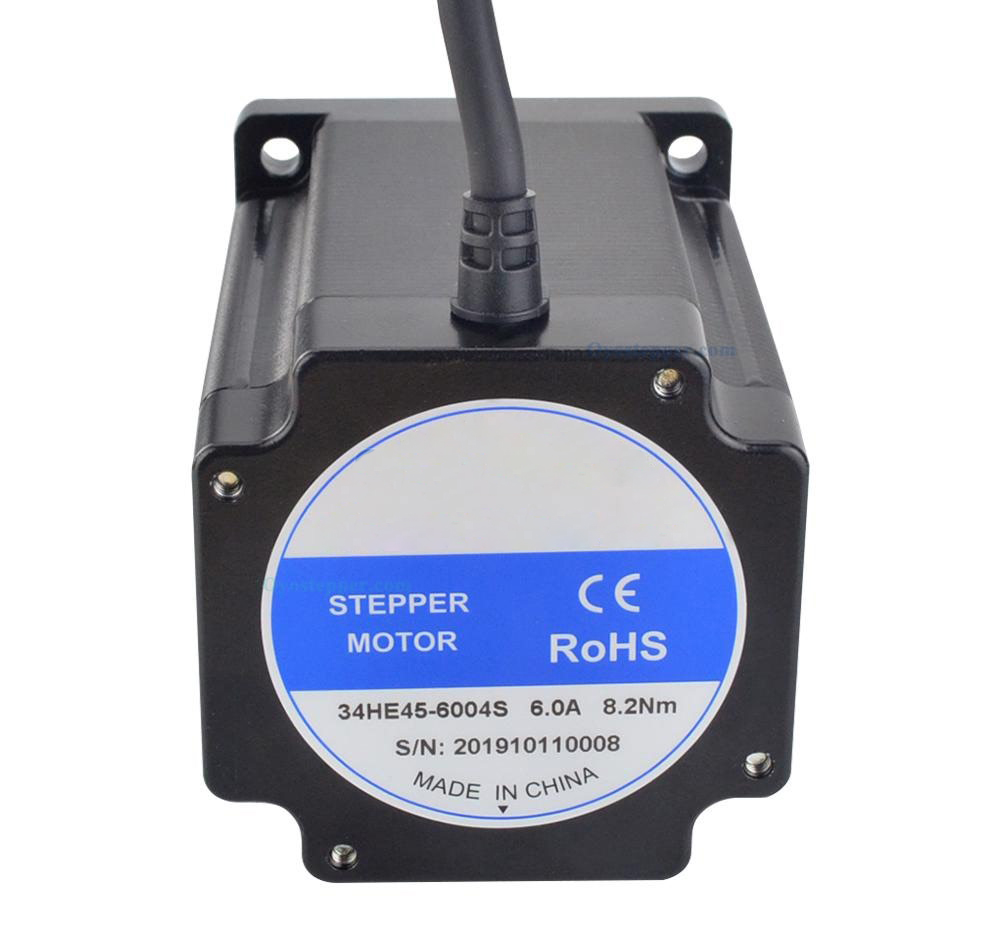

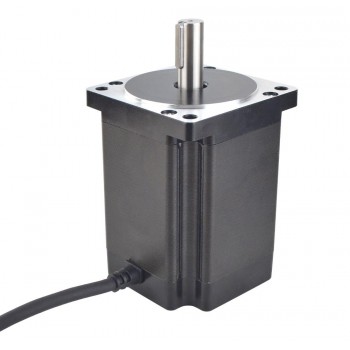

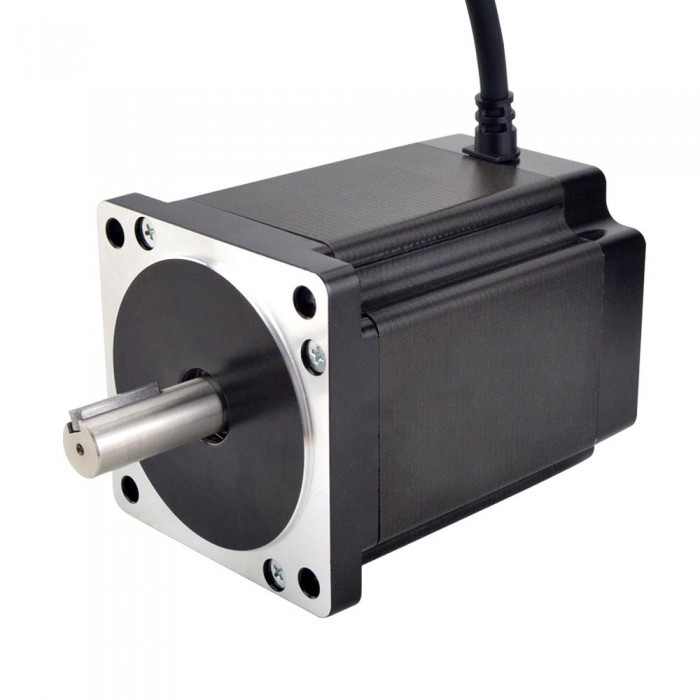

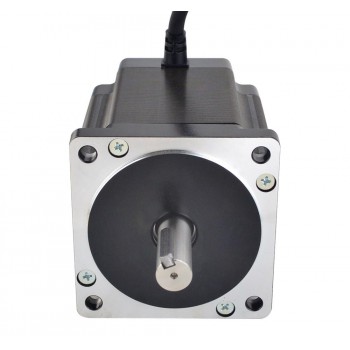

E Series Nema 34 Bipolar High Torque Stepper Motor 1.8 Degree 8.2 Nm(1161.45oz.in) 6.0A 86x86x114mm 4 Wires
Special Offer in April 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till April 30th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$47.19
Electrical Specification
- Manufacturer Part Number: 34HE45-6004S
- Number of phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 8.2 Nm(849.84oz.in)
- Rated Current/phase: 6.0 A
- Phase Resistance: 0.51 ohms± 10%
- Inductance: 5.1 mH ± 20%(1KHz)
Physical Specification
- Frame Size: 86 x 86 mm
- Body Length: 114 mm
- Shaft Diameter: Φ14 mm
- Shaft Length: 37 mm
- Keyway Shaft Length: 25 mm
- Number of Leads: 4
- Lead Length: 500 mm
- Weight: 3.7 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
BLK
|
GRN
|
RED
|
BLU
|
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Holding Torque (Ncm) | 820 |
| Inductance(mH) | 5.1 |
| Phase Resistance(ohm) | 0.51 |
| Rated Current (A) | 6.0 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 114 |
| Frame Size(mm) | 86 x 86 |
| Lead Length(mm) | 500 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Shaft Type | Keyway |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 3700 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
