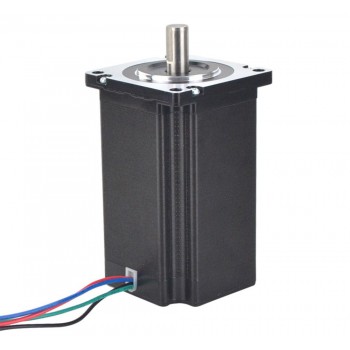

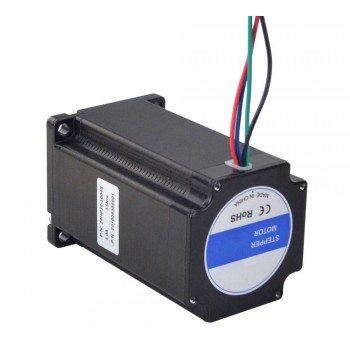

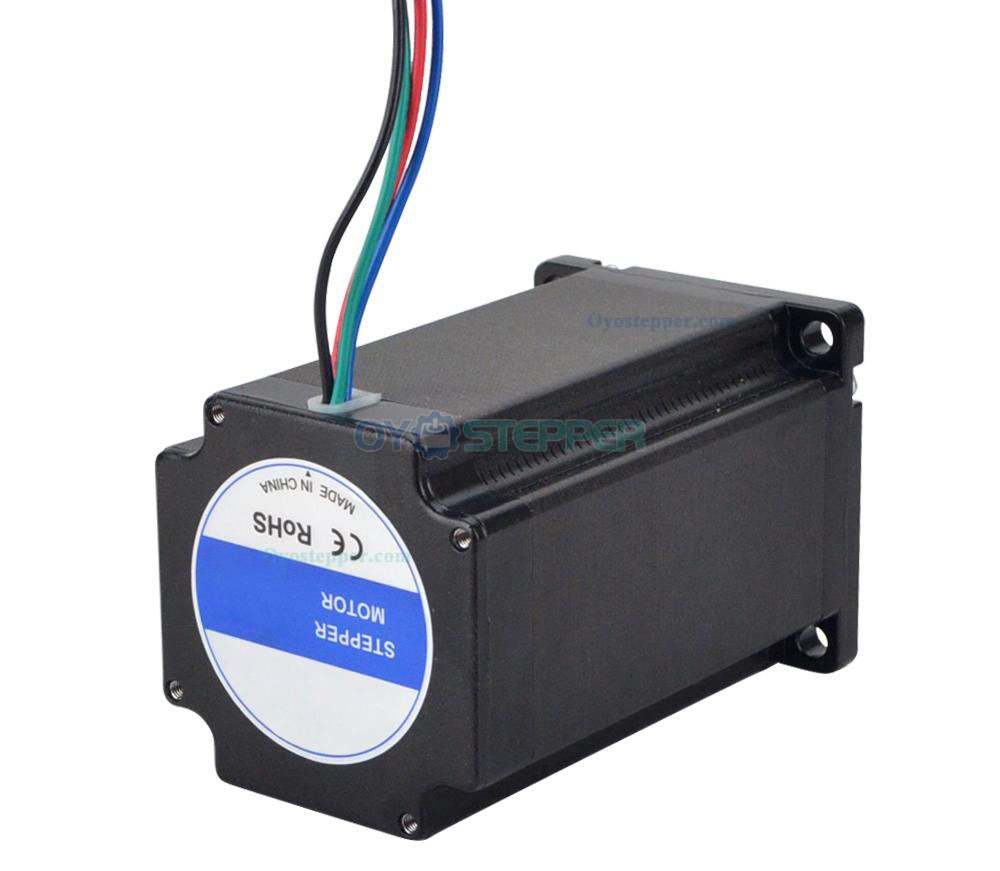

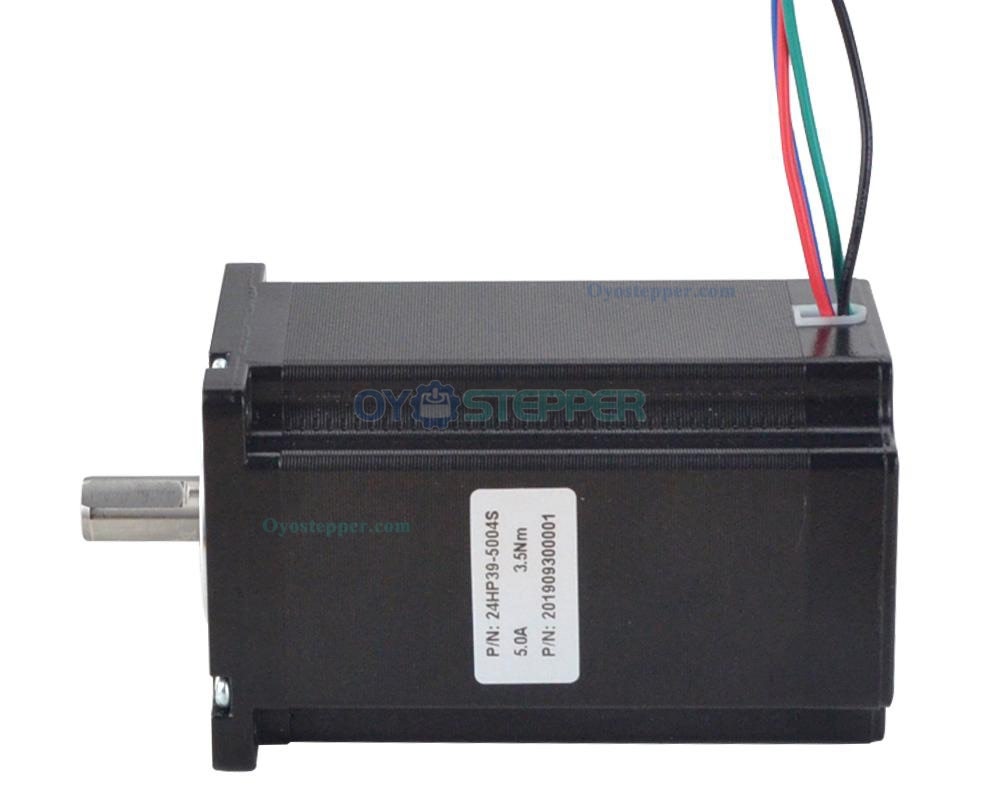

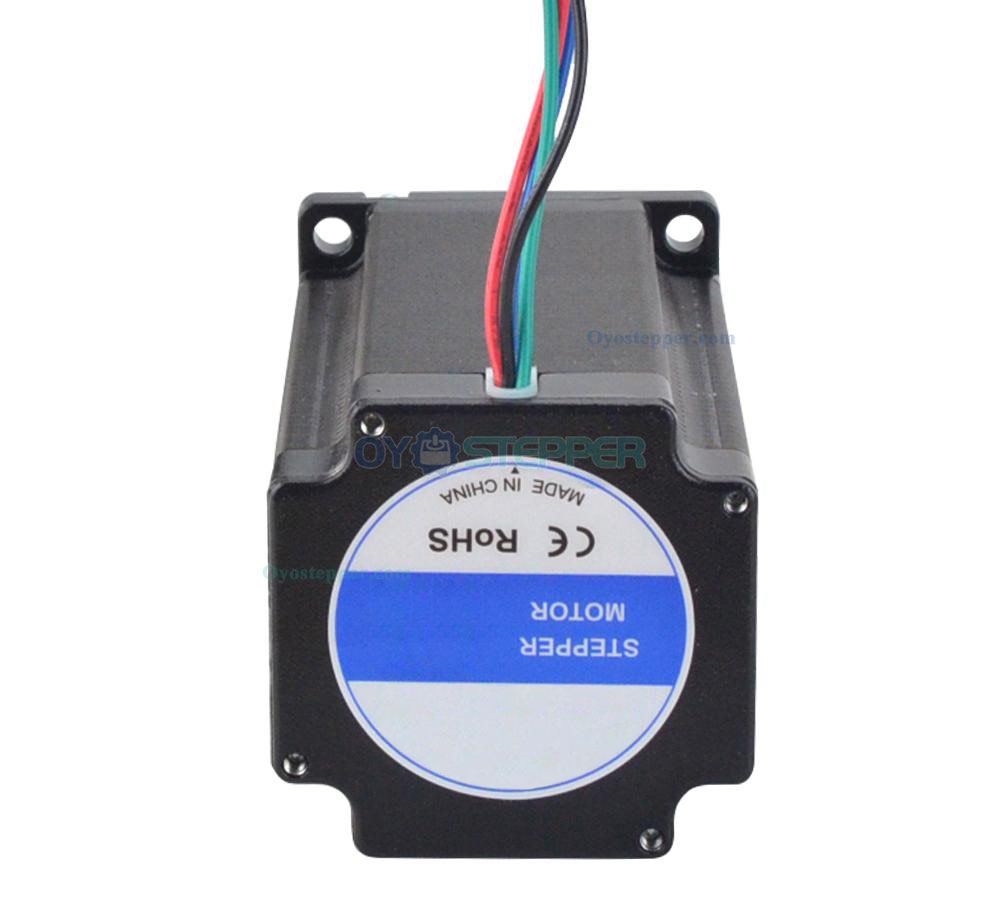

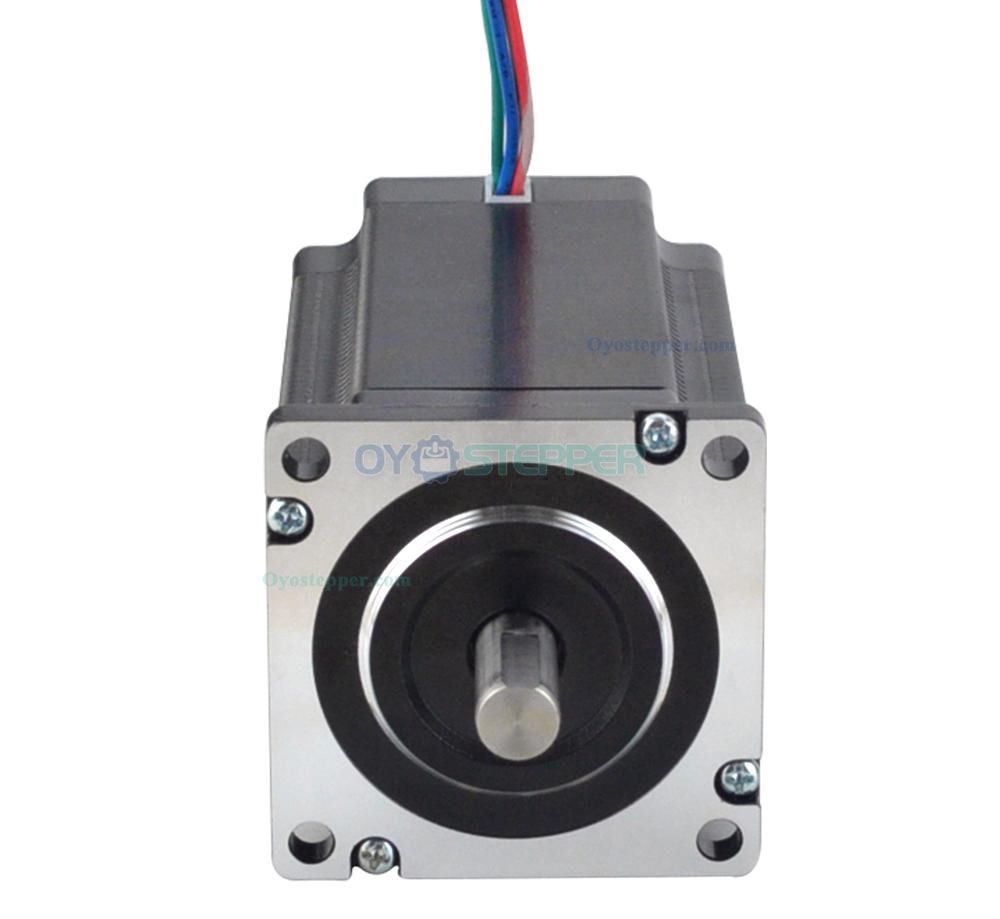

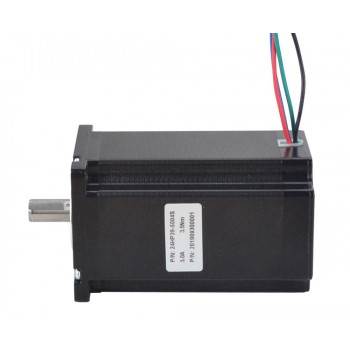

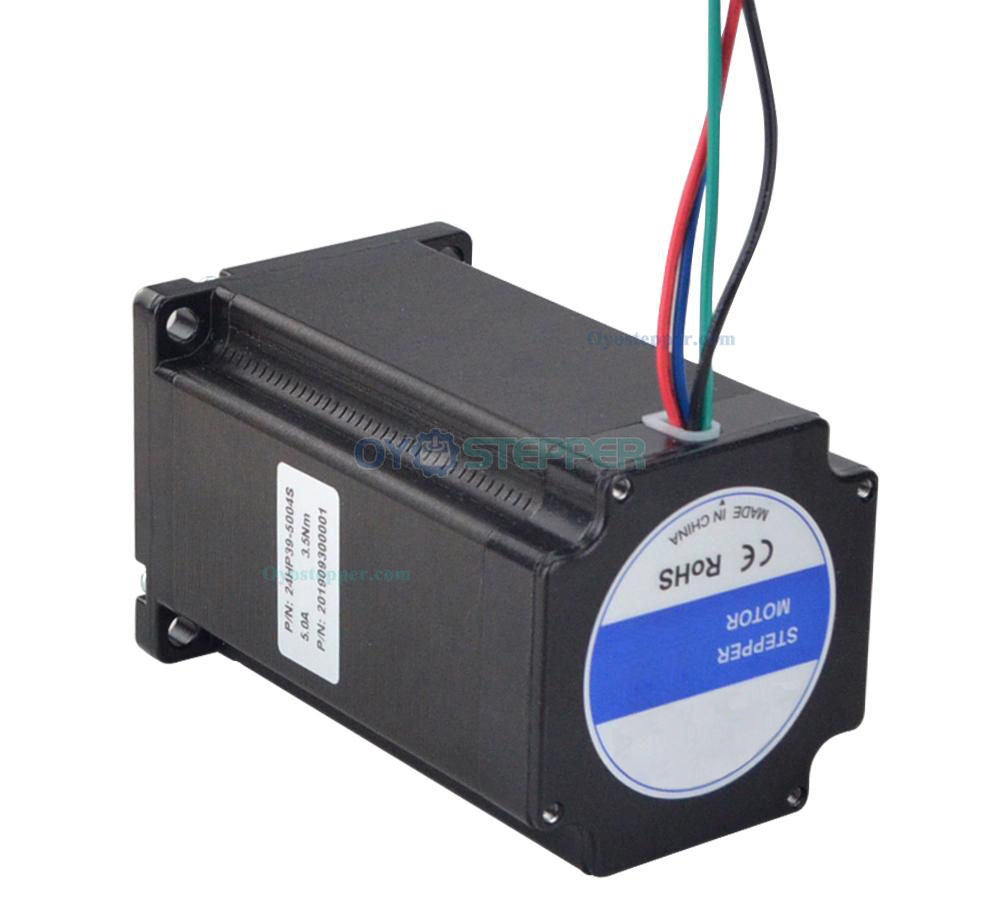

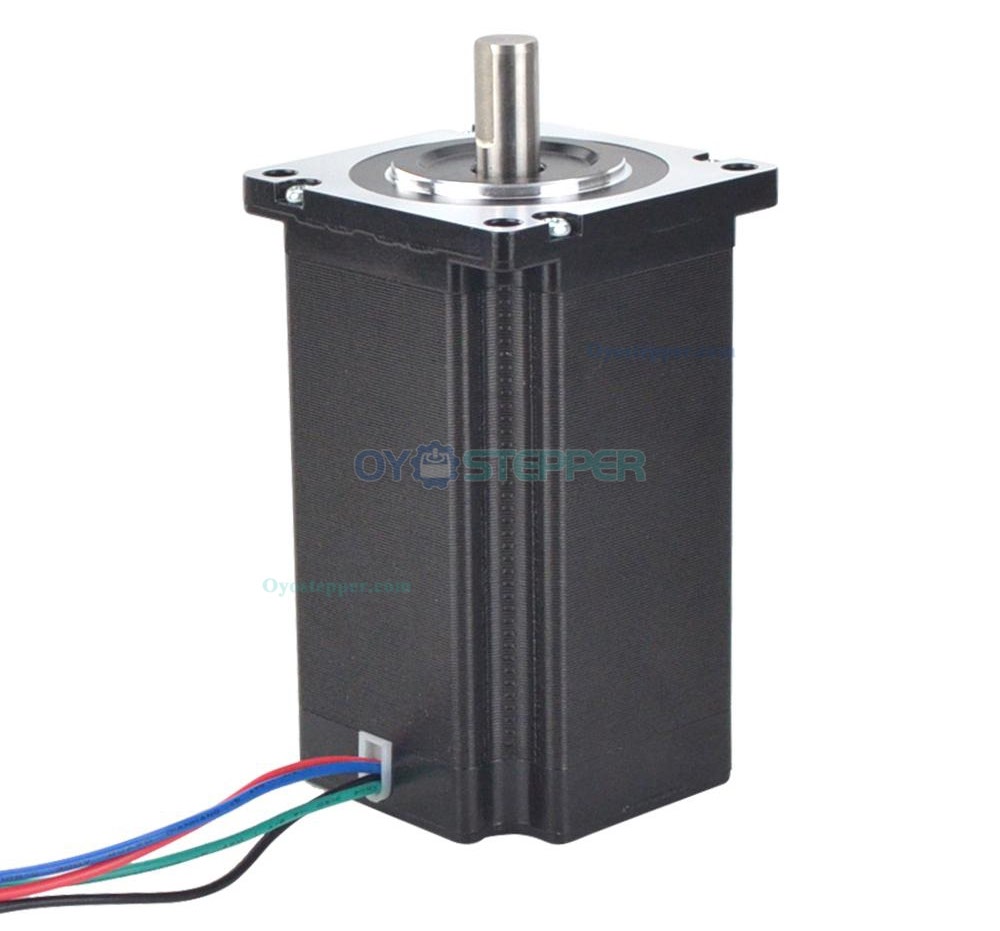

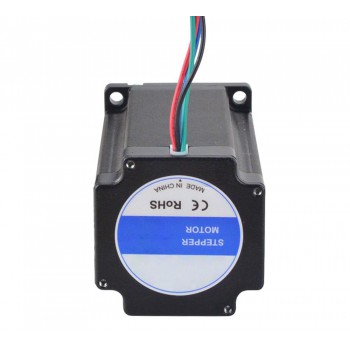

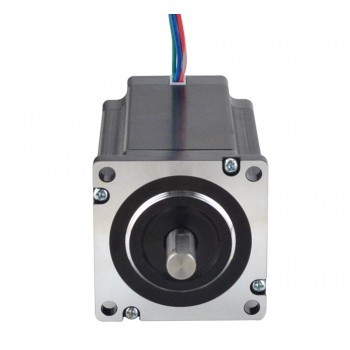

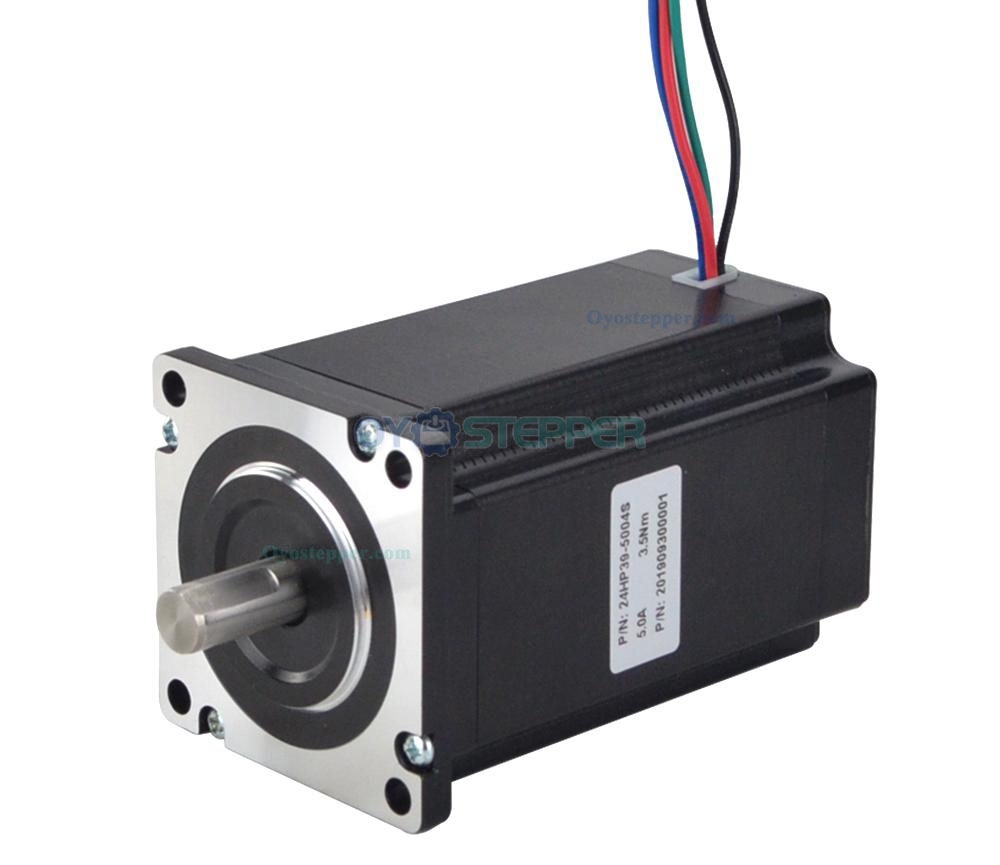

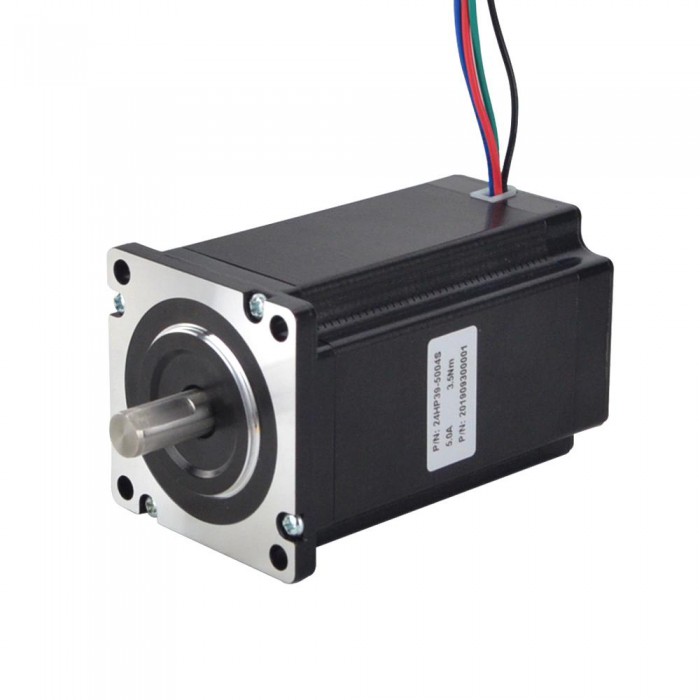

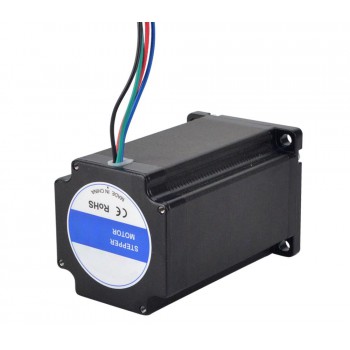

Nema 24 Stepper Motor Bipolar 2 Phase 1.8 Degree 3.5 Nm(495.74oz.in) 5.0A 60x60x97.8mm 4 Wires Keyway Shaft
Electrical Specification
Manufacturer Part Number: 24HP39-5004S
Number Of Phase: 2
Step Angle: 1.8 deg
Holding Torque: 3.5 Nm(495.74oz.in)
Rated Current/phase: 5.0 A
Phase Resistance: 0.48 ohms± 10%
Inductance: 1.85 mH ± 20%(1KHz)
Physical Specification
Frame Size: 60 x 60 mm
Body Length: 97.8 mm
Shaft Diameter: Φ10 mm
Shaft Length: 21 mm
Keyway Shaft Length: 15 mm
Number of Leads: 4
Lead Length: 500 mm
Weight: 1.6 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
BLK
|
GRN
|
RED
|
BLU
|
| Physical Specification | |
|---|---|
| Frame Size(mm) | 60x60 |
| Body Length(mm) | 97.8 |
| Lead Length(mm) | 500 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 21 |
| Shaft Type | Keyway |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 1600 |
| Electrical Specification | |
| Holding Torque (Ncm) | 350 |
| Holding Torque (oz.in) | 495.74 |
| Inductance(mH) | 1.85 |
| Phase Resistance(ohm) | 0.48 |
| Rated Current (A) | 5.0 |
| Step Angle(°) | 1.8 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
