Nema 17 Stepper Motor Unipolar 0.9 deg 26Ncm (36.8oz.in) 0.4A 12V 42x39mm 6 Wires

NO.:SKU:17HM15-0406D
Review: Post a review
Latest price:$16.13
Buy It Now:$12.41
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$11.78 $11.16 $10.54 $9.93
Add To Cart

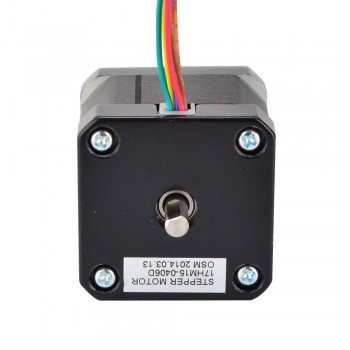

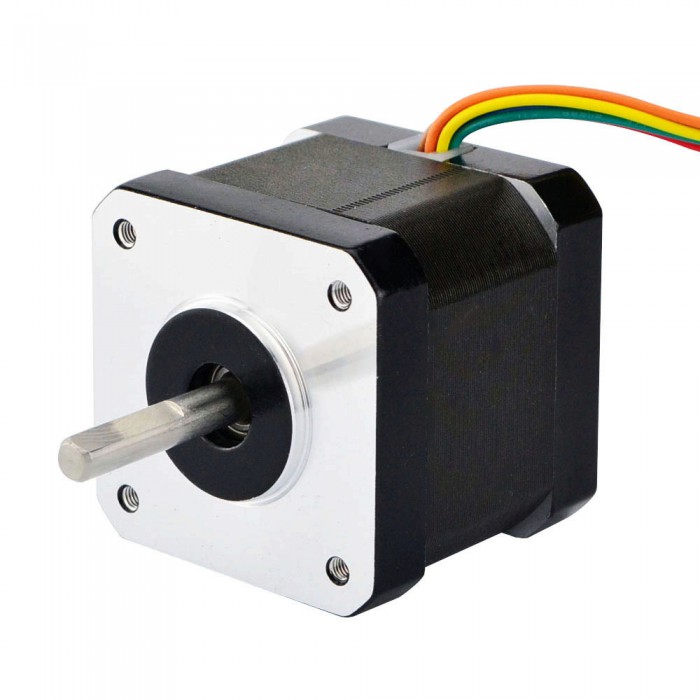

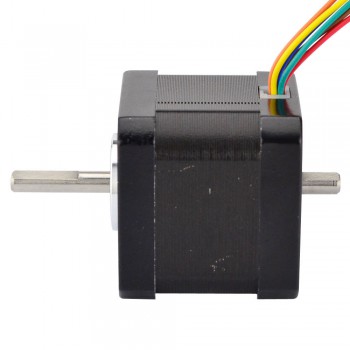

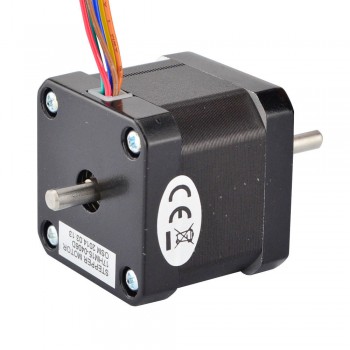

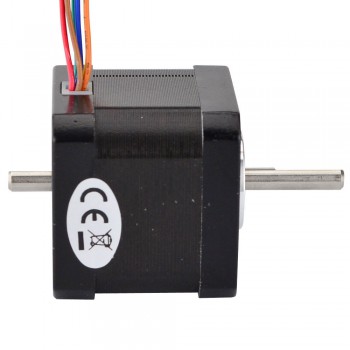

This unipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x39mm. It has 6 wires, each phase draws current 0.4A at 12V, with holding torque 26Ncm (36.8oz.in), A rear shaft is available.

Electrical Specification

  • Manufacturer Part Number: 17HM15-0406D
  • Motor Type: Unipolar Stepper
  • Step Angle: 0.9 deg
  • Holding Torque: 26Ncm(36.8oz.in)
  • Rated Current/phase: 0.4A
  • Voltage: 12V
  • Phase Resistance: 30ohms
  • Inductance: 30mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 39mm
  • Shaft Diameter: Φ5mm
  • Front Shaft Length: 24mm
  • D-cut Length: 15mm
  • Rear Shaft Length: 10mm
  • Number of Leads: 6
  • Lead Length: 500mm
  • Weight: 300g

Connection

A+
O+
A-
B+
O-
B-
RED
BLK
YEL
BLU
ORG
GRN

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Unipolar 0.9 deg 26Ncm (36.8oz.in) 0.4A 12V 42x42x39mm 6 Wires
Next: Nema 17 Stepper Motor Unipolar 0.9 deg 26Ncm (36.8oz.in) 0.8A 6V 42x42x39mm 6 Wires
Electrical Specification
Bipolar/Unipolar Unipolar
Holding Torque (Ncm) 26
Holding Torque (oz.in) 36.8
Inductance(mH) 30
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Step Angle(°) 0.9
Physical Specification
Body Length(mm) 39
Frame Size(mm) 42x42
Single Shaft/Dual Shaft Dual Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 6
Lead Length(mm) 500
Weight(g) 280
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
