Dual Shaft Nema 17 Stepper Motor Unipolar 0.9 Deg 16Ncm (22.7oz.in) 0.3A 12V 42x34mm 6 Wires

Dual Shaft Nema 17 Stepper Motor Unipolar 0.9 Deg 16Ncm (22.7oz.in) 0.3A 12V 42x34mm 6 Wires
NO.:17HM13-0316D
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$14.90
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $14.16 5%
30 $13.86 7%
50 $13.41 10%
100 $12.96 13%
Add To Cart

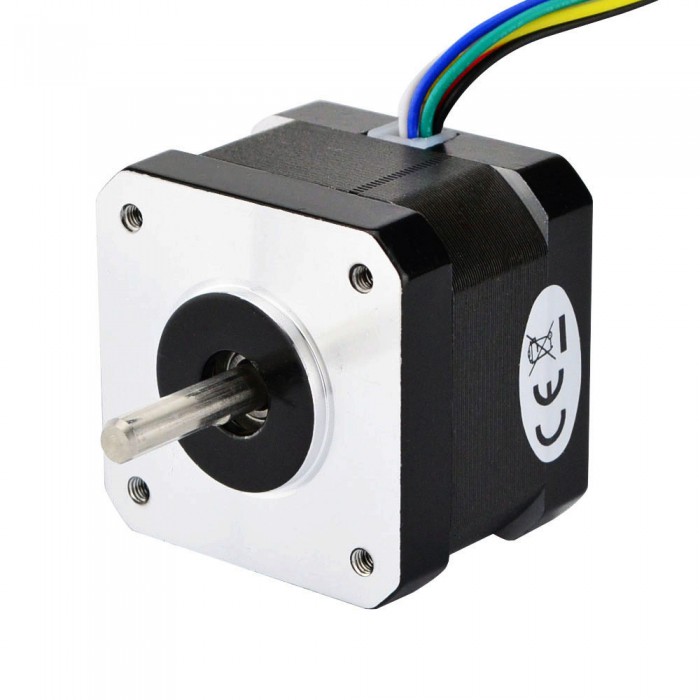

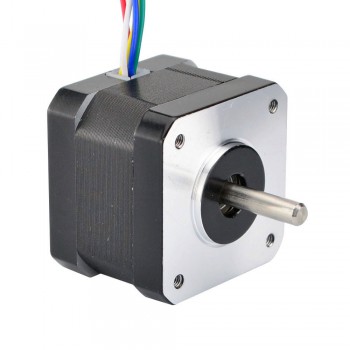

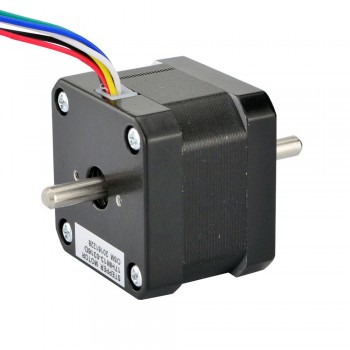

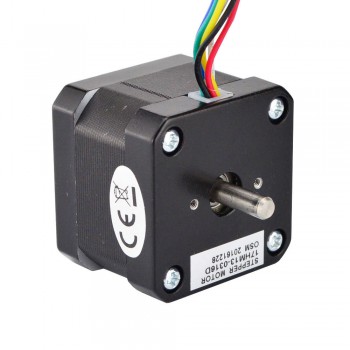

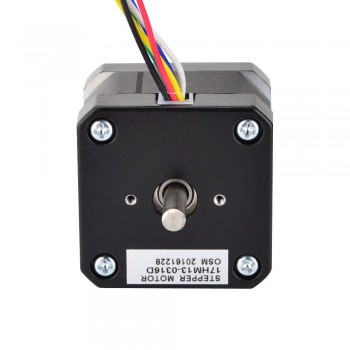

This unipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x34mm. It has 6 wires, each phase draws current 0.31.0A at 12V, with holding torque 16Ncm (22.7oz.in). A rear shaft is available.

Electrical Specification

  • Manufacturer Part Number: 17HM13-0316D
  • Motor Type: Unipolar Stepper
  • Step Angle: 0.9 deg
  • Holding Torque: 16Ncm(22.7oz.in)/23Ncm(31.8oz.in)
  • Rated Current/phase: 0.31A/0.22A
  • Voltage: 12V
  • Phase Resistance: 38.5ohms/77.0ohms
  • Inductance: 36mH ± 20%(1KHz)/144mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 34mm
  • Shaft Diameter: Φ5mm
  • Front Shaft Length: 20mm
  • D-cut Length: 15mm
  • Rear Shaft Length: 13mm
  • Number of Leads: 6
  • Lead Length: 500mm
  • Weight: 300g

Connection

A+
O+
A-
B+
O-
B-
BLK
YEL
GRN
RED
WHT
BLU



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Unipolar 0.9 Deg 16Ncm (22.7oz.in) 0.3A 12V 42x42x34mm 6 Wires
Next: Nema 17 Stepper Motor Unipolar 0.9 Deg 26Ncm (36.8oz.in) 0.4A 12V 42x42x39mm 6 Wires
Electrical Specification
Bipolar/Unipolar Unipolar
Holding Torque (Ncm) 16
Holding Torque (oz.in) 22.7
Inductance(mH) 36
Phase Resistance(ohm) 35.8
Rated Current (A) 0.31
Step Angle(°) 0.9
Physical Specification
Body Length(mm) 34
Frame Size(mm) 42x42
Single Shaft/Dual Shaft Dual Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 20
No. of Lead 6
Lead Length(mm) 500
Weight(g) 280
