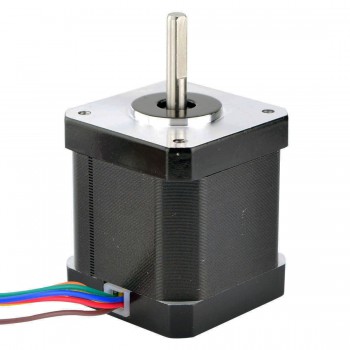

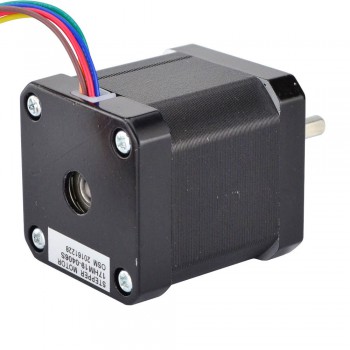

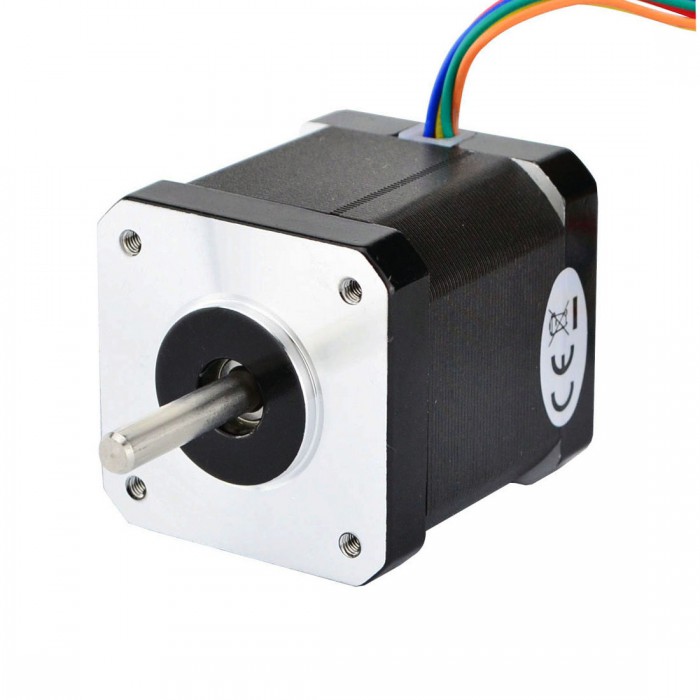

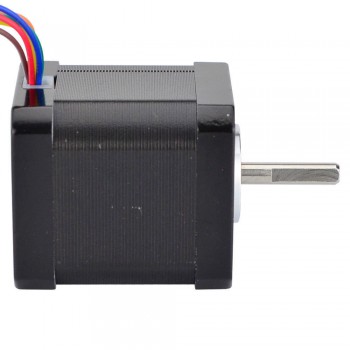

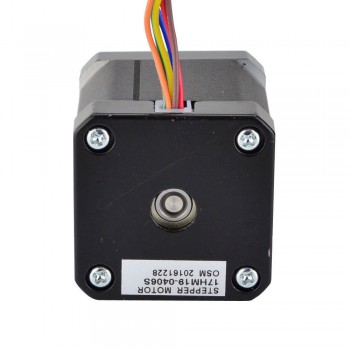

Nema 17 Stepper Motor Unipolar 0.9 deg 32Ncm (45.3oz.in) 0.4A 12V 42x42x48mm 6 Wires

NO.:SKU:17HM19-0406S
Review: Post a review
Latest price:$18.21
Buy It Now:$14.00
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$13.31 $12.60 $11.91 $11.20
Add To Cart

This unipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x39mm. It has 6 wires, each phase draws current 0.4A at 12V, with holding torque 32Ncm (45.3oz.in).

Electrical Specification

  • Manufacturer Part Number: 17HM19-0406S
  • Step Angle: 0.9 deg
  • Holding Torque: 32Ncm(45.3oz.in)
  • Rated Current/phase: 0.4A
  • Voltage: 12V
  • Phase Resistance: 30ohms
  • Inductance: 38mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 15mm
  • Number of Leads: 6
  • Lead Length: 500mm
  • Weight: 370g

Connection

A+
O+
A-
B+
O-
B-
RED
BLK
YEL
BLU
ORG
GRN

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Bipolar 0.9 deg 36Ncm (51oz.in) 0.9A 5.4V 42x42x40mm 4 Wires
Next: Dual Shaft Nema Size 17 Stepper Motor Unipolar 0.9 deg 32Ncm (45.3oz.in) 0.4A 12V 42x48mm 6 Wires
Electrical Specification
Bipolar/Unipolar Unipolar
Holding Torque (Ncm) 32
Holding Torque (oz.in) 45.3
Inductance(mH) 38
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Step Angle(°) 0.9
Physical Specification
Body Length(mm) 48
Frame Size(mm) 42x42
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 6
Lead Length(mm) 500
Weight(g) 350
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
