Dual Shaft Nema Size 17 Stepper Motor Unipolar 0.9 Deg 32Ncm (45.3oz.in) 0.4A 12V 42x48mm 6 Wires

Dual Shaft Nema Size 17 Stepper Motor Unipolar 0.9 Deg 32Ncm (45.3oz.in) 0.4A 12V 42x48mm 6 Wires
NO.:17HM19-0406D
Post a review
Halloween Special Offer 2024:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$17.39
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $16.52 5%
30 $16.17 7%
50 $15.65 10%
100 $15.13 13%
Add To Cart

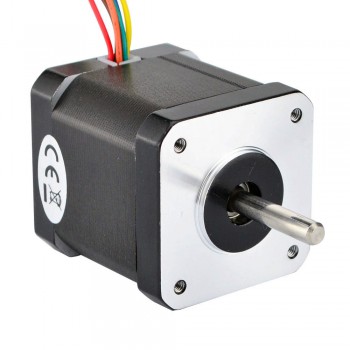

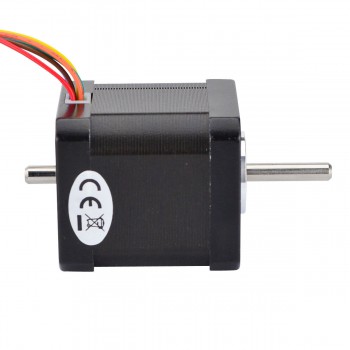

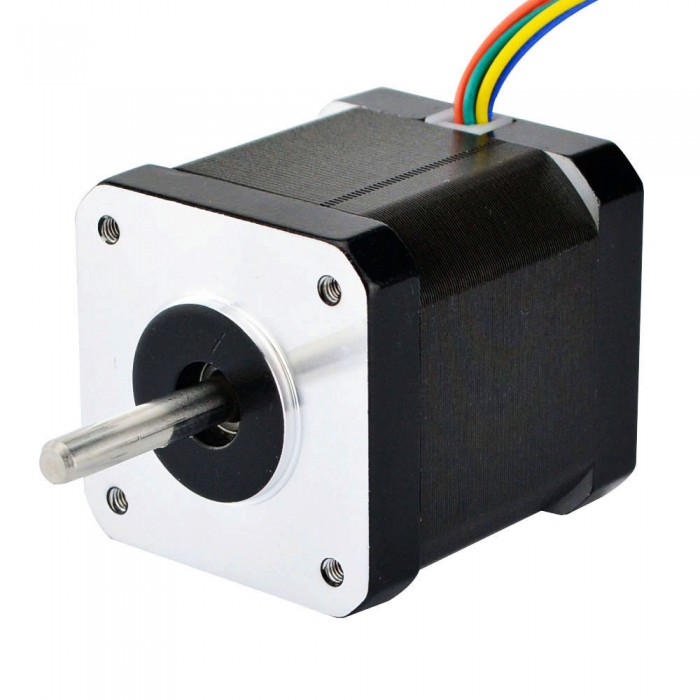

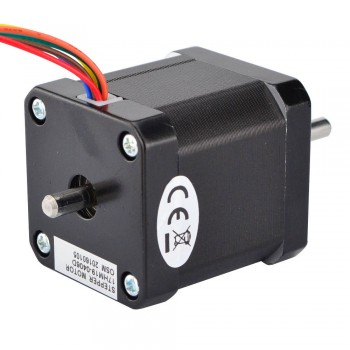

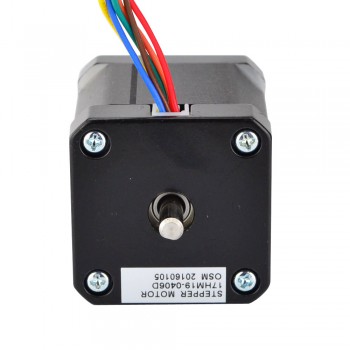

This unipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x39mm. It has 6 wires, each phase draws current 0.4A at 12V, with holding torque 32Ncm (45.3oz.in), A rear shaft is available.

Electrical Specification

Manufacturer Part Number: 17HM19-0406D

Motor Type: Unipolar Stepper

Step Angle: 0.9 deg

Holding Torque: 32Ncm(45.3oz.in)

Rated Current/phase: 0.4A

Voltage: 12V

Phase Resistance: 30ohms

Inductance: 38mH ± 20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 48mm

Shaft Diameter: Φ5mm

Front Shaft Length: 24mm

D-cut Length: 15mm

Rear Shaft Length: 10mm

Number of Leads: 6

Lead Length: 500mm

Weight: 370g



Connection

A+
O+
A-
B+
O-
B-
RED
BLK
YEL
BLU
ORG
GRN



Resources

Full Datasheet: 17HM19-0406D.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Hybrid Stepper Motor Unipolar 0.9 Deg 32Ncm (45.3oz.in) 0.4A 12V 42x42x48mm 6 Wires
Next: Nema 17 Stepper Motor Bipolar 0.9 Deg 44Ncm (62.3oz.in) 1.68A 2.8V 42x42x47mm 4 Wires
Electrical Specification
Bipolar/Unipolar Unipolar
Holding Torque (Ncm) 32
Holding Torque (oz.in) 45.3
Inductance(mH) 38
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Step Angle(°) 0.9
Physical Specification
Body Length(mm) 48
Frame Size(mm) 42x42
Single Shaft/Dual Shaft Dual Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 6
Lead Length(mm) 500
Weight(g) 350
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
