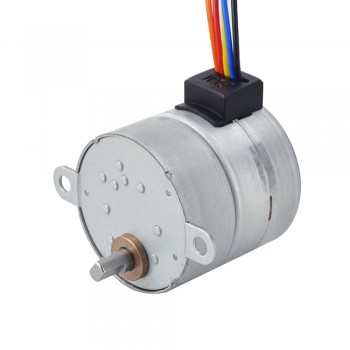

PM Geared Stepper Motor 2 Phase 14.7 Ncm 0.18 Deg 0.5A with1 00:1 Spur gearbox Φ15x22.5mm

PM Geared Stepper Motor 2 Phase 14.7 Ncm 0.18 Deg 0.5A with1 00:1 Spur gearbox Φ15x22.5mm
NO.:15PM20L02-SG100
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$11.03
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $10.48 5%
30 $10.26 7%
50 $9.93 10%
100 $9.60 13%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 15PM20L02-SG100
  • Motor Type: PM Stepper
  • Phase: 2
  • Step Angle: 0.18 deg
  • Rated Current/phase: 0.5 A
  • Holding Torque: 14.7 Ncm(20.821 oz.in)
  • Phase Resistance: 10 ± 7% ohms(25 ℃)
  • Inductance: 2.25 mH ± 20%

Physical Specification

  • Frame Size: Φ15 mm
  • Body Length: 22.5 mm
  • Gearbox Length: 11.5 mm
  • Shaft Diameter: Φ3 mm
  • Shaft Length: 9 mm
  • D-cut Length: 6.5 mm
  • Gearbox Type: Spur
  • Gear Ratio: 100
  • Number of Leads: 4 with connector Molex 4Y
  • Lead Length: 110 mm
  • Weight: 14.4 g

Connection

A+
A-
B+
B-
Black
Brown
Orange
Yellow



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: PM Geared Rotary Stepper Motor 2 Phase 0.36 Deg 0.5 A with 50:1 Spur gearbox Φ15x22.3mm
Next:  PM Geared Stepper Motor 2 Phase 49 Ncm 0.075 Deg 0.3A with 100:1 Spur gearbox Φ25x30.5mm
Electrical Specification
Holding Torque (oz.in) 20.821
Inductance(mH) 2.25
Phase Resistance(ohm) 10
Rated Current (A) 0.5
Step Angle(°) 0.18
No. of Phase 2
Holding Torque(mN.m) 147
Gearbox Specification
Gear Ratio 100
Gearbox Length(mm) 11.5
Gearbox Type Spur
Physical Specification
Body Length(mm) 22.5
Frame Size(mm) Φ15
Lead Length(mm) 110
No. of Lead 4
Shaft Diameter(mm) Φ3
Shaft Length(mm) 9
