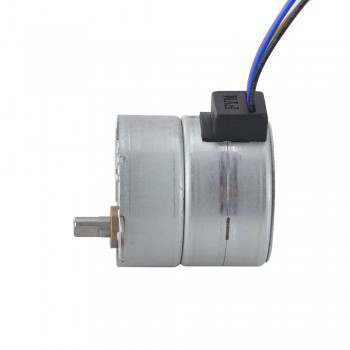

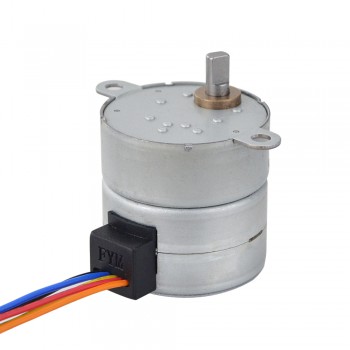

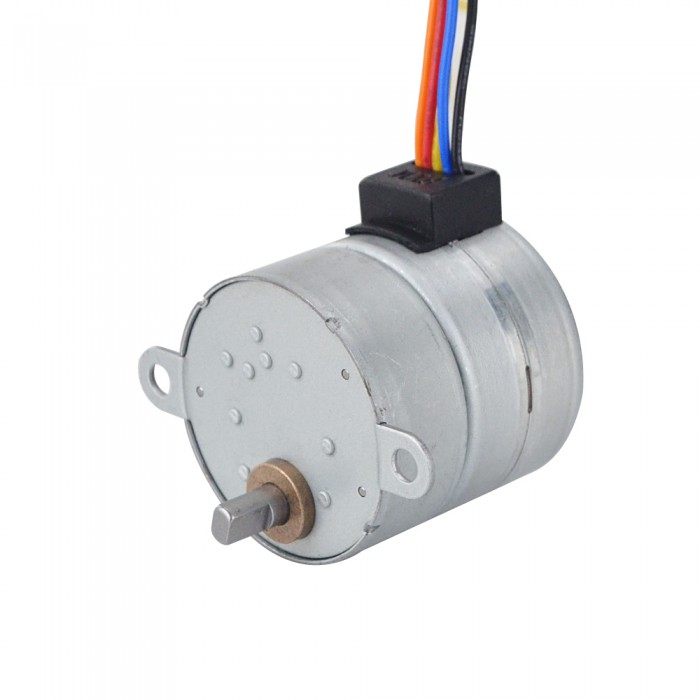

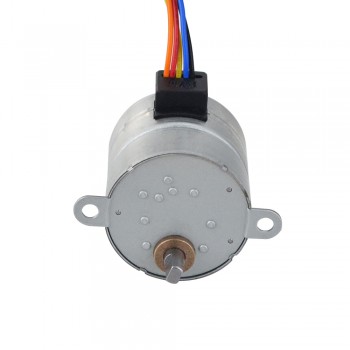

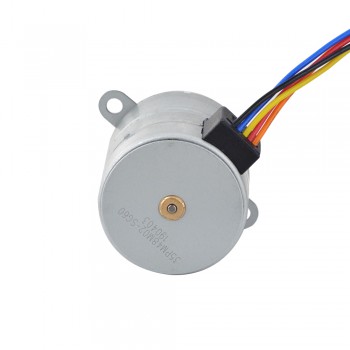

PM Gear Stepper Motor 4 Phase 0.125 Deg 0.4A 117.6 Ncm with 60:1 Spur gearbox Φ35x35.2mm

NO.:35PM48M02-SG60
Post a review

Manuals and Documentation: Full Datasheet:
35PM48M02-SG60.pdf

Our Price:$16.77

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
10	$15.93	5%
30	$15.60	7%
50	$15.09	10%
100	$14.59	13%

Add To My Favorites

Description Specification Custom Options Review

This 35mm PM stepper draws 0.4A/phase and delivers 117.6Ncm holding torque. 60:1 spur gearbox gives 0.125° step angle, 5 leads with connector.

Electrical Specification

Manufacturer Part Number: 35PM48M02-SG60

Motor Type: PM Stepper

Phase: 4

Step Angle: 0.125 deg

Rated Current/phase: 0.4 A

Holding Torque: 117.6 Ncm(166.569 oz.in)

Phase Resistance: 30 ± 7% ohms(25 ℃)

Inductance: 17.1 mH ± 20%

Physical Specification

Frame Size: Φ35 mm

Body Length: 35.2 mm

Gearbox Length: 14.5 mm

Shaft Diameter: Φ5 mm

Shaft Length: 10 mm

D-cut Length: 6 mm

Gearbox Type: Spur

Gear Ratio: 60

Number of Leads: 5 with connector PH-6Y

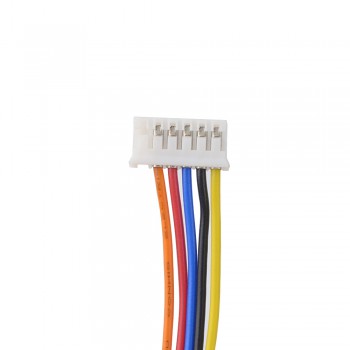

Lead Length: 240 mm

Weight: 117g

Connection

1	2	3	4	5
Yellow	Black	Blue	Red	Orange

Prev: PM Gear Stepper Motor 4 Phase 0.25 Deg 0.4A 117.6 Ncm with 30:1 Spur Gearbox Φ35x35.2mm
Next: PM Geared Stepper Motor 4 Phase 0.15 Deg 98 Ncm 0.171A with 50:1 Spur gearbox Φ42x38mm

Electrical Specification
Holding Torque (oz.in)	166.569
Inductance(mH)	17.1
Phase Resistance(ohm)	30
No. of Phase	4
Holding Torque(mN.m)	1176
Gearbox Specification
Gear Ratio	60
Gearbox Length(mm)	14.5
Gearbox Type	Spur
Physical Specification
Body Length(mm)	35.2
Frame Size(mm)	Φ35
Lead Length(mm)	240
No. of Lead	5
Shaft Diameter(mm)	Φ5
Shaft Length(mm)	10
