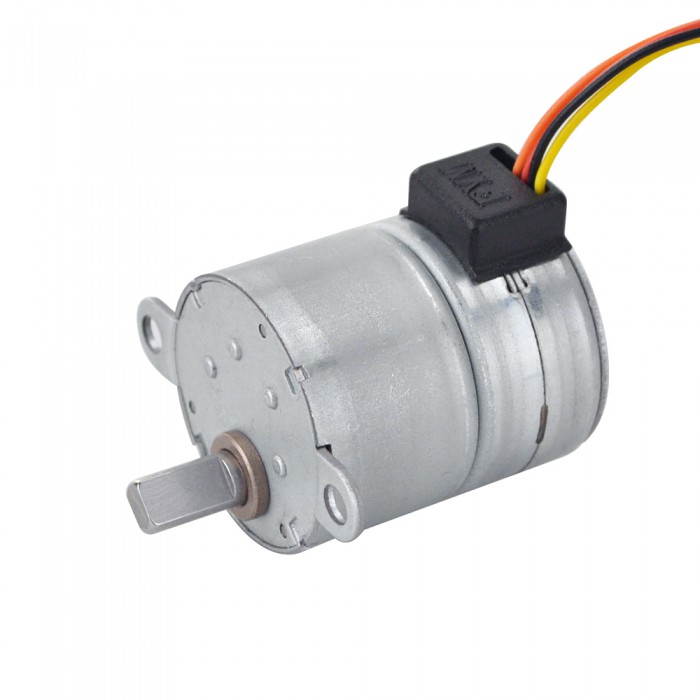

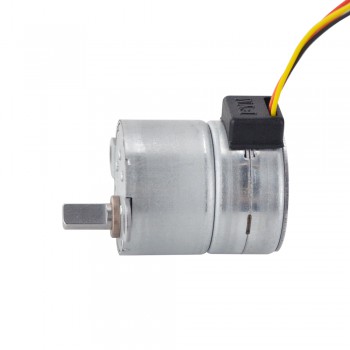

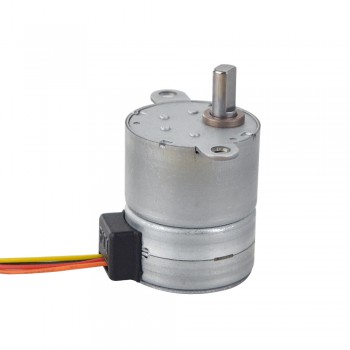

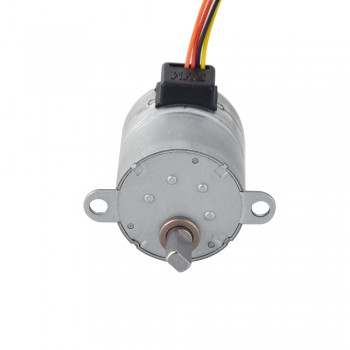

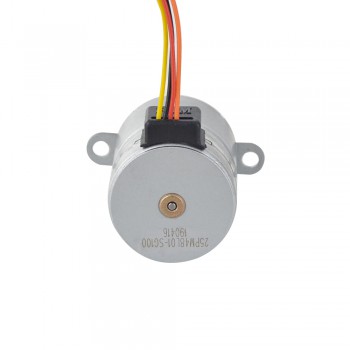

PM Geared Stepper Motor 2 Phase 49 Ncm 0.075 Deg 0.3A with 100:1 Spur gearbox Φ25x30.5mm

 PM Geared Stepper Motor 2 Phase 49 Ncm 0.075 Deg 0.3A with 100:1 Spur gearbox Φ25x30.5mm
NO.:25PM48L01-SG100
Post a review
Our Price:$17.65
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $16.77 5%
30 $16.41 7%
50 $15.89 10%
100 $15.36 13%
Add To Cart

Electrical Specification

Manufacturer Part Number: 25PM48L01-SG100

Motor Type: PM Stepper

Phase: 2

Step Angle: 0.075 deg

Rated Current/phase: 0.3 A

Holding Torque: 49 Ncm(69.404 oz.in)

Phase Resistance: 20 ± 7% ohms(25 ℃)

Inductance: 10.6 mH ± 20%



Physical Specification

Frame Size: Φ25 mm

Body Length: 30.5 mm

Gearbox Length: 16.3 mm

Shaft Diameter: Φ5 mm

Shaft Length: 10.4 mm

Gearbox Type: Spur

Gear Ratio: 100

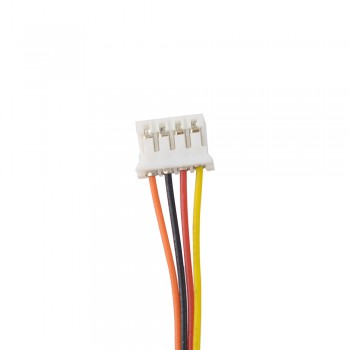

Number of Leads: 4 with connector PH-4Y

Lead Length: 200 mm

Weight: 53.7 g



Connection

A+
A-
B+
B-
Yellow
Red
Black
Orange



Resources

Full Datasheet: 25PM48L01-SG100.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: PM Rotary Stepper Motor 3.75 Deg 49mN.m (6.94oz.in) 0.42A 4 Wires Φ42x18mm Permanent Magnet Stepper Motor
Next: PM Gear Stepper Motor 4 Phase 0.75 Deg 0.25A 12.74 Ncm with10:1 Spur gearbox Φ25x25mm
Electrical Specification
Holding Torque (oz.in) 69.404
Inductance(mH) 10.6
Phase Resistance(ohm) 20
Rated Current (A) 0.3
Step Angle(°) 0.075
No. of Phase 2
Holding Torque(mN.m) 490
Gearbox Specification
Gear Ratio 100
Gearbox Length(mm) 16.3
Gearbox Type Spur
Physical Specification
Body Length(mm) 30.5
Frame Size(mm) Φ25
Lead Length(mm) 200
No. of Lead 4
Shaft Diameter(mm) Φ5
Shaft Length(mm) 10.4
