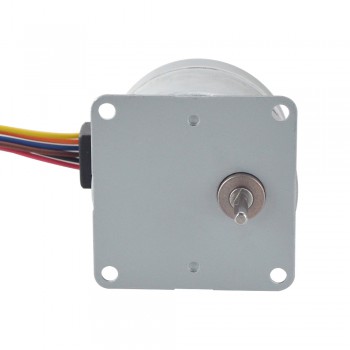

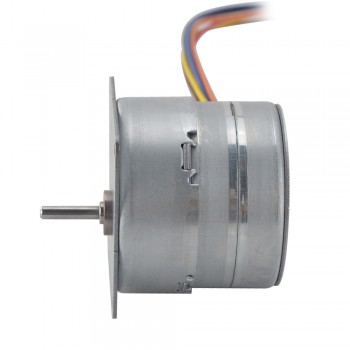

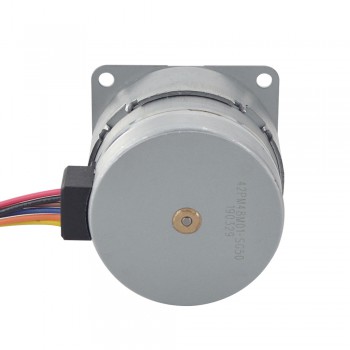

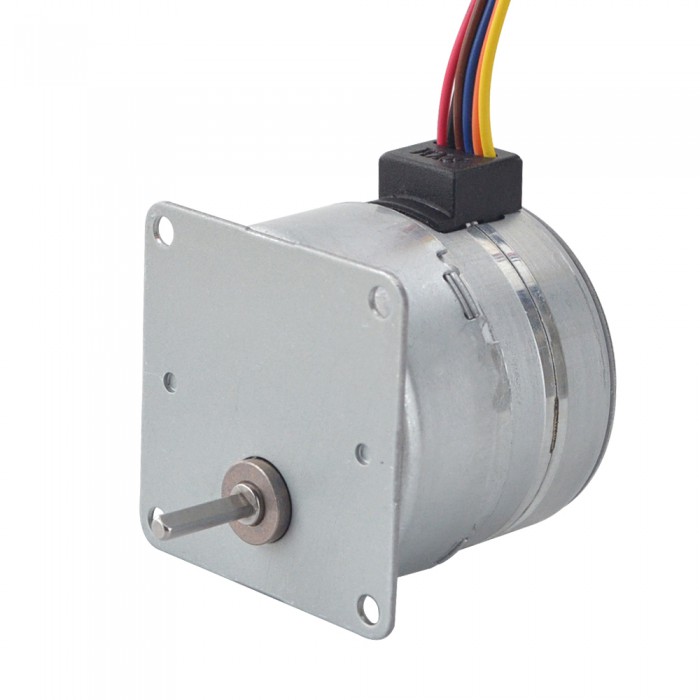

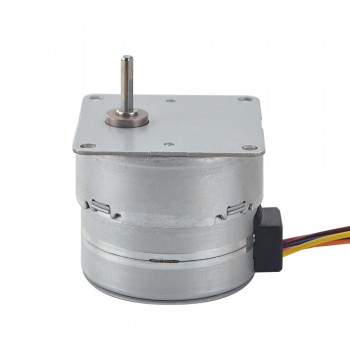

PM Geared Stepper Motor 4 Phase 0.15 Deg 98 Ncm 0.171A with 50:1 Spur gearbox Φ42x38mm
- Manuals and Documentation: Full Datasheet:
Special Offer in August 2026:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till August 31st, 2026
- Note:No coupon code needed, please place order directly!
Our Price:$26.48
Electrical Specification
Manufacturer Part Number: 42PM48M01-SG50
Motor Type: PM Stepper
Phase: 4
Step Angle: 0.15 deg
Rated Current/phase: 0.171 A
Holding Torque: 98 Ncm(138.807 oz.in)
Phase Resistance: 70 ± 7% ohms(25 ℃)
Inductance: 54 mH ± 20%
Physical Specification
Frame Size: Φ42 mm
Body Length: 38 mm
Gearbox Length: 16 mm
Shaft Diameter: Φ3 mm
Shaft Length: 16 mm
Gearbox Type: Spur
Gear Ratio: 50

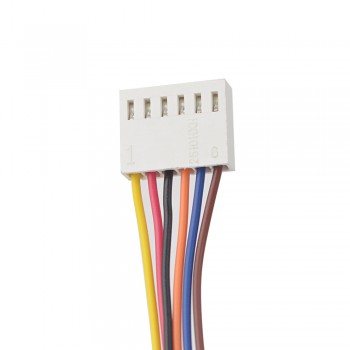

Number of Leads: 6 with connector 2510CS-6Y
Lead Length: 340 mm
Weight: 197.4 g
Connection
| A+ | O+ | A- | B+ | O- | B- |
| YEL | BRN | BLK | ORG | BRN | RED |
| Electrical Specification | |
|---|---|
| Holding Torque (oz.in) | 138.807 |
| Inductance(mH) | 54 |
| Phase Resistance(ohm) | 70 |
| Rated Current (A) | 0.171 |
| Step Angle(°) | 0.15 |
| No. of Phase | 4 |
| Holding Torque(mN.m) | 980 |
| Gearbox Specification | |
| Gear Ratio | 50 |
| Gearbox Length(mm) | 16 |
| Gearbox Type | Spur |
| Physical Specification | |
| Body Length(mm) | 38 |
| Frame Size(mm) | Φ42 |
| Lead Length(mm) | 340 |
| No. of Lead | 6 |
| Shaft Diameter(mm) | Φ3 |
| Shaft Length(mm) | 16 |
