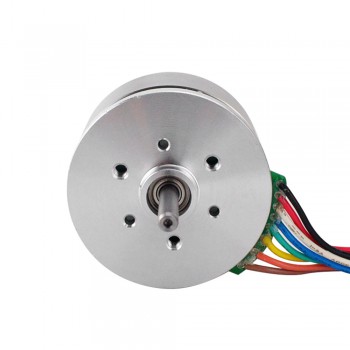

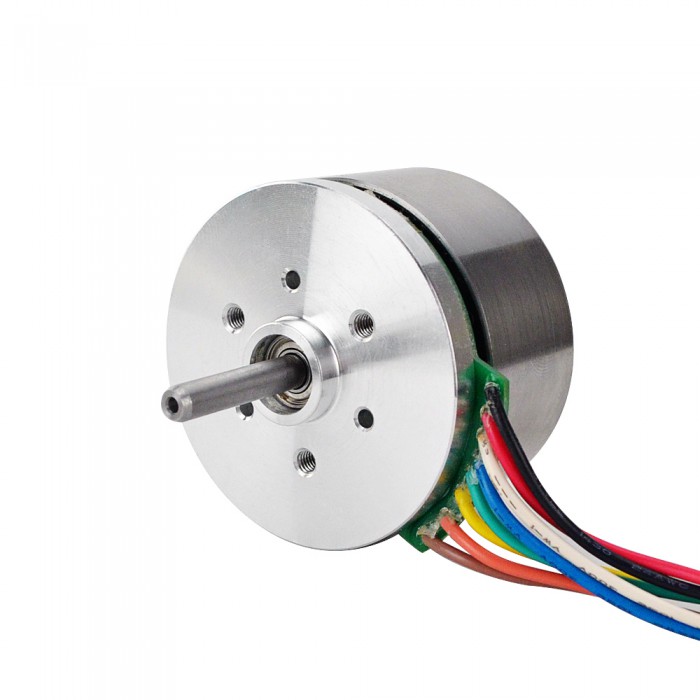

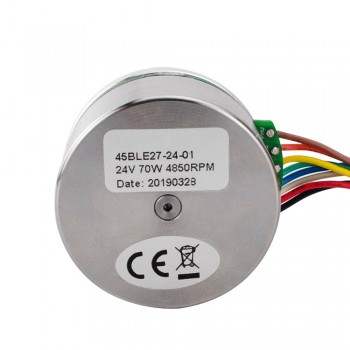

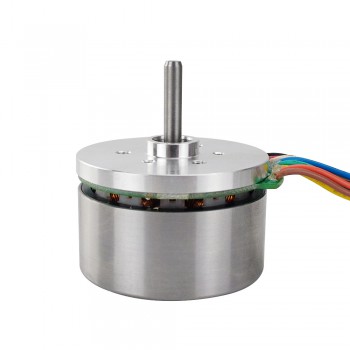

External Rotor Motor 24V 4850RPM 0.13Nm 70W 3.6A Ф43.2x27mm Brushless DC Flat Motor
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
Electrical Specification
Manufacturer Part Number: 45BLE27-24-01
Phase: 3
Poles: 16
Resistance/Line: 0.56±0.1 ohms@20℃
Inductance/Line: 0.27±0.1 mH@1kHz
Rated Voltage: 24 VDC
No Load Speed: 6100±10% RPM
No Load Current: 0.5 A
Rated Torque: 130 mN.m
Rated Speed: 4850 RPM
Rated Current: 3.6 A
Rated Power: 70 W
Back EMF Constant: 2.75 Vrms/kRPM
Torque Constant: 37.2 mN.m/A
Rotor Inertia: 181 g.cm2
Temperature Rise: Less than 80k
Insulation Class: B 130 ℃
Dielectric Strength: 500 VAC 1MIN
Insulation Resistance: 100 MOhm @500VDC
Ambient Temperature: -25 ~ +50 ℃
Physical Specification
Frame Size: Φ43.2 mm
Body Length: 27 mm
Shaft Diameter: Φ4 mm
Shaft Length: 20.6 mm
Number of Leads: 8
Lead Length: 300 mmMin.
Sensor: Hall Sensor
Weight: 150 g
Connection
|
U
|
V
|
W
|
GND
|
2
|
1
|
3
|
VHall
|
|
Orange
|
Brown
|
Yellow
|
Black
|
Green
|
Blue
|
White
|
Red
|
Resources
Full Datasheet: 45BLE27-24-01.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| BLDC Motor Specification | |
|---|---|
| Insulation Class | B 130 ℃ |
| Rated Current(A) | 3.6 |
| Rated Power(W) | 70 |
| Rated Torque(Nm) | 0.13 |
| Rated Voltage(V) | 24 |
| Phase | 3 |
| Poles | 16 |
| Physical Specification | |
| Body Length(mm) | 27 |
| Frame Size(mm) | Φ43.2 |
| No. of Lead | 8 |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 20.6 |
| Weight(g) | 150 |
