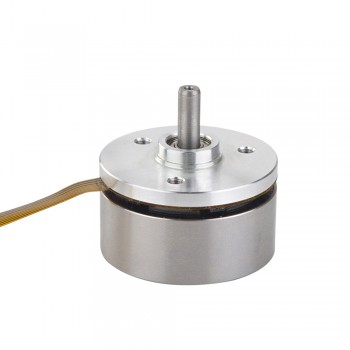

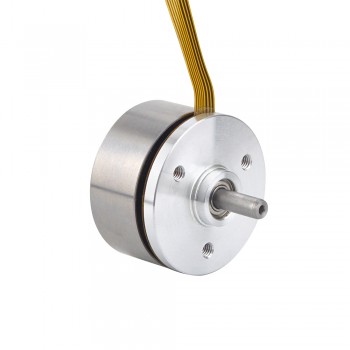

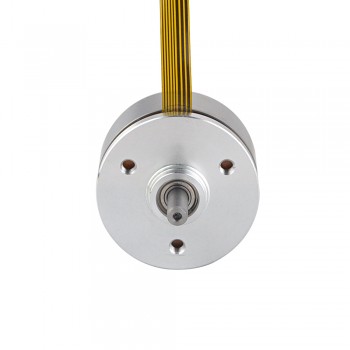

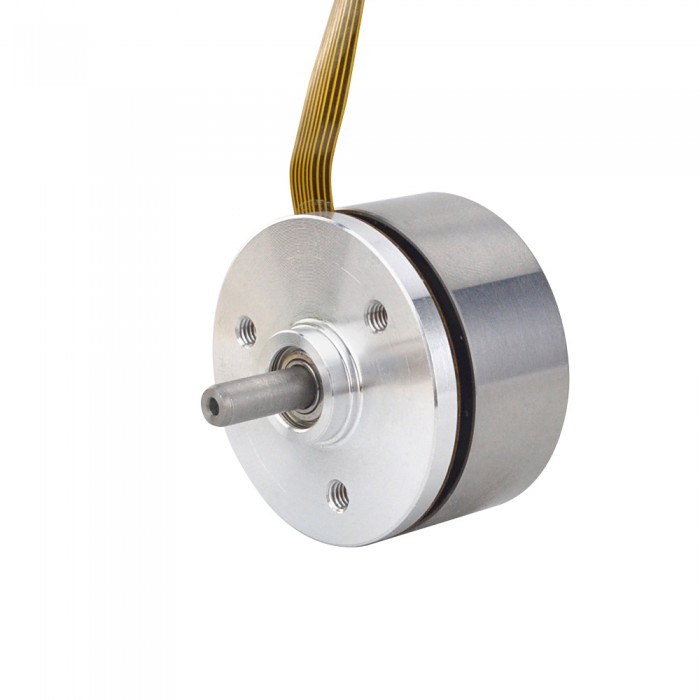

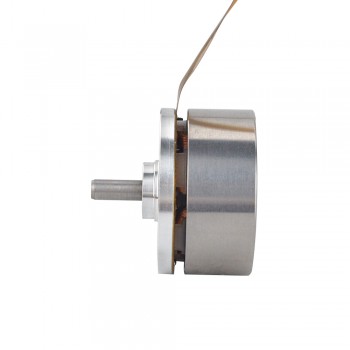

External Rotor Motor 24V 2760RPM 0.0253Nm 7W 0.5A Ф32x17.5mm Brushless DC Flat Motor
- Manuals and Documentation: Full Datasheet:
This 32 mm BLDC motor delivers 25.3 mN·m at 2760 rpm on 24 V, draws 0.5 A, and includes Hall sensors with a 4 mm shaft.
Electrical Specification

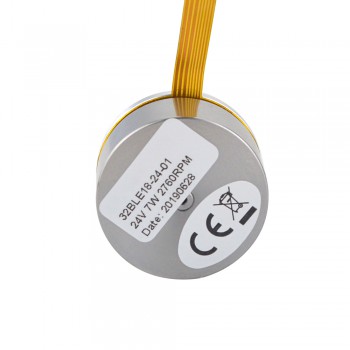

Manufacturer Part Number: 32BLE18-24-01
Phase: 3
Poles: 8
Resistance/Line: 13.7±10% ohms@20℃
Inductance/Line: 7.73±20% mH@1kHz
Rated Voltage: 24 VDC
No Load Speed: 4530±10% RPM
No Load Current: 0.3 A
Rated Torque: 25.3 mN.m
Rated Speed: 2760 RPM
Rated Current: 0.5 A
Rated Power: 7 W
Back EMF Constant: 3.75 Vrms/kRPM
Torque Constant: 50 mN.m/A
Rotor Inertia: 35 g.cm2
Temperature Rise: Less than 80 ℃
Insulation Class: B 130 ℃
Dielectric Strength: 500 VAC 1MIN
Insulation Resistance: 100 MOhm @500VDC
Ambient Temperature: -25 ~ +50 ℃
Physical Specification
Frame Size: Φ32 mm
Body Length: 17.5 mm
Shaft Diameter: Φ4 mm
Shaft Length: 13.8 mm
Number of Leads: 8
Lead Length: 92.5 mm
Sensor: Hall Sensor
Weight: 50g
Connection
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
|
Vcc
|
Hall C
|
Hall A
|
Hall B
|
GND
|
W
|
V
|
U
|
| BLDC Motor Specification | |
|---|---|
| Insulation Class | B 130 ℃ |
| Body Length(mm) | 17.5 |
| Rated Current(A) | 0.5 |
| Rated Power(W) | 7 |
| Rated Torque(Nm) | 0.0253 |
| Rated Voltage(V) | 24 |
| Phase | 3 |
| Poles | 8 |
| Physical Specification | |
| Frame Size(mm) | Φ32 |
| No. of Lead | 8 |
| Shaft Diameter(mm) | Φ4 |
| Shaft Length(mm) | 13.8 |
| Weight(g) | 50 |
