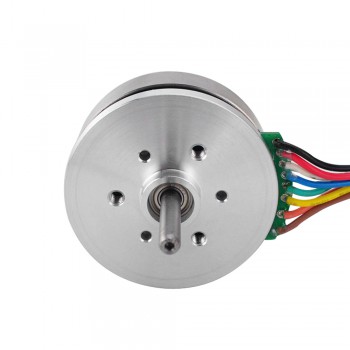

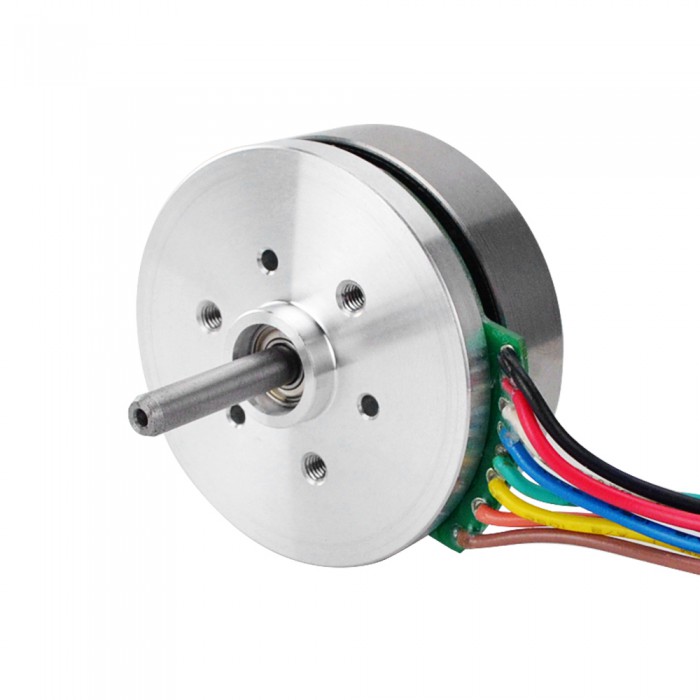

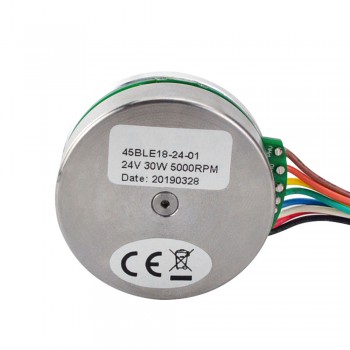

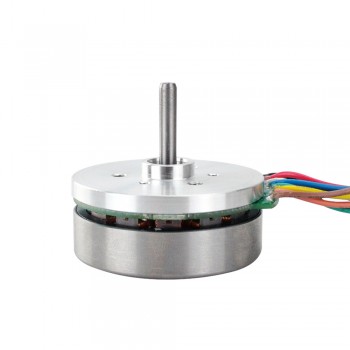

External Rotor Motor 24V 5000RPM 0.05Nm 30W 1.6A Ф43.2x18mm

NO.:45BLE18-24-01
Review: Post a review
Black Friday Special Offer 2020:
  • 6% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid Till 3rd December, 2020
Latest price:$97.60
Buy It Now:$75.07
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$75.07 $75.07 $75.07 $75.07
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 45BLE18-24-01
  • Phase: 3
  • Poles: 16
  • Resistance/Line: 1.42±10% ohms@20℃
  • Inductance/Line: 0.6±20% mH@1kHz
  • Rated Voltage: 24 VDC
  • No Load Speed: 6500±10% RPM
  • No Load Current: 0.5 A
  • Rated Torque: 50 mN.m
  • Rated Speed: 5000 RPM
  • Rated Current: 1.6 A
  • Rated Power: 30 W
  • Back EMF Constant: 2.61 Vrms/kRPM
  • Torque Constant: 35.3 mN.m/A
  • Rotor Inertia: 99 g.cm2
  • Temperature Rise: Less than 80k
  • Insulation Class: B 130 ℃
  • Dielectric Strength: 500 VAC 1MIN
  • Insulation Resistance: 100 MOhm @500VDC
  • Ambient Temperature: -25 ~ +50 ℃

Physical Specification

  • Frame Size: Φ43.2 mm
  • Body Length: 18 mm
  • Shaft Diameter: Φ4 mm
  • Shaft Length: 20.6 mm
  • Number of Leads: 8
  • Lead Length: 300 mmMin.
  • Sensor: Hall Sensor
  • Weight: 80 g

Connection

U
V
W
GND
2
1
3
VHall
Orange
Brown
Yellow
Black
Green
Blue
White
Red



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: External Rotor Motor 24V 2760RPM 0.0253Nm 7W 0.5A Ф32x17.5mm
Next: External Rotor Motor 24V 5250RPM 0.084Nm 50W 2.6A Ф43.2x21.6mm
BLDC Motor Specification
Insulation Class B 130 ℃
Rated Current(A) 1.6
Rated Power(W) 30 W
Rated Torque(Nm) 0.05
Rated Voltage(V) 24
Phase 3
Poles 16
Physical Specification
Body Length(mm) 18
Frame Size(mm) Φ43.2
No. of Lead 8
Shaft Diameter(mm) Φ4
Shaft Length(mm) 20.6
Weight(g) 80
