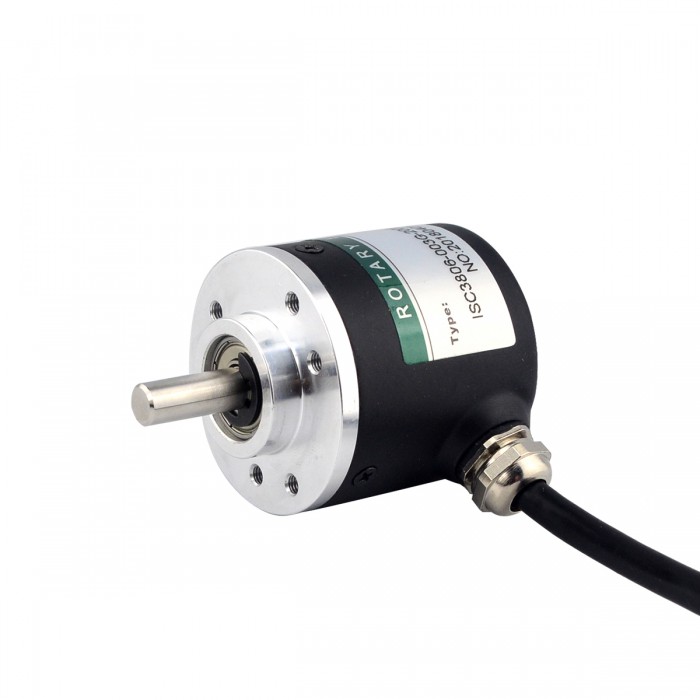

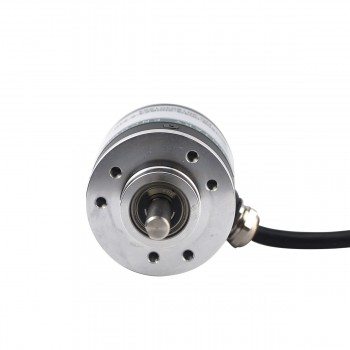

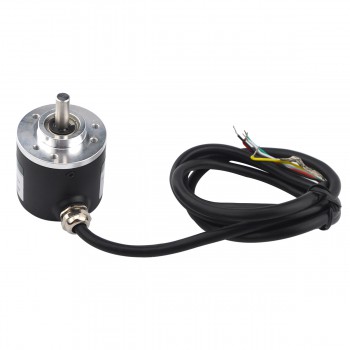

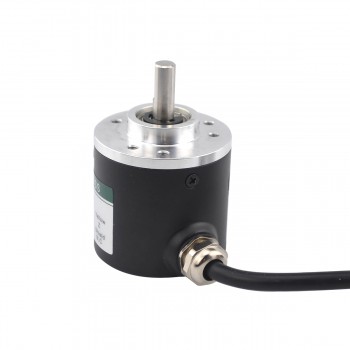

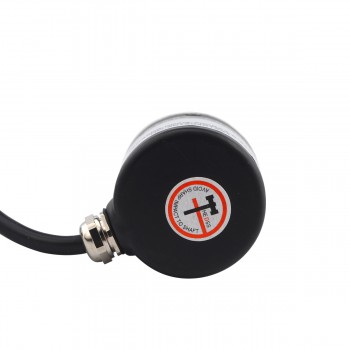

200 CPR Incremental Stepper Motor Rotary Encoder ABZ 3-Channel 6mm Solid Shaft ISC3806
Special Offer in December 2023:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till December 7th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$58.76
Encoder Specification
- Output Circuit Type: Push-Pull (Single-Ended)
- Controlled By: Encoder Interface
- Encoder Resolution: 200 CPR
- Output Signal Channels: 3
Electrical Specification
- Supply Voltage Min: 5 VDC
- Supply Voltage Max: 24 VDC
- Output Current: ≤60 mA
- Output High Voltage: ≥2.5 V
- Output Low Voltage: ≤0.3 V
- Output Frequency Max: 100 KHZ
Physical Specification
- Shaft Diameter: 6 mm
- Operating Temperature Min: -25 ℃
- Operating Temperature Max: 85 ℃
- Cable Length: 500 mm
Resources
- ISC3806 Encoder Manual: ISC3806.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Encoder Specification | |
|---|---|
| Output Current(mA) | ≤60 |
| Output Frequency | 0.1 |
| Output Signal Channels | 3 Channels |
| Rated Voltage(V) | 5 - 24 |
| Resolution(CPR) | 200 |
