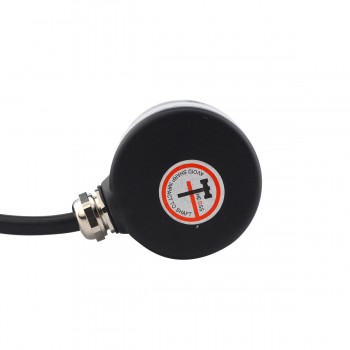

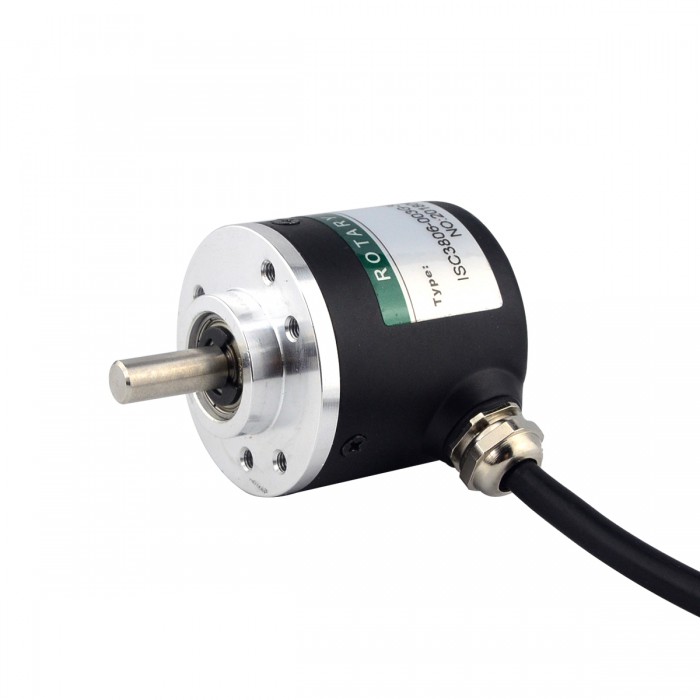

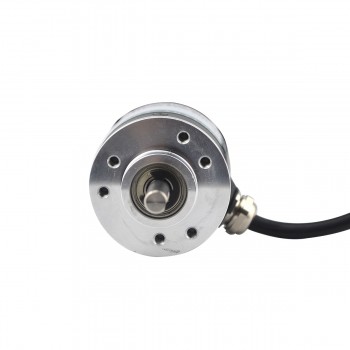

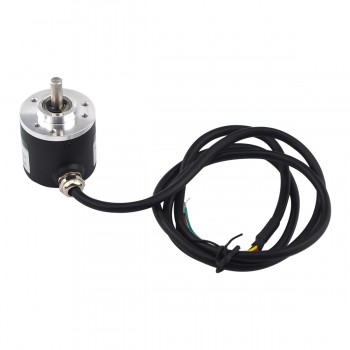

360 CPR Incremental Stepper Motor Rotary Encoder ABZ 3-Channel 6mm Solid Shaft ISC3806
China National Day Special Offer:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till October 7th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$58.76
Encoder Specification
Output Circuit Type: Push-Pull (Single-Ended)
Controlled By: Encoder Interface
Encoder Resolution: 360 CPR
Output Signal Channels: 3
Electrical Specification
Supply Voltage Min: 5 VDC
Supply Voltage Max: 24 VDC
Output Current: ≤60 mA
Output High Voltage: ≥2.5 V
Output Low Voltage: ≤0.3 V
Output Frequency Max: 100 KHZ
Physical Specification
Shaft Diameter: 6 mm
Operating Temperature Min: -25 ℃
Operating Temperature Max: 85 ℃
Cable Length: 500 mm
Resources
ISC3806 Encoder Manual: ISC3806.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Encoder Specification | |
|---|---|
| Output Current(mA) | ≤60 |
| Rated Voltage(V) | 5 - 24 |
| Resolution(CPR) | 360 |
