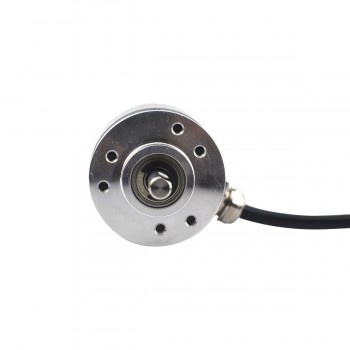

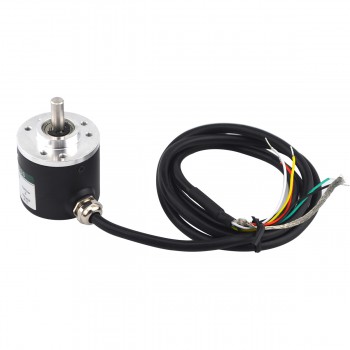

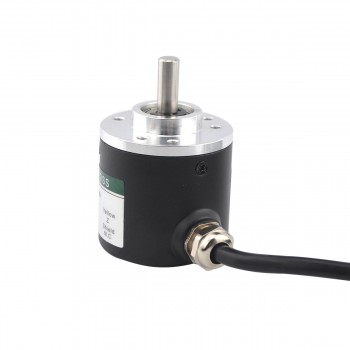

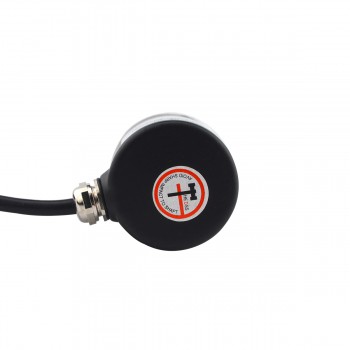

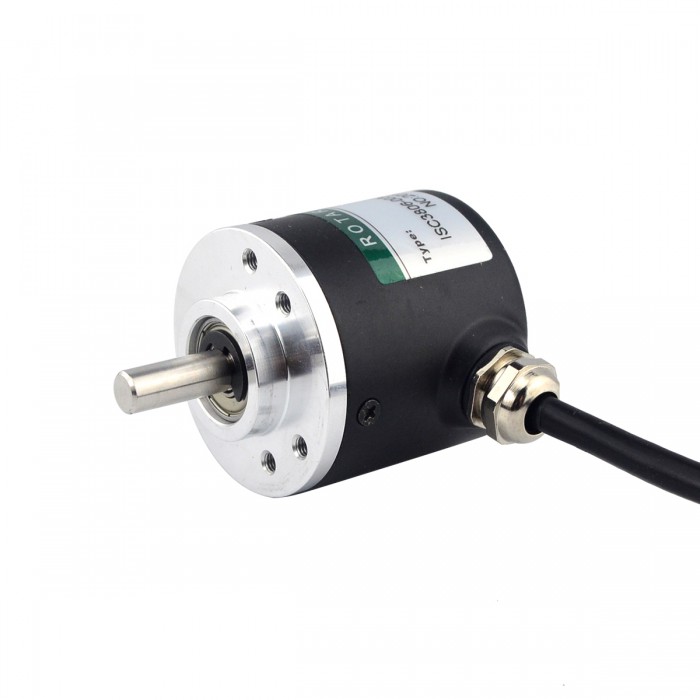

500 CPR Incremental Stepper Motor Rotary Encoder ABZ 3-Channel 6mm Solid Shaft ISC3806
- Manuals and Documentation: ISC3806 Encoder Manual:
Special Offer in July 2026:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till July 31th, 2026
- Note:No coupon code needed, please place order directly!
Our Price:$60.78
Incremental encoder with push-pull single-ended output, 3 channels, 500 CPR resolution, 5–24 VDC supply, max output frequency 100 kHz, 6 mm shaft diameter, operating temperature -25 to 85 °C, 500 mm cable length.
Encoder Specification
Output Circuit Type: Push-Pull (Single-Ended)
Controlled By: Encoder Interface
Encoder Resolution: 500 CPR
Output Signal Channels: 3
Electrical Specification
Supply Voltage Min: 5 VDC
Supply Voltage Max: 24 VDC
Output Current: ≤60 mA
Output High Voltage: ≥2.5 V
Output Low Voltage: ≤0.3 V
Output Frequency Max: 100 KHZ
Physical Specification
Shaft Diameter: 6 mm
Operating Temperature Min: -25 ℃
Operating Temperature Max: 85 ℃
Cable Length: 500 mm
| Encoder Specification | |
|---|---|
| Output Current(mA) | ≤60 |
| Output Signal Channels | 3 Channels |
| Rated Voltage(V) | 5 - 24 |
| Resolution(CPR) | 500 |
| Output Frequency | 0.1 |
