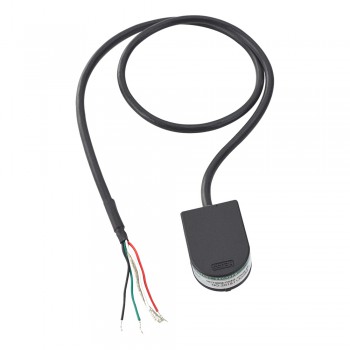

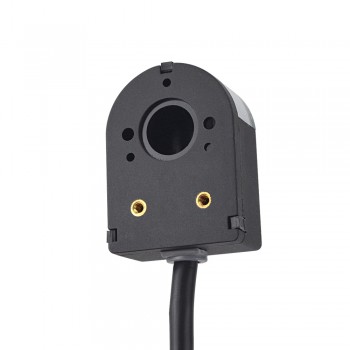

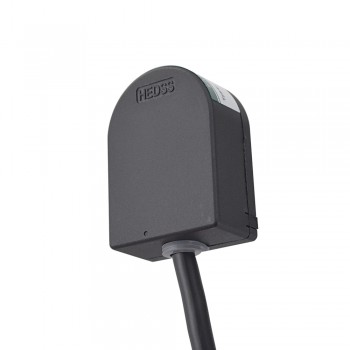

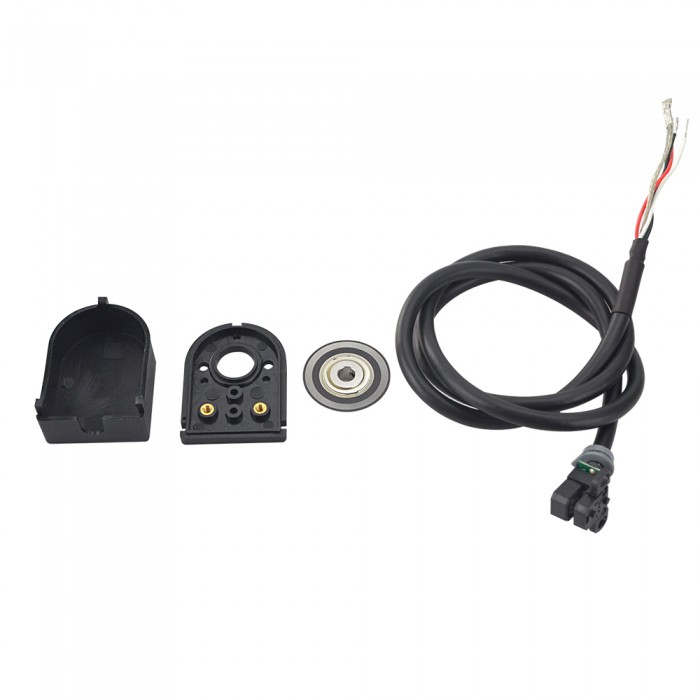

1000 CPR Optical Stepper Motor Rotary Encoder AB 2-Channel ID 5mm with Shielded Cable HKT30
- Manuals and Documentation: HKT30-32 Encoder Manual:
Our Price:$54.40
This incremental encoder provides push-pull single-ended output with 2 channels and 1000 CPR resolution, operates at 5 VDC supply, max output frequency 100 kHz, 5 mm shaft diameter, operating temperature -25 to 85 °C, and 0.5 m cable length.
Encoder Specification
Output Circuit Type: Push-Pull (Single-Ended)
Controlled By: Encoder Interface
Encoder Resolution: 1000 CPR
Output Signal Channels: 2
Electrical Specification
Supply Voltage Min: 5 VDC
Supply Voltage Max: 5 VDC
Output Current: ≤5 mA
Output High Voltage: ≥85% VCC
Output Low Voltage: ≤0.3V
Output Frequency Max: 100 KHZ
Physical Specification
Shaft Diameter: 5 mm
Operating Temperature Min: -25 ℃
Operating Temperature Max: 85 ℃
Cable Length: 0.5 m
| Encoder Specification | |
|---|---|
| Output Current(mA) | ≤5 |
| Output Frequency | 0.1 |
| Output Signal Channels | 2 Channels |
| Rated Voltage(V) | 5 |
| Resolution(CPR) | 1000 |
