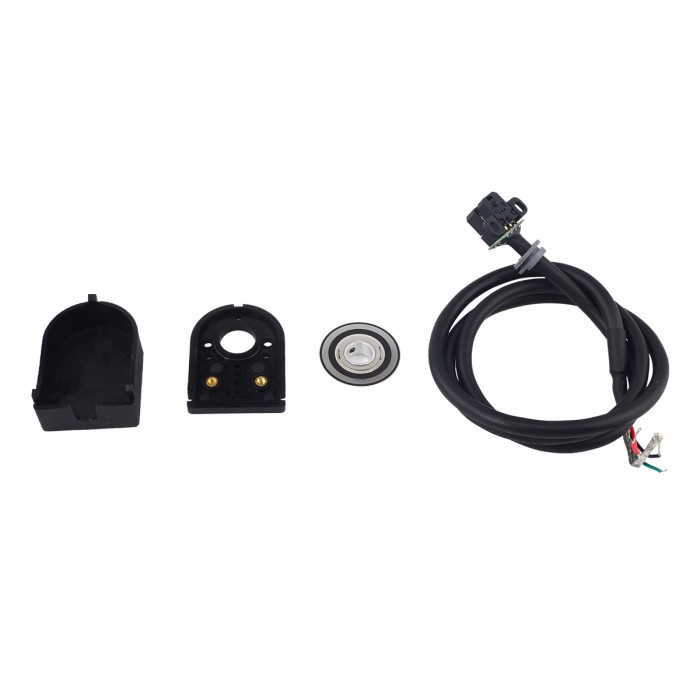

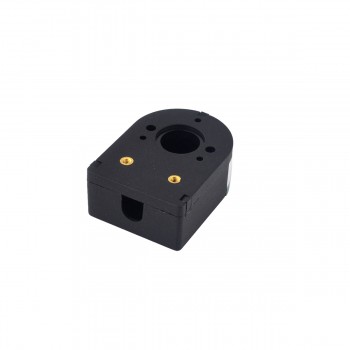

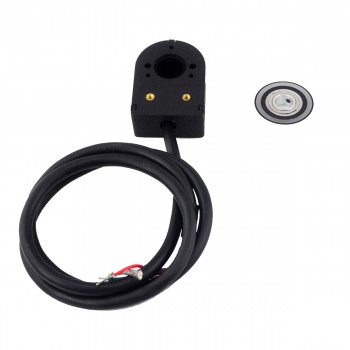

1000 CPR Optical Stepper Motor Rotary Encoder AB 2-Channel ID 8mm with Shielded Cable HKT30
Encoder Specification
Output Circuit Type: Push-Pull (Single-Ended)
Controlled By: Encoder Interface
Encoder Resolution: 1000 CPR
Output Signal Channels: 2
Electrical Specification
Supply Voltage Min: 5 VDC
Supply Voltage Max: 5 VDC
Output Current: ≤5 mA
Output High Voltage: ≥85% VCC
Output Low Voltage: ≤0.3V
Output Frequency Max: 100 KHZ
Physical Specification
Shaft Diameter: 8 mm
Operating Temperature Min: -25 ℃
Operating Temperature Max: 85 ℃
Cable Length: 0.5 m
Resources
HKT30-32 Encoder Manual: HKT30-32.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Encoder Specification | |
|---|---|
| Output Current(mA) | ≤5 |
| Output Frequency | 0.1 |
| Output Signal Channels | 2 Channels |
| Rated Voltage(V) | 5 |
| Resolution(CPR) | 1000 |
