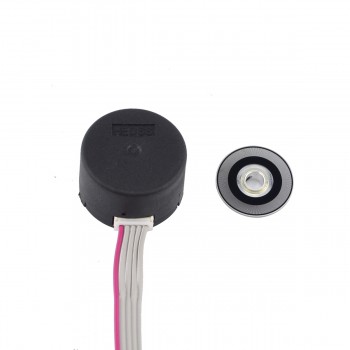

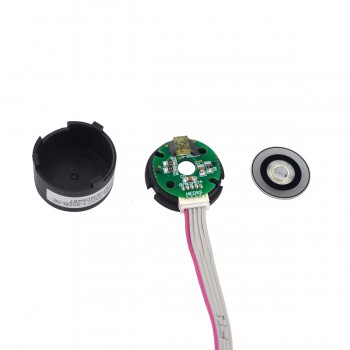

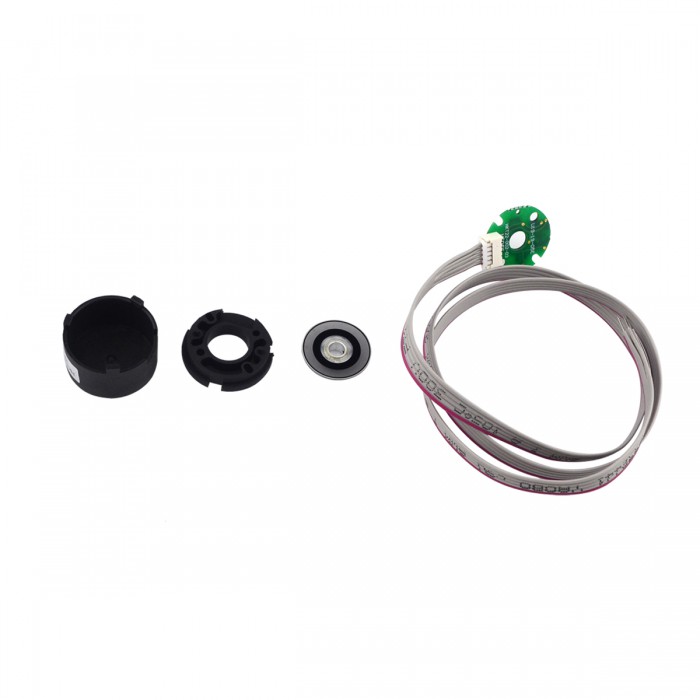

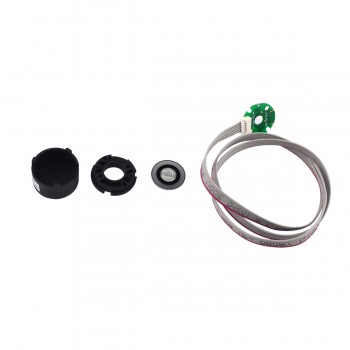

300 CPR Optical Stepper Motor Rotary Encoder AB 2-Channel ID 4mm for Stepper Motor HKT22
Special Offer in December 2023:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till December 7th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$25.86
Encoder Specification
- Output Circuit Type: Push-Pull (Single-Ended)
- Controlled By: Encoder Interface
- Encoder Resolution: 300 CPR
- Output Signal Channels: 2
Electrical Specification
- Supply Voltage Min: 5 VDC
- Supply Voltage Max: 5 VDC
- Output Current: ≤12 mA
- Output High Voltage: ≥3.4 VDC
- Output Low Voltage: ≤0.3VDC
- Output Frequency Max: 30 KHZ
Physical Specification
- Shaft Diameter: 4 mm
- Operating Temperature Min: -10 ℃
- Operating Temperature Max: 85 ℃
- Cable Length: 0.5 m
Resources
- HKT22 Encoder Manual: HKT22.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Encoder Specification | |
|---|---|
| Output Current(mA) | ≤12 |
| Output Frequency | 0.03 |
| Output Signal Channels | 2 Channels |
| Rated Voltage(V) | 5 |
| Resolution(CPR) | 300 |
