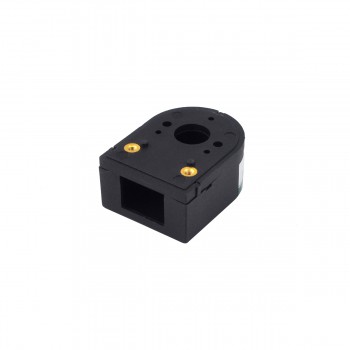

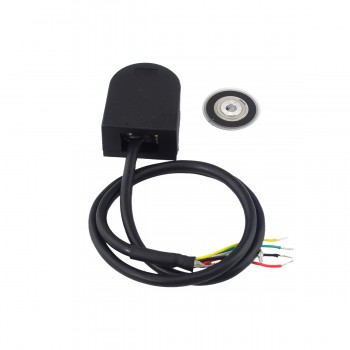

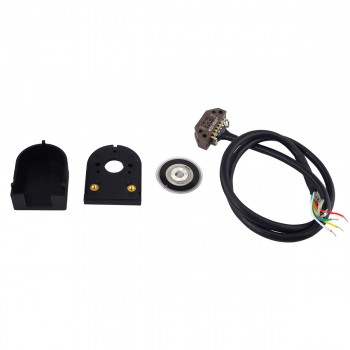

1000 CPR Optical Stepper Motor Rotary Encoder ABZ 3-Channel ID 5mm with Shielded Cable HKT32
- Manuals and Documentation: HKT30-32 Encoder Manual:
Special Offer in June 2026:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 30th, 2026
- Note:No coupon code needed, please place order directly!
Our Price:$68.84
This incremental encoder uses push-pull single-ended output with 3 channels and 1000 CPR resolution, operates at 5 VDC supply, max output frequency 100 kHz, 5 mm shaft, operating temperature -25 to 85 °C.
Encoder Specification
Output Circuit Type: Push-Pull (Single-Ended)
Controlled By: Encoder Interface
Encoder Resolution: 1000 CPR
Output Signal Channels: 3
Electrical Specification
Supply Voltage Min: 5 VDC
Supply Voltage Max: 5 VDC
Output Current: ≤5 mA
Output High Voltage: ≥85% VCC
Output Low Voltage: ≤0.3V
Output Frequency Max: 100 KHZ
Physical Specification
Shaft Diameter: 5 mm
Operating Temperature Min: -25 ℃
Operating Temperature Max: 85 ℃
Cable Length: 0.5 m
| Encoder Specification | |
|---|---|
| Output Current(mA) | ≤5 |
| Output Frequency | 0.1 |
| Output Signal Channels | 3 channels |
| Rated Voltage(V) | 5 |
| Resolution(CPR) | 1000 |
